Lead-Free Soldering Station, 80 W, Electromagnetic Heating

About.

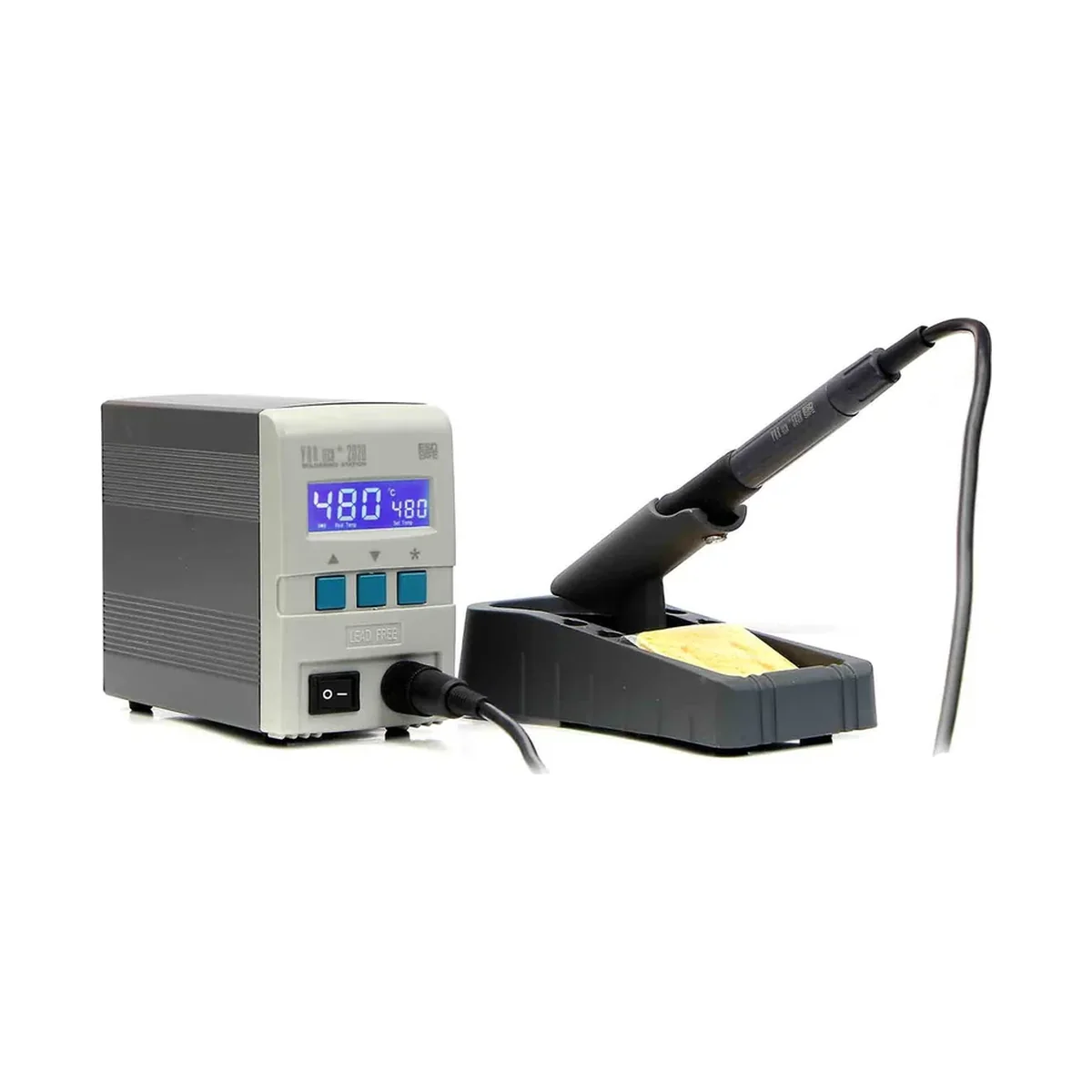

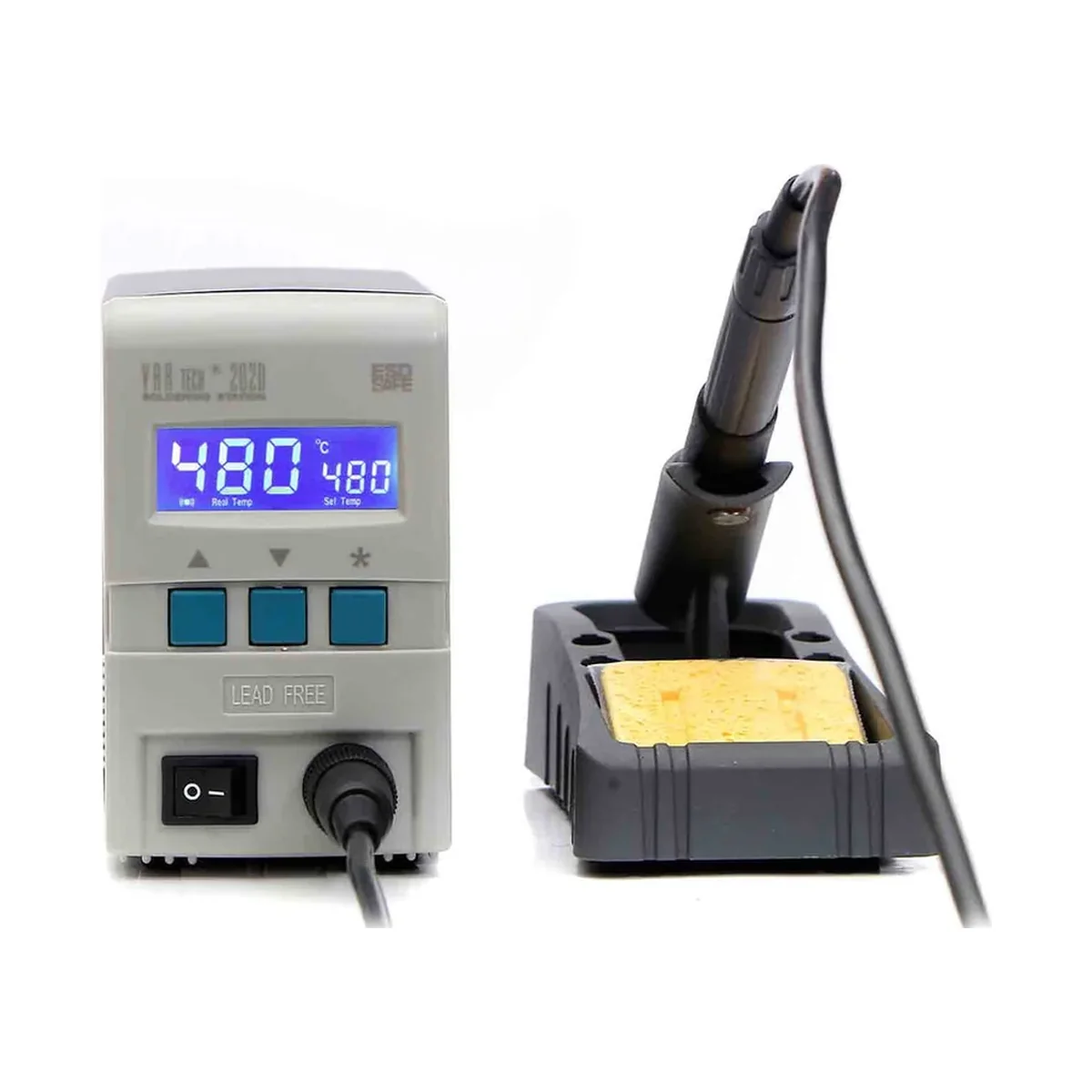

SOLDERING STATION Lead Free, 80 W / 36 V, Digital T/C, 80 ~ 480 °C Vartech 202D is an Intelligent Soldering station with the highest Accuracy and precision. Temperature adjustment from 80 °C to 480 °C, high temperature stability (±2 °C). Sensor at the tip which ensures high temperature accuracy & stability Professional soldering station with ESD safe design. Fast heating and rapid thermal recovery. Easy tip replacement PID temperature control. Easy, digital temperature calibration. Station parameters interlock by means of PIN code. LCD display. Auto sleeping and auto shut-off mode.

• Flagship Lead free Soldering station
• Digital Display & Temp., Control
• Electromagnetic Heating element
• Large power, Sensor closer to tip
• Very high accuracy
• Micro computer Digital PID temperature control
• Short circuit protection, Overheating protection, Overpowering protection
• Power output will not vary in case of voltage fluctuation
• Calibrate temperature digitally and easily
• Temperature warning facility with alarm

Specifications.

Temperature Range

80 ºC ~ 480 ºC

Temperature Stability

± 2 ºC (Stationary air, no load)

Output Voltage / Freq.

AC 36 V, 400 KHz

Max. Power

80 W

Tip to Ground Resistance

<2Ω

Tip to Ground Potential

< 2 mV

Heating element

Electromagnetic Element

Handle wire

1.4 Mtrs.

Handle Length (W/o Power cord)

180 mm

Unit’s Power Consumption

220 V, 90W

Max Ambient Temperature

40 ºC

Dimensions

15.5 * 7.8 * 12 cm

Weight

1.2 Kg Approx.
