30V / 5A (×2) + 5V / 3A Triple-Output Linear DC Regulated Power Supply

About.

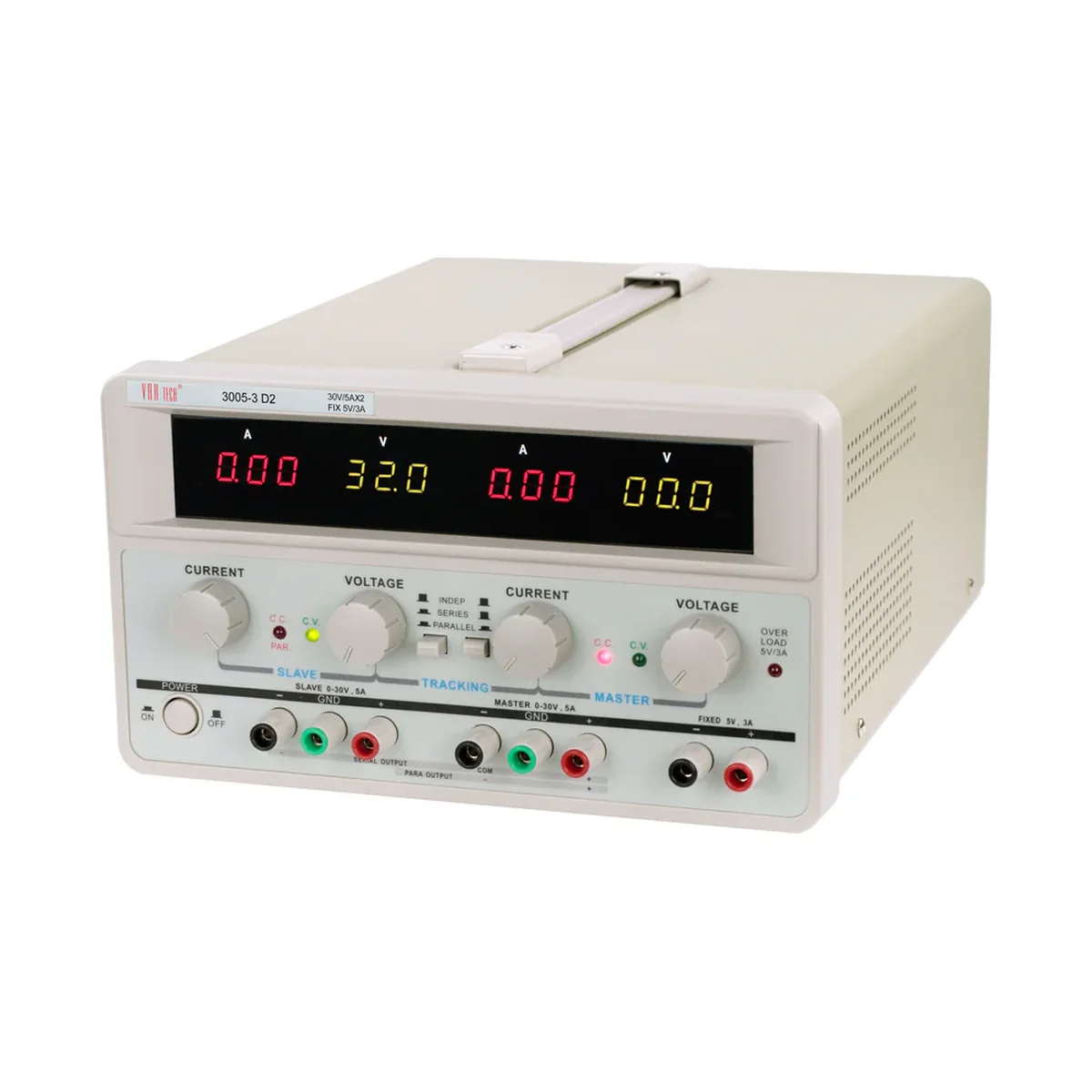

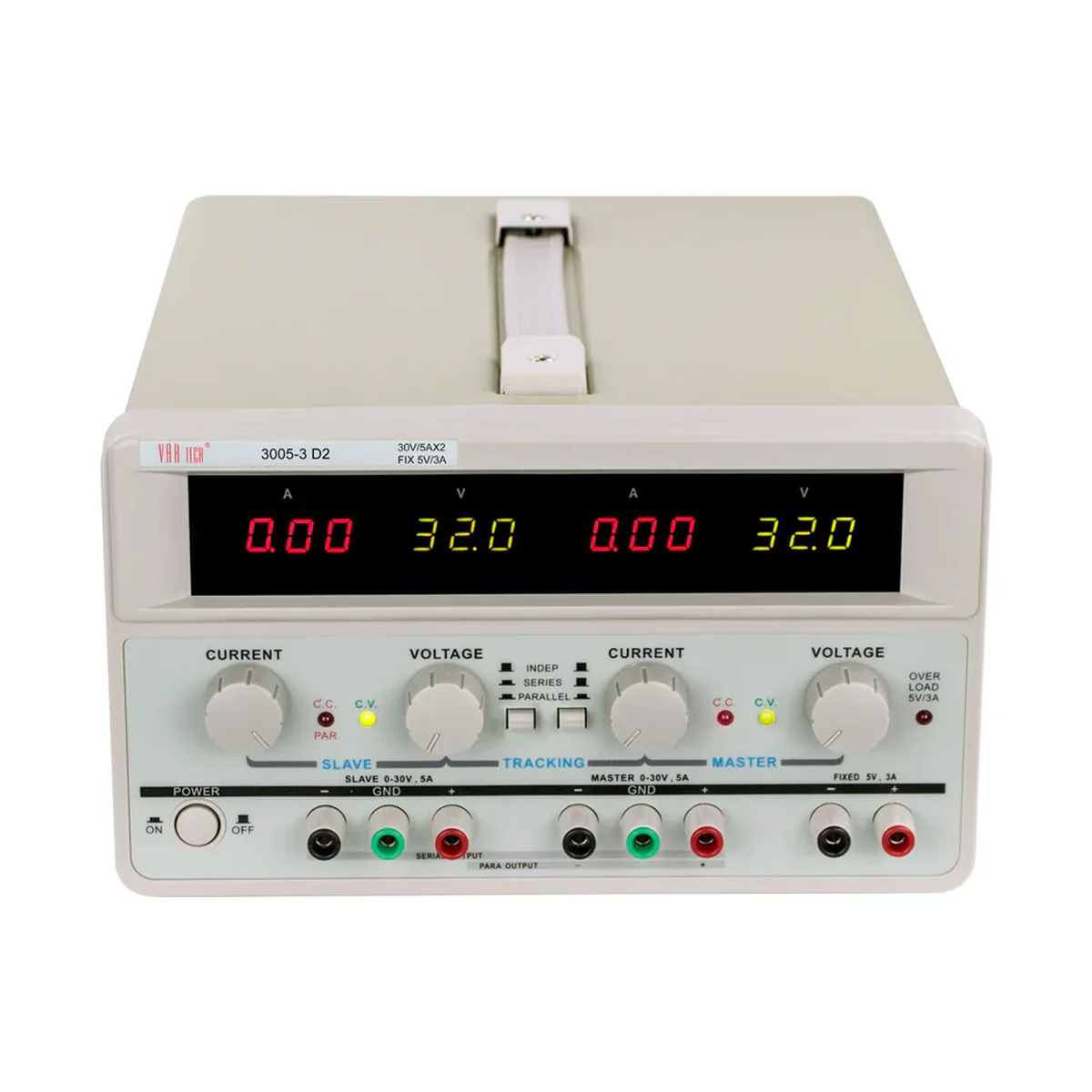

The Vartech 3005-3 D2 is a triple-output transformer-based linear DC regulated power supply with three independent channels: two fully variable 0–30 V / 0–5 A channels and one fixed 5 V / 3 A output. A 5-turn multiturn potentiometer provides precise voltage control on the variable channels. Outputs can be used independently, in series or in parallel. The unit features 4 LED DPMs, Output On/Off switch, and automatic CV/CC switching on the variable channels.

• 3 independent channels: 0–30 V / 0–5 A × 2 variable + 5 V / 3 A fixed
• 5-turn multiturn potentiometer for precise voltage control
• Independent, series and parallel operation of variable channels
• Linear (transformer-based) - heavy duty
• Auto CV/CC on variable channels
• 4 LED DPMs - V and I of 3-digit resolution
• Output On/Off switch

Specifications.

Variable Output (Ch 1 & 2)

0–30 V, 0–5 A × 2

Fixed Output

5 V, 3 A (1 channel)

Type

Linear (transformer-based), Triple output

CV Line Regulation

≤ 0.01 % + 3 mV

CV Load Regulation

≤ 0.01 % + 3 mV (I ≤ 3 A) | ≤ 0.02 % + 5 mV (I ≥ 3 A)

CC Line Regulation

≤ 0.2 % + 3 mA

CC Load Regulation

≤ 0.2 % + 3 mA (I ≤ 3 A) | ≤ 0.2 % + 5 mA (I ≥ 3 A)

Ripple & Noise (CV)

≤ 1 mV rms (I ≤ 3 A) | ≤ 2 mV rms (I ≥ 3 A)

Ripple & Noise (CC)

≤ 3 mA rms (I ≤ 3 A) | ≤ 6 mA rms (I ≥ 3 A)

Voltage Control

5-turn (multiturn) potentiometer for precise adjustment

Protection

Constant current, overload and reverse-polarity protection

Display

4 LED DPMs - V and I (3 digits each)

Indication Accuracy

± (1 % + 2 digits)

Power Supply

220 V ±10 %, 50 Hz ±2 Hz
