30V / 5A (×2) + 2.2–15V / 1A Quad-Output Linear DC Regulated Power Supply

About.

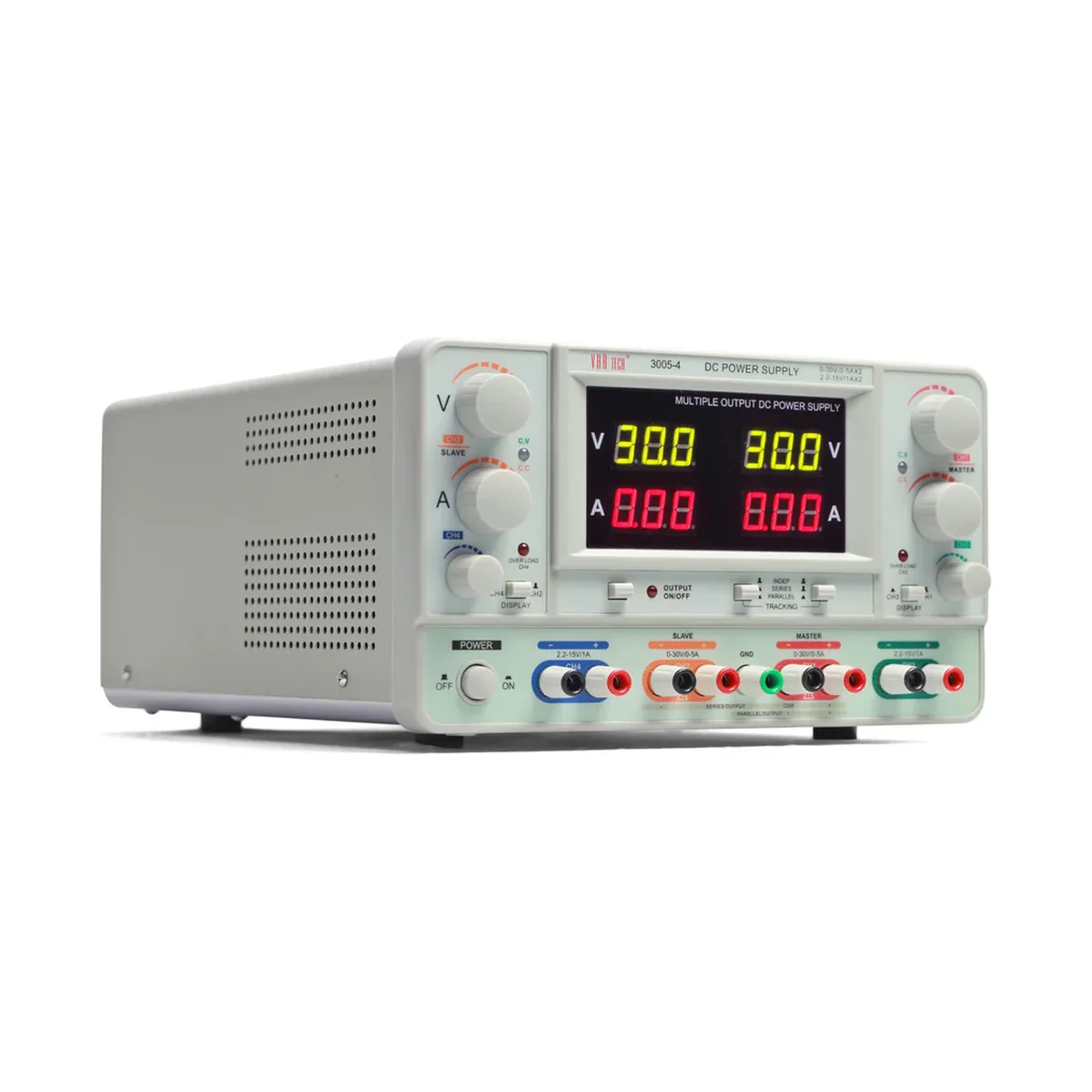

The Vartech 3005-4 is a quad-output transformer-based linear DC regulated power supply. It provides two fully variable channels (0–30 V / 0–5 A, Ch 1 & 2) and two auxiliary channels (2.2–15 V / 1 A, Ch 3 & 4). Four LED meters display V and I for the main variable channels. Preset voltage and current facility is included, along with Output On/Off switch. Designed for industrial and laboratory applications requiring multiple independent supply rails. Note: a lower-current variant (3003-4, 30 V / 3 A for Ch 1 & 2) is also available in the same chassis.

• 4 independent output channels
• Ch 1 & 2: 0–30 V / 0–5 A (fully variable)
• Ch 3 & 4: 2.2–15 V / 1 A (auxiliary variable)
• Preset V & I facility
• Linear (transformer-based) - heavy duty
• 4 LED DPMs for V and I of the main channels
• Output On/Off switch | Auto CV/CC

Specifications.

Ch 1 & 2 Output

0–30 V, 0–5 A (fully variable) × 2

Ch 3 & 4 Output

2.2–15 V, 1 A × 2

Type

Linear (transformer-based), Quad output

CV Line Reg (Ch 1 & 2)

≤ 0.01 % + 3 mV

CV Load Reg (Ch 1 & 2)

≤ 0.01 % + 3 mV (I ≤ 3 A) | ≤ 0.02 % + 5 mV (I > 3 A)

CC Line Reg (Ch 1 & 2)

≤ 0.2 % + 3 mA

CC Load Reg (Ch 1 & 2)

≤ 0.2 % + 3 mA (I ≤ 3 A) | ≤ 0.2 % + 5 mA (I > 3 A)

Ripple & Noise (Ch 1 & 2 CV)

≤ 1 mV rms (I ≤ 3 A) | ≤ 2 mV rms (I > 3 A)

Ripple & Noise (Ch 1 & 2 CC)

≤ 3 mA rms (I ≤ 3 A) | ≤ 6 mA rms (I > 3 A)

Load Reg / Ripple (Ch 3 & 4)

≤ 25 mV load regulation | ≤ 2 mV rms ripple

Protection

Overload and reverse-polarity protection

Display

4 LED DPMs - 3-digit resolution (V and I for Ch 1 & 2)

Display Resolution

100 mV / 10 mA

Display Accuracy (real)

± (1 % reading + 2 digits)
