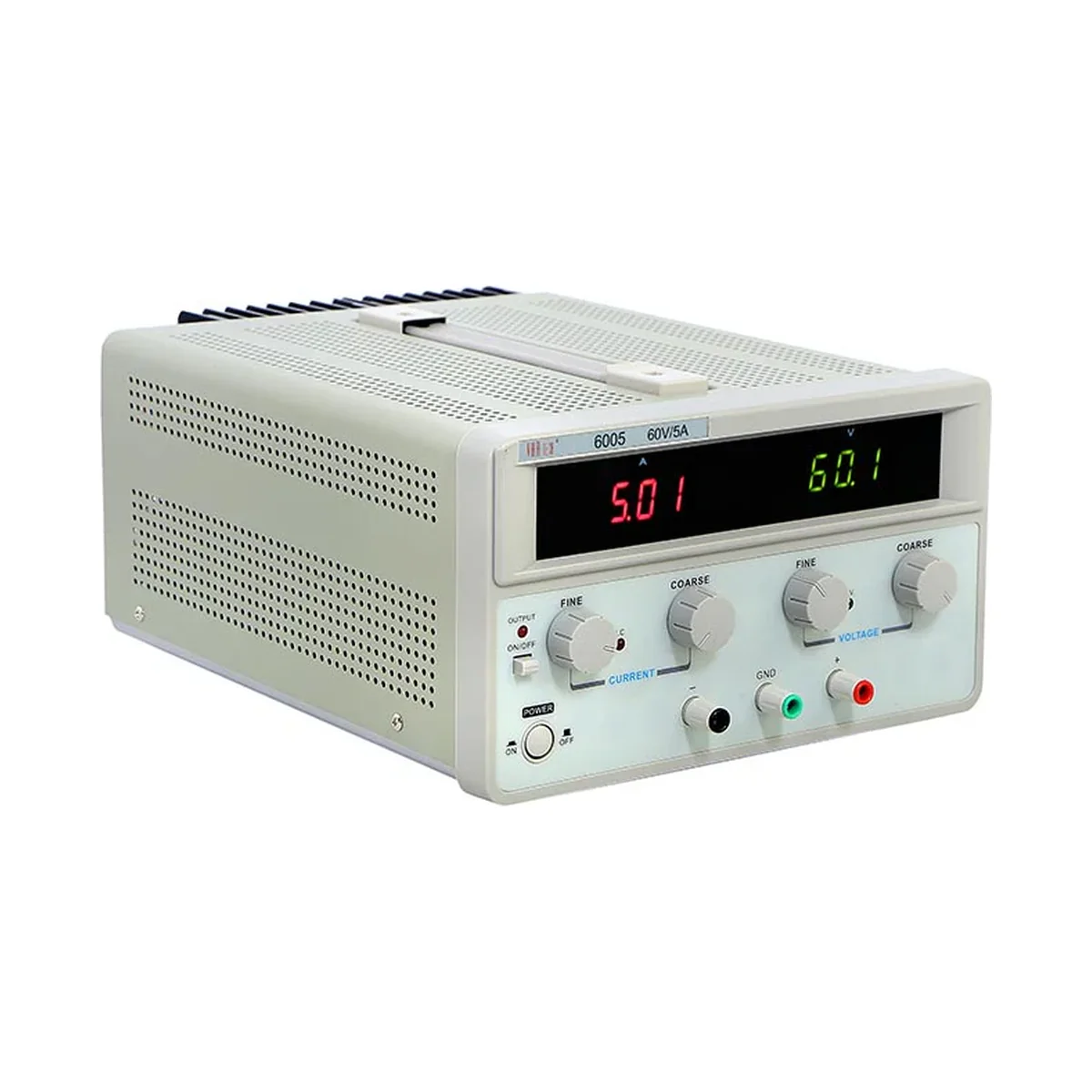

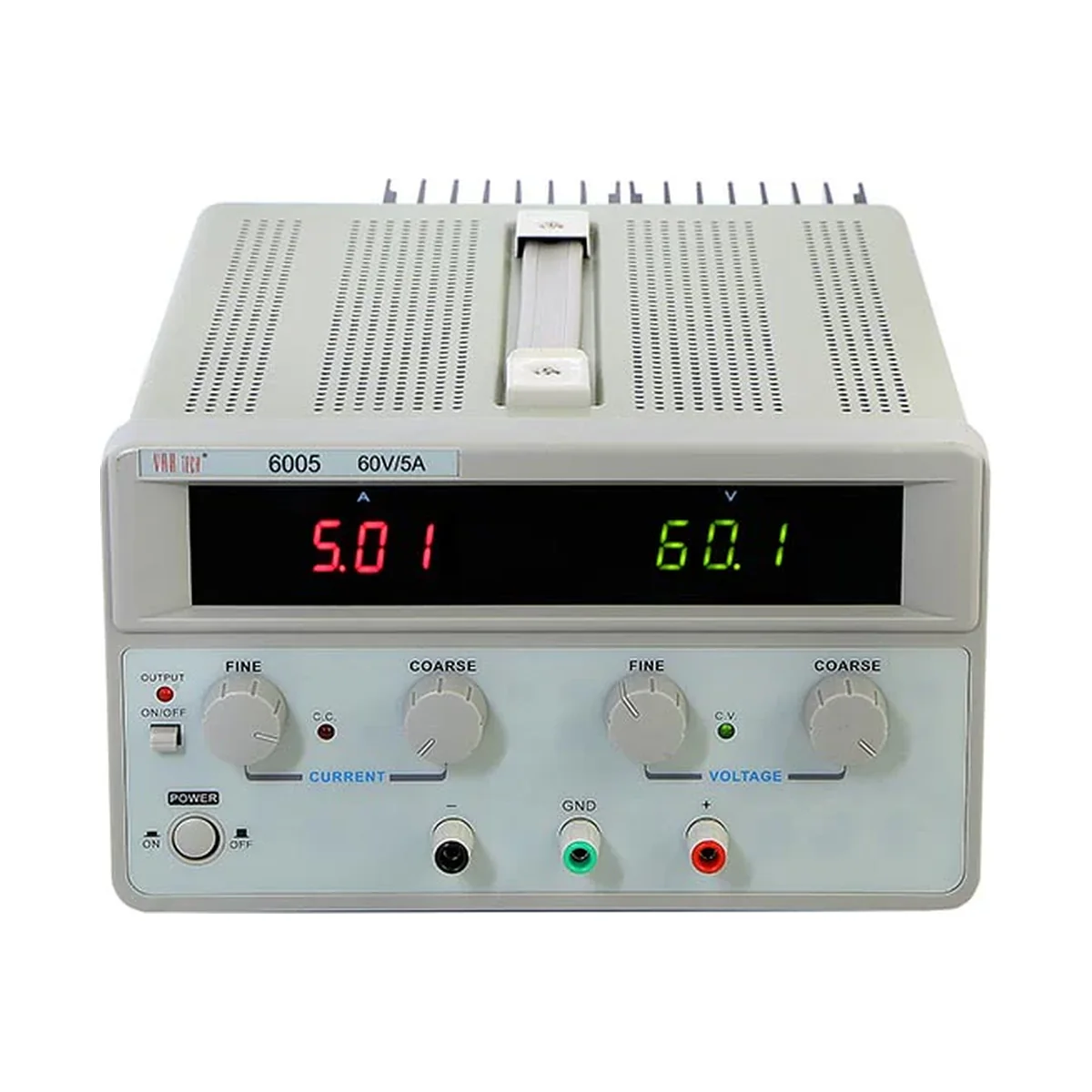

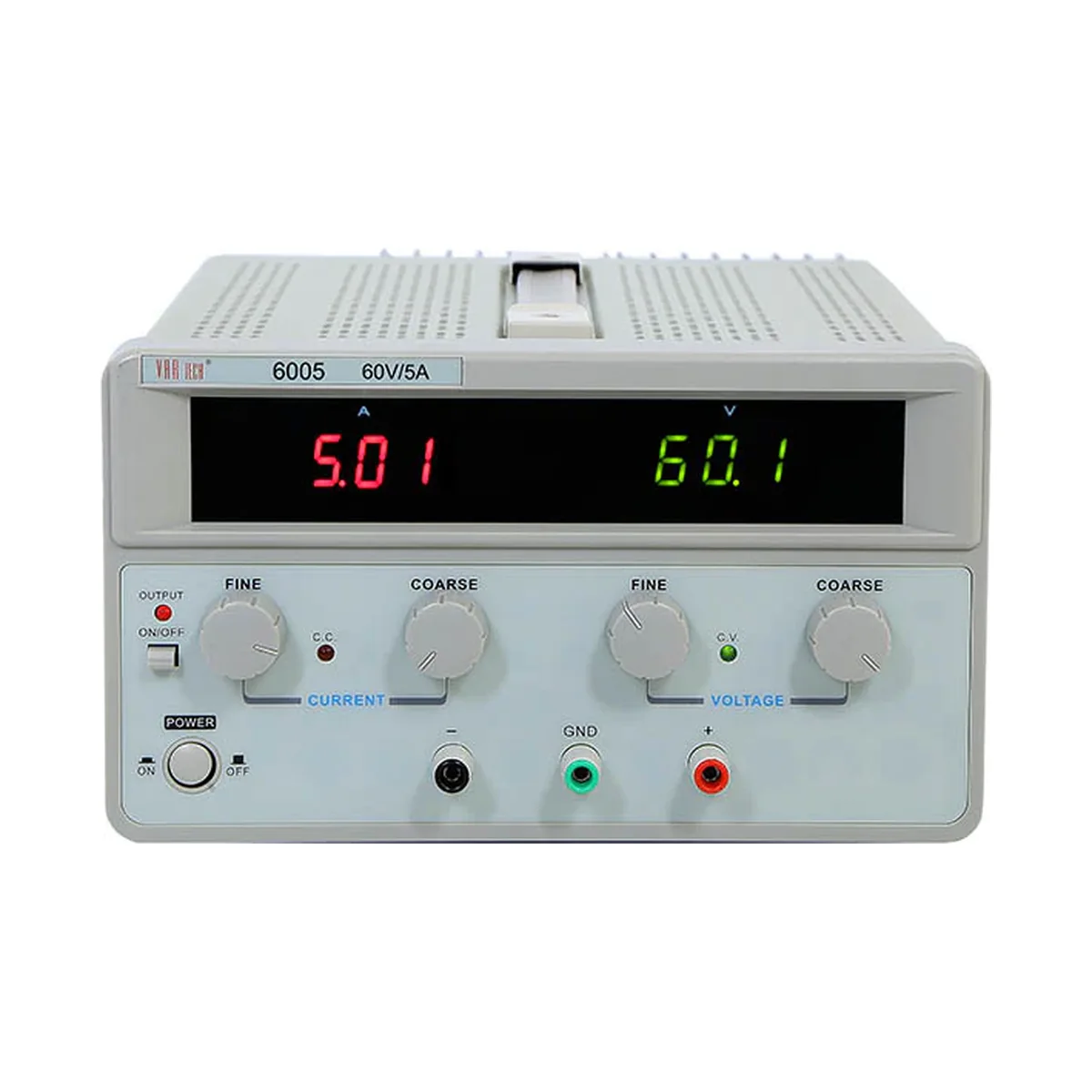

60V / 5A Heavy-Duty Linear DC Regulated Power Supply

About.

The Vartech 6005 is a heavy-duty single-output transformer-based linear DC regulated power supply rated at 0–60 V, 0–5 A. It provides a fully variable output with automatic CV/CC switching, LED displays for voltage and current, Output On/Off switch, and series/parallel connection capability - suitable for higher-voltage bench and industrial testing applications.

• 0–60 V, 0–5 A - single output, fully variable
• Linear (transformer-based) - heavy duty, very stable
• Automatic CV / CC mode switching
• 3-digit LED display for V and I
• Output On/Off switch
• Series / parallel connection capability
• Constant current and overload protection

Specifications.

Output Voltage

0–60 V (fully variable)

Output Current

0–5 A (fully variable)

Type

Linear (transformer-based), Single output, Heavy duty

CV Line Regulation

≤ 0.01 % + 5 mV

CV Load Regulation

≤ 0.02 % + 5 mV

CC Line Regulation

≤ 0.2 % + 3 mA

CC Load Regulation

≤ 0.2 % + 3 mA (I ≤ 3 A) | ≤ 0.2 % + 5 mA (I > 3 A)

Ripple & Noise (CV)

≤ 3 mV rms

Ripple & Noise (CC)

≤ 3 mA rms (I ≤ 3 A) | ≤ 10 mA rms (I > 3 A)

Display

2 × 3-digit LED (V and I)

Indication Accuracy

Voltage: ±1 % + 2 digits | Current: ±2 % + 2 digits

Protection

Constant current and overload protection

Power Supply

230 V ±10 %, 50 Hz ±2 Hz

Operating Environment

0–40 °C | RH < 80 %
