60V / 10A Heavy-Duty Linear DC Regulated Power Supply

About.

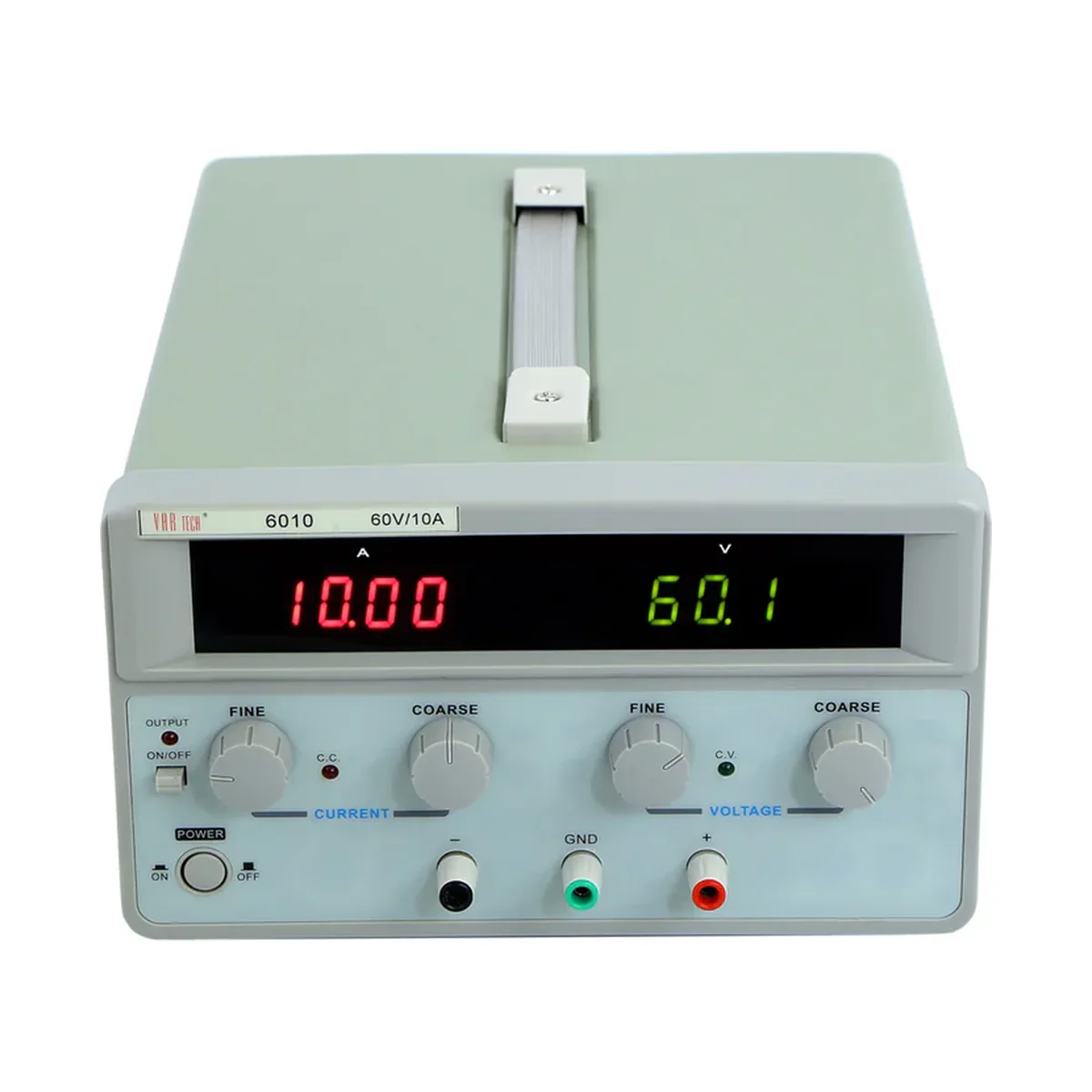

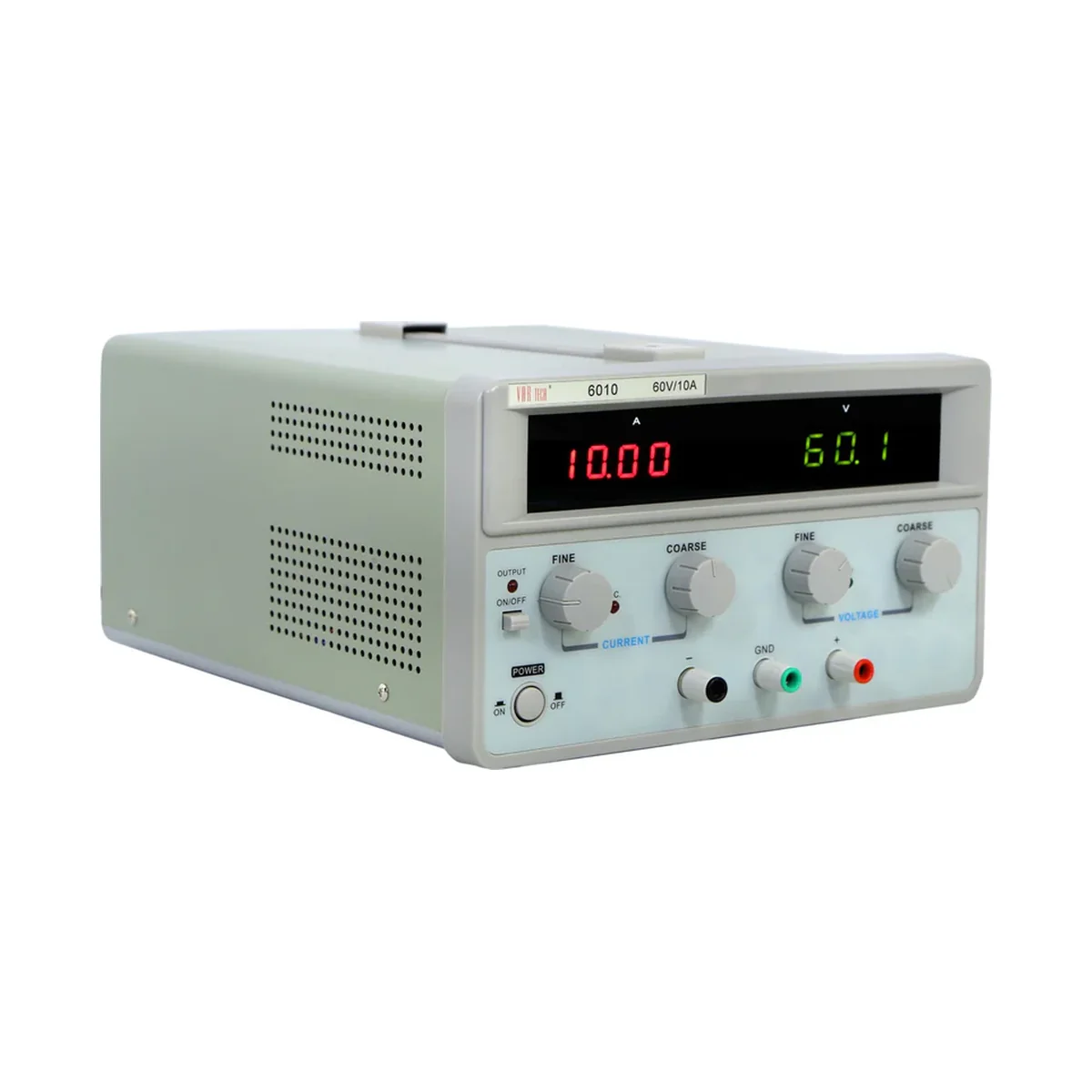

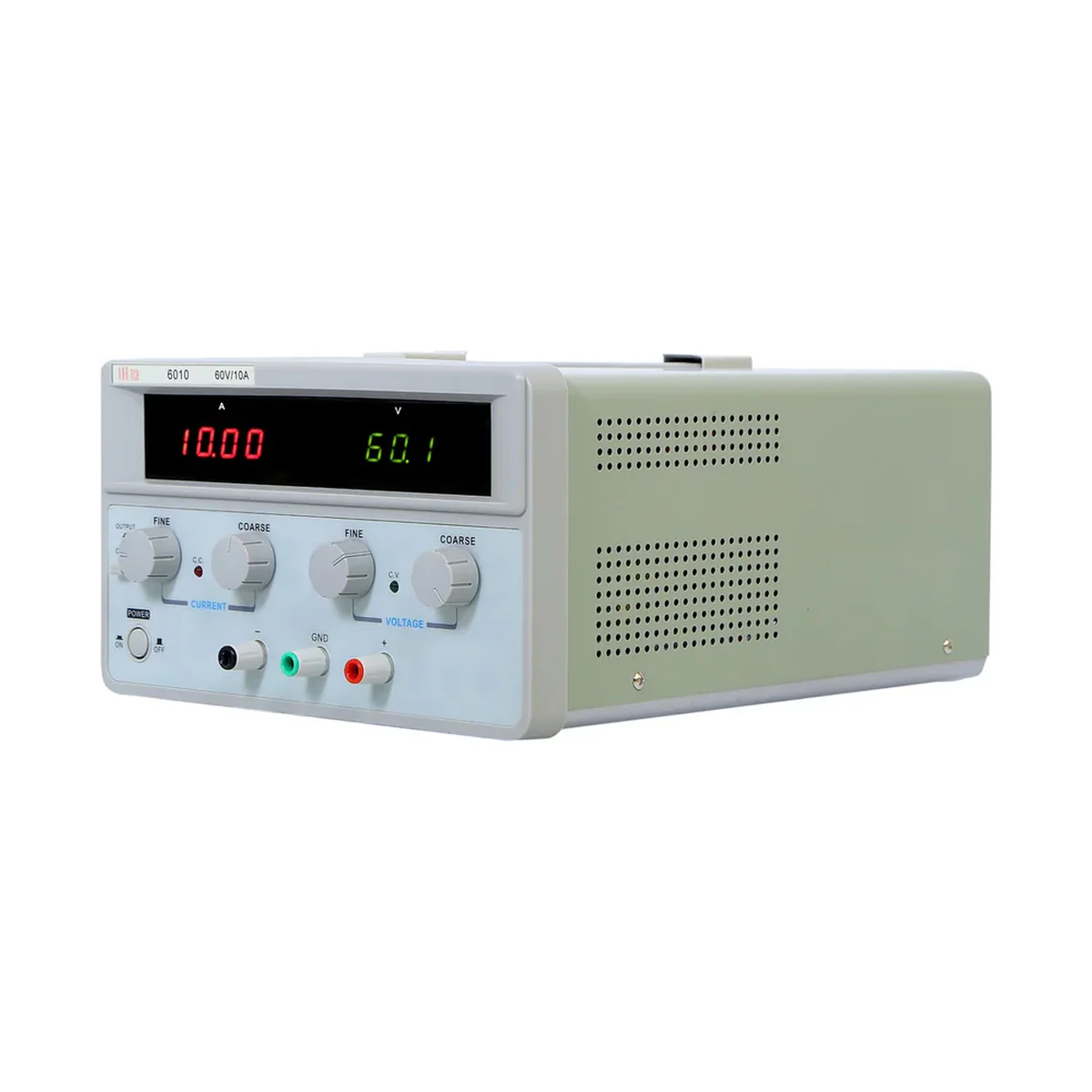

The Vartech 6010 is a heavy-duty single-output transformer-based linear DC regulated power supply rated at 0–60 V, 0–10 A. Like the 3020, it includes preset voltage and current facility in addition to the standard CV/CC, Output On/Off, and 4-digit ammeter LED display. Designed for higher-voltage, higher-current bench and industrial applications.

• 0–60 V, 0–10 A - single output, fully variable
• Linear (transformer-based) - heavy duty, very stable
• Preset V & I control facility
• Automatic CV / CC mode switching
• 4-digit ammeter LED display (3 digits for voltage)
• Output On/Off switch
• Constant current and overload protection

Specifications.

Output Voltage

0–60 V (fully variable)

Output Current

0–10 A (fully variable)

Type

Linear (transformer-based), Single output, Heavy duty

CV Line Regulation

≤ 0.01 % + 5 mV

CV Load Regulation

≤ 0.02 % + 5 mV

CC Line Regulation

≤ 0.2 % + 3 mA

CC Load Regulation

≤ 0.2 % + 3 mA (I ≤ 3 A) | ≤ 0.2 % + 5 mA (I > 3 A) | ≤ 0.2 % + 15 mA (I > 10 A)

Ripple & Noise (CV)

≤ 3 mV rms

Ripple & Noise (CC)

≤ 3 mA rms (I ≤ 3 A) | ≤ 10 mA rms (I > 3 A)

Preset V & I

Yes

Display

3-digit LED (V) + 4-digit LED (A)

Indication Accuracy

Voltage: ±1 % + 2 digits | Current: ±2 % + 2 digits

Protection

Constant current and overload protection

Power Supply

230 V ±10 %, 50 Hz ±2 Hz
