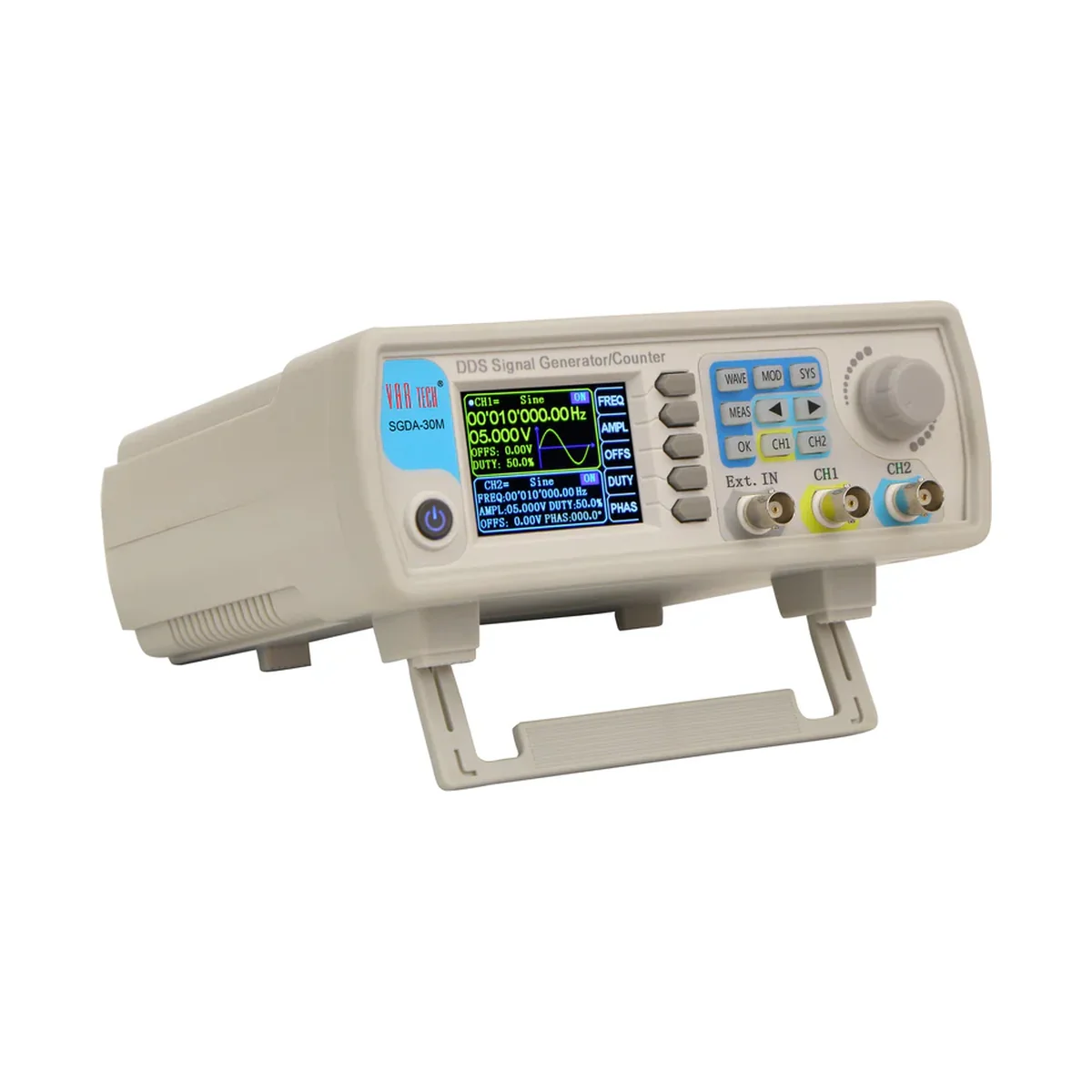

30 MHz Function Generator

About.

SIGNAL GENERATOR (DDS, FUNCTION), 30 MHz Dual Channel, 2.4” TFT Color LCD Display, with USB Interface. Accessory : Power Amplifier Modules

• Frequency Output (0.01μHz Resolution) : 30 MHz - Sine, 25 MHz - Square & Triangle. 6 MHz - Pulse, TTL & Arbitrary.
• Waveforms : Sine, Square, Pulse (Adjustable Duty Cycle, Precise Adjustment of Pulse Width & Period), Triangular Wave, Partial Sine Wave, CMOS Wave, DC Level (Set DC Amplitude By Adjusting Offset), Half Wave, Full Wave, Positive Staircase Wave, Anti-Ladder Wave, Noise Wave, Exponential Rise, Exponential Drop, Multisonic Wave, Symplectic Pulse, Lorenz Pulse.
• 60 Arbitrary Waveforms
• Square Wave & Triangle Wave Frequency : ≤ 10MHz : 2mVpp ~ 20Vpp. Frequency ≥ 10MHz : 2mVpp ~ 5Vpp.
• Freq. Counter (Multi function) : Frequency Range : 1 Hz ~ 100 MHz.
• SPA-100K (100 KHz)
• SPA-10M (10 MHz)

Specifications.

Output Channels

2 Channels

Sampling Rate

266 MSa/S (Vertical Resolution - 14 Bits)

Amplitude

Sine Wave Frequency : ≤ 10MHz : 2mVpp ~ 20Vpp. Frequency ≥ 10MHz : 2mVpp ~ 10Vpp.

Other Functions / Facilities

D.C. Offset, Sweep (Lin. / Log.), Burst & Settings Store/Recall

Display

2.4” TFT LCD

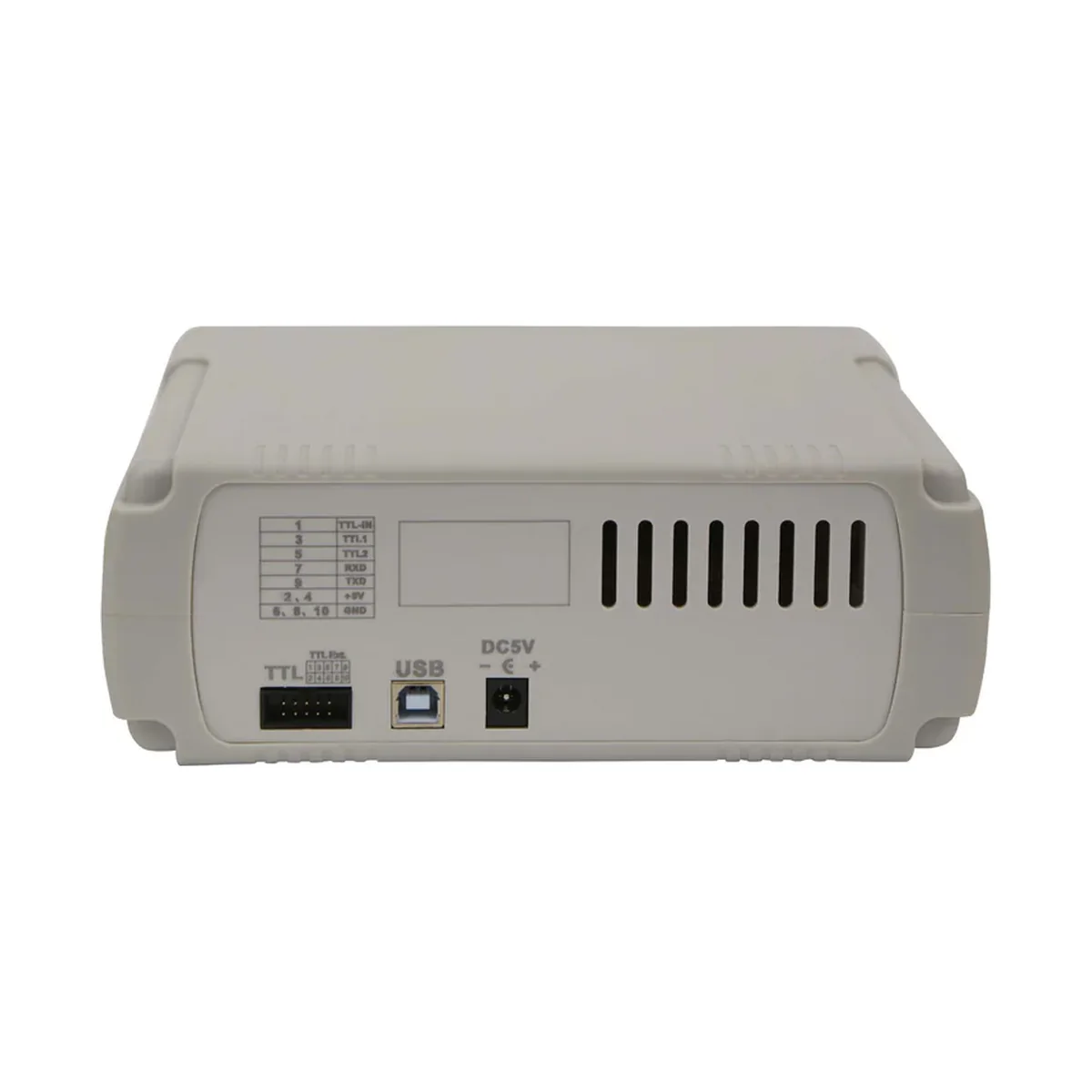

Interface

USB & TTL Ext
