150 MHz DSO with Built-in 25 MHz Arbitrary Waveform Generator

About.

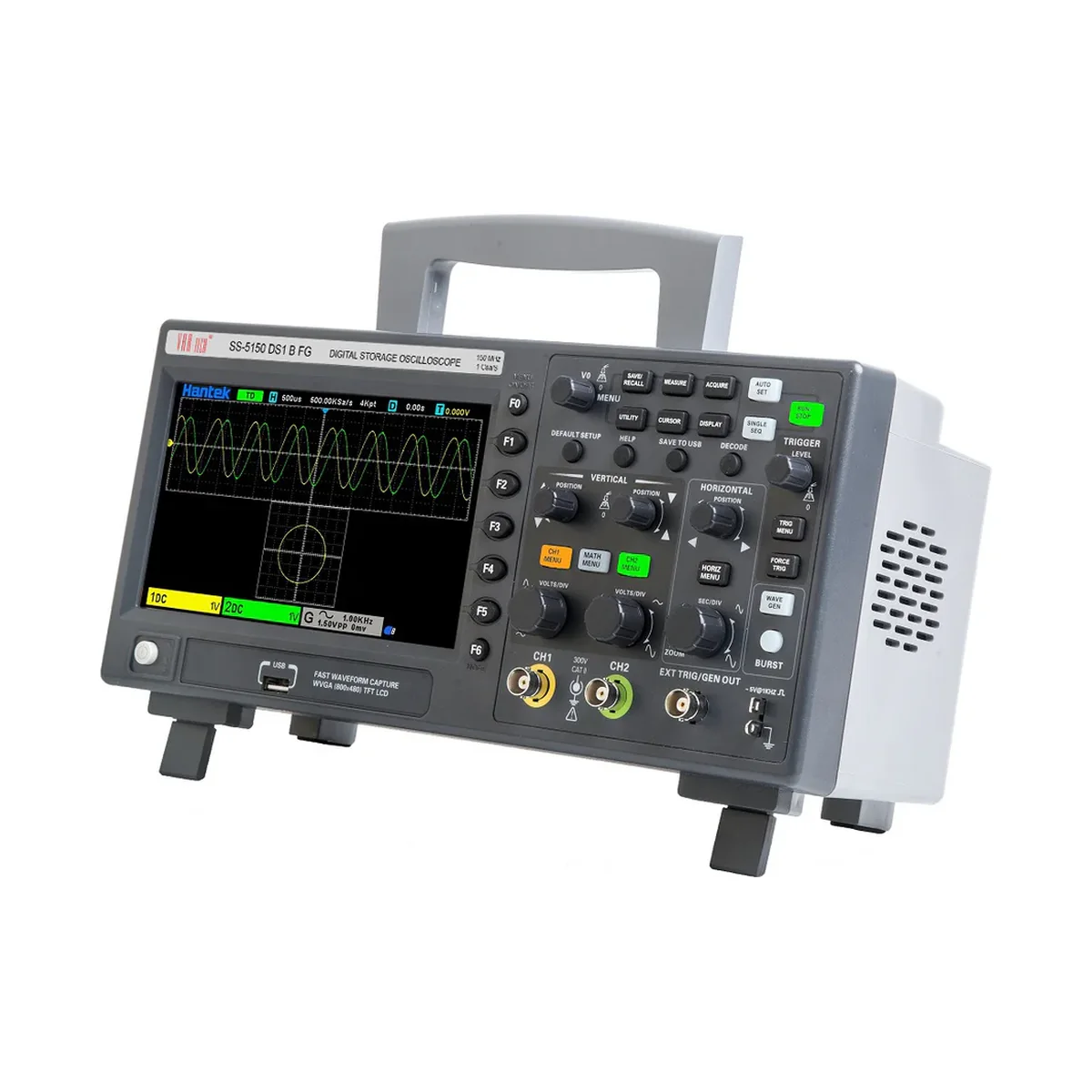

The Vartech SS-5150DS1B FG is a 150 MHz dual-channel digital storage oscilloscope with a built-in 25 MHz arbitrary waveform generator (AWG). The AWG outputs sine, square, ramp, exponential, noise, DC and arbitrary waveforms from 1 µHz to 25 MHz at up to 3.5 Vpp into 50 Ω. The 1 GS/s DSO shares all specifications with the SS-5100DS1B - 4M record length, 7-inch TFT, USB, FFT, 32 auto-measurements and cursor measurements. An ideal instrument for stimulus-response testing, filter characterisation, amplifier frequency response and general circuit verification.

• 150 MHz bandwidth (−3 dB); rise time ≤3.5 nS
• Built-in AWG: 1 channel, Sine/Square/Ramp/Exponential/Noise/DC/Arbitrary - 1 µHz to 25 MHz
• AWG output: up to 3.5 Vpp (into 50 Ω)
• Dual channel with 1 GS/s real-time sampling
• 2 mV/div to 10 V/div vertical deflection
• 4M record length per channel (8M total)
• 7-inch 800×480 TFT LCD, USB host & device

Specifications.

Bandwidth

DC ~ 150 MHz (−3 dB); Rise time ≤3.5 nS

Channels

2 (Dual Channel)

Real-Time Sampling Rate

1 GS/s

Vertical Deflection

2 mV / div ~ 10 V / div

Sweep Time

100 S ~ 2 nS / div

Record Length

4M max / channel (8M total)

Built-in AWG

1 channel - Sine, Square, Ramp, Exponential, Noise, DC, Arbitrary; frequency: 0.1 Hz ~ 25 MHz (Sine); output: 5 mV ~ 3.5 Vpp (into 50 Ω)

Display

7" TFT LCD, 800×480 resolution

Measurements

32 types of auto-measurement; cursor measurements (ΔV, ΔT, 1/ΔT)

Math & Analysis

FFT, Maths

Interface

USB Host & USB Device

Other Features

Auto Setup; waveform & setup storage

Power Supply

AC 100 ~ 240 V, 50 / 60 Hz

Accessories

User's manual, mains cord; ratio probes optional
