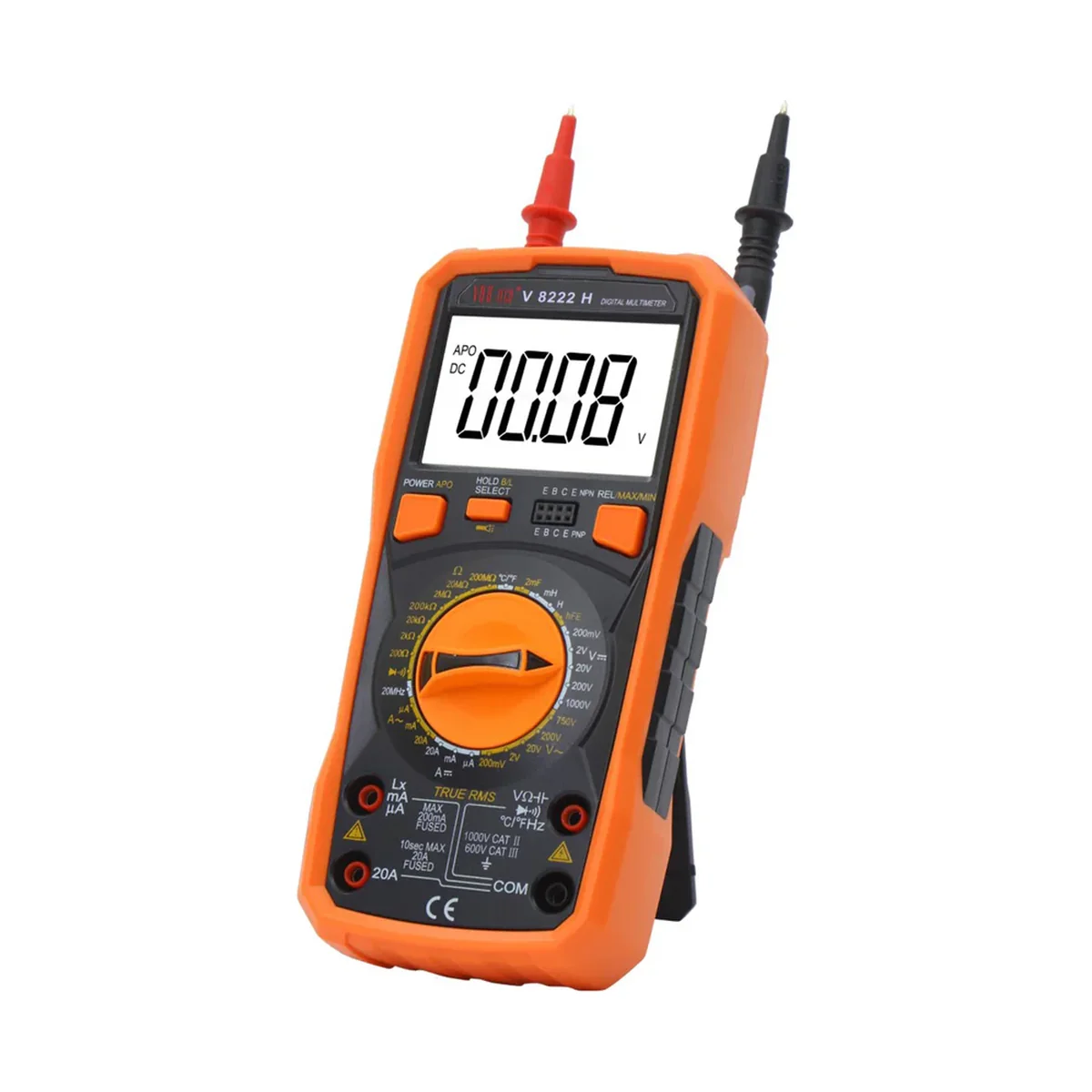

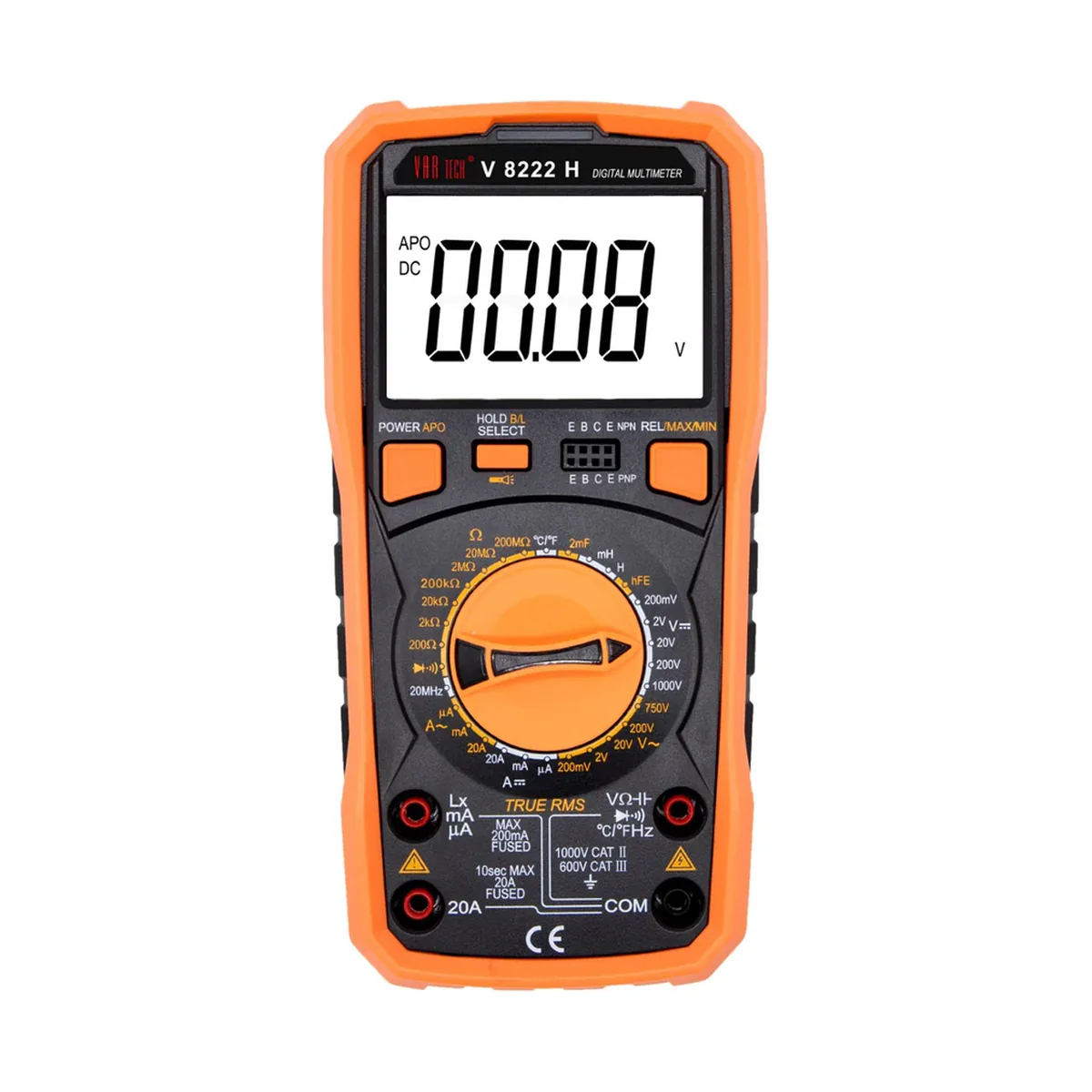

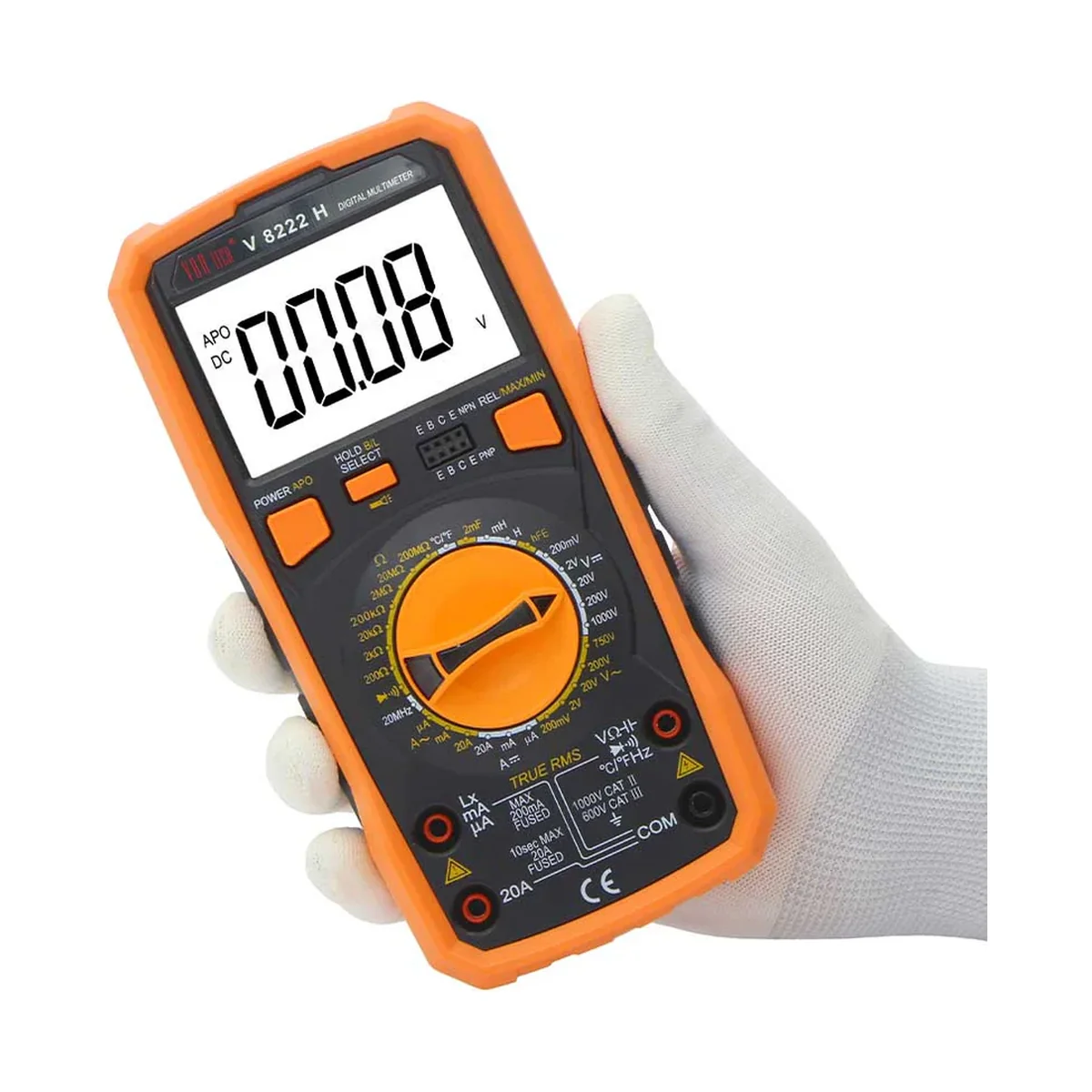

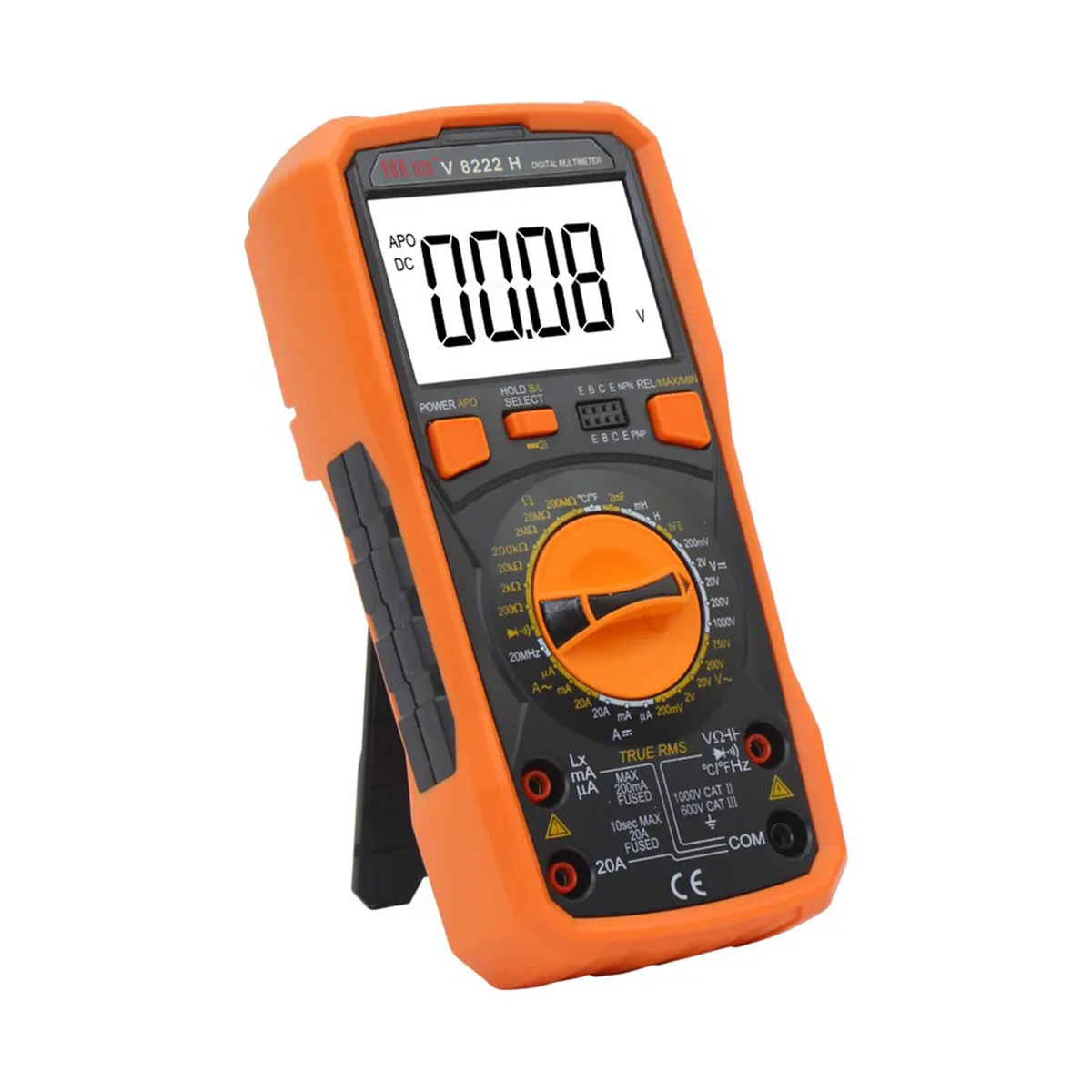

LCR Digital Multimeter - True RMS, 1000 V DC / 750 V AC, 20 A
Model V 8222 H
3½-digit True RMS handheld LCR multimeter - inductance, capacitance, resistance, frequency, temperature and full multimeter in one instrument.
₹3,000₹4,50033% off
Inclusive of 18% GST
Added to cart. View cart ›
- GST tax invoice with every order
- Secure payment by UPI, card or netbanking
- Genuine Vartech product
About.
The Vartech V 8222 H is a 3½-digit True RMS handheld digital multimeter with built-in LCR measurement capability. It measures DC and AC voltage up to 1000 V / 750 V, DC and AC current up to 20 A, resistance up to 200 MΩ, capacitance (20 nF to 2 mF, auto-ranging), inductance (2 mH to 20 H in two auto ranges), frequency and duty cycle up to 20 MHz (7 auto ranges), and temperature (−20 °C to 1000 °C). All accuracies are as listed in the official Vartech catalogue.
- Inductance - 2 mH to 20 H in 2 auto ranges | Accuracy: ±(2.5% rdg + 30 digits)
- Capacitance - 20 nF to 2 mF, 6 auto ranges | Accuracy: ±(3.5% rdg + 20 digits)
- True RMS - accurate on non-sinusoidal waveforms from VFDs and inverters
- 1000 V DC / 750 V AC and 20 A DC/AC full multimeter capability
- Frequency & duty cycle - 10 Hz to 20 MHz (7 auto ranges)
- Temperature −20 °C to 1000 °C with probe, transistor (hFE), continuity, diode test
- Backlight, torch, data hold, REL, min/max, auto power off
Specifications.
- Display
- 3½ Digits, 2000 Counts, with Backlight
- True RMS
- Yes
- Ranging
- Manual (Inductance, Capacitance, Frequency: Auto)
- DC Voltage
- 200 mV / 2 V / 20 V / 200 V / 1000 V | Accuracy: ±(0.5% rdg + 3 digits)
- AC Voltage (True RMS)
- 200 mV / 2 V / 20 V / 200 V / 750 V | Accuracy: ±(0.8% rdg + 5 digits) | Freq. response: 40 Hz ~ 1 kHz
- DC Current
- 200 µA / 2 mA / 20 mA / 200 mA / 20 A | Accuracy: ±(1.2% rdg + 8 digits)
- AC Current (True RMS)
- 200 µA / 2 mA / 20 mA / 200 mA / 20 A | Accuracy: ±(1.5% rdg + 15 digits) | Freq. response: 40 Hz ~ 1 kHz
- Resistance

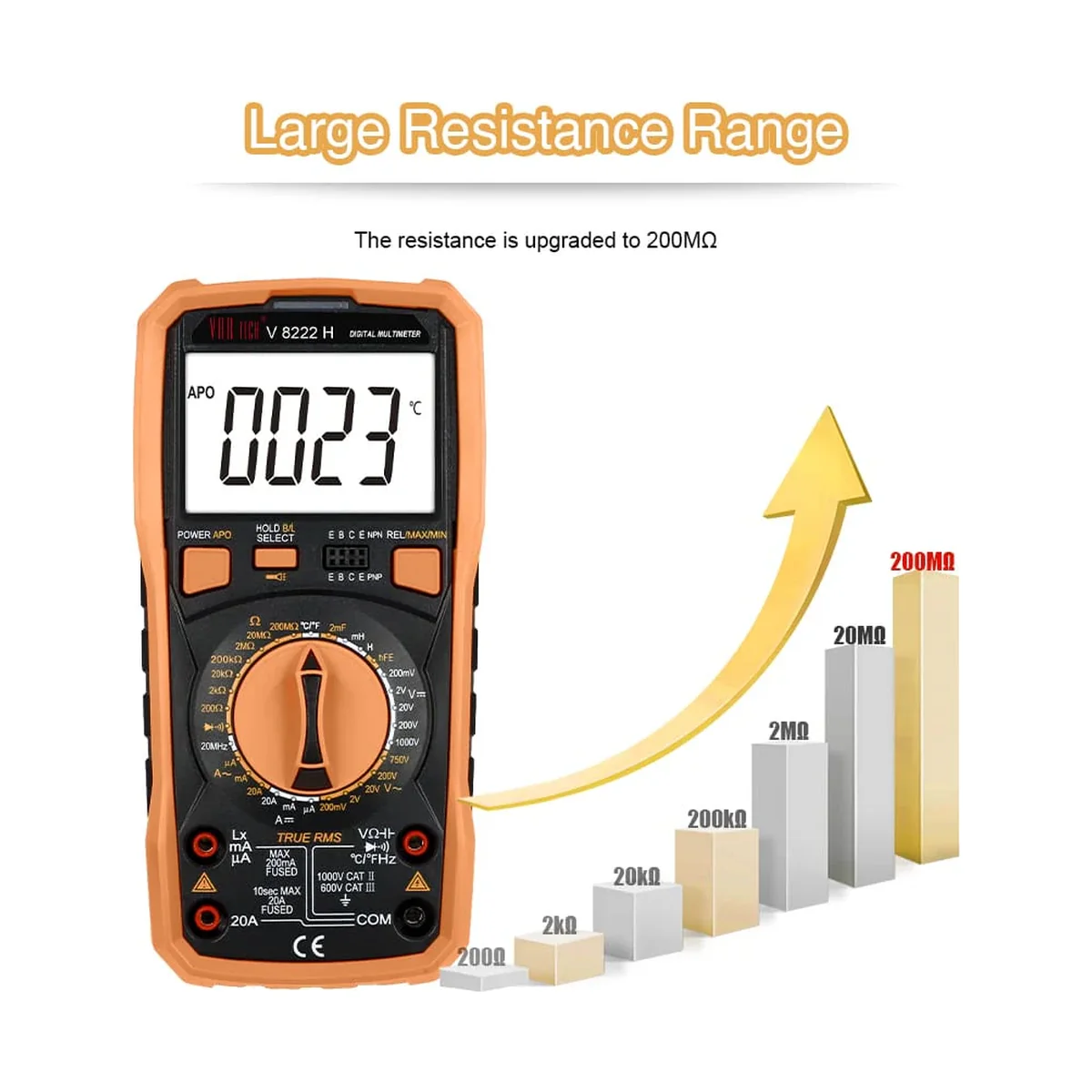

- 200 Ω / 2 KΩ / 20 KΩ / 200 KΩ / 2 MΩ / 20 MΩ / 200 MΩ | Accuracy: ±(0.8% rdg + 3 digits)
- Capacitance (Auto)
- 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF | Accuracy: ±(3.5% rdg + 20 digits)
- Inductance (Auto)
- 2 mH / 20 mH / 200 mH / 2 H / 20 H (in 2 auto ranges) | Accuracy: ±(2.5% rdg + 30 digits)
- Frequency & Duty Cycle
- 10 Hz ~ 20 MHz (7 auto ranges) | Accuracy: ±(1% rdg + 10 digits)
- Temperature
- −20 °C ~ +1000 °C (−4 °F ~ 1832 °F)
- Other Functions
- Torch, A/V Continuity, Diode Test, Transistor (hFE) Test, Auto Power Off, Backlight, Data Hold, REL Measurement, Min/Max, Low Battery Indicator
- Accessories
- Holster (installed), test leads, user manual, 4×AAA batteries, temperature probe
