Digital Multimeter True RMS Auto Ranging

About.

The Vartech V 92 is a new-generation True RMS digital multimeter engineered for electrical engineers, electronics professionals and HVAC technicians who need more than a basic meter. With 6000 counts, auto-ranging, frequency measurement up to 2 MHz, duty cycle, temperature and capacitance - all in a compact ergonomic body with overload protection and NCV - it is the complete all-in-one field instrument for demanding diagnostic work.

• 6000-count auto-ranging True RMS - three times the resolution of a standard 2000-count meter, eliminates manual range selection and gives accurate readings on any waveform
• Frequency measurement up to 2 MHz including in the ACV range - ideal for VFD and motor drive testing, signal tracing and control system diagnostics
• Duty cycle measurement - essential for diagnosing PWM motor controllers, switching regulators and pulse-based control circuits
• Temperature measurement from −20 °C to 1000 °C (probe included) - one meter for both electrical and thermal measurements
• Capacitance measurement up to 2 mF across 7 auto-ranging ranges - test capacitors without leaving the instrument or switching tools

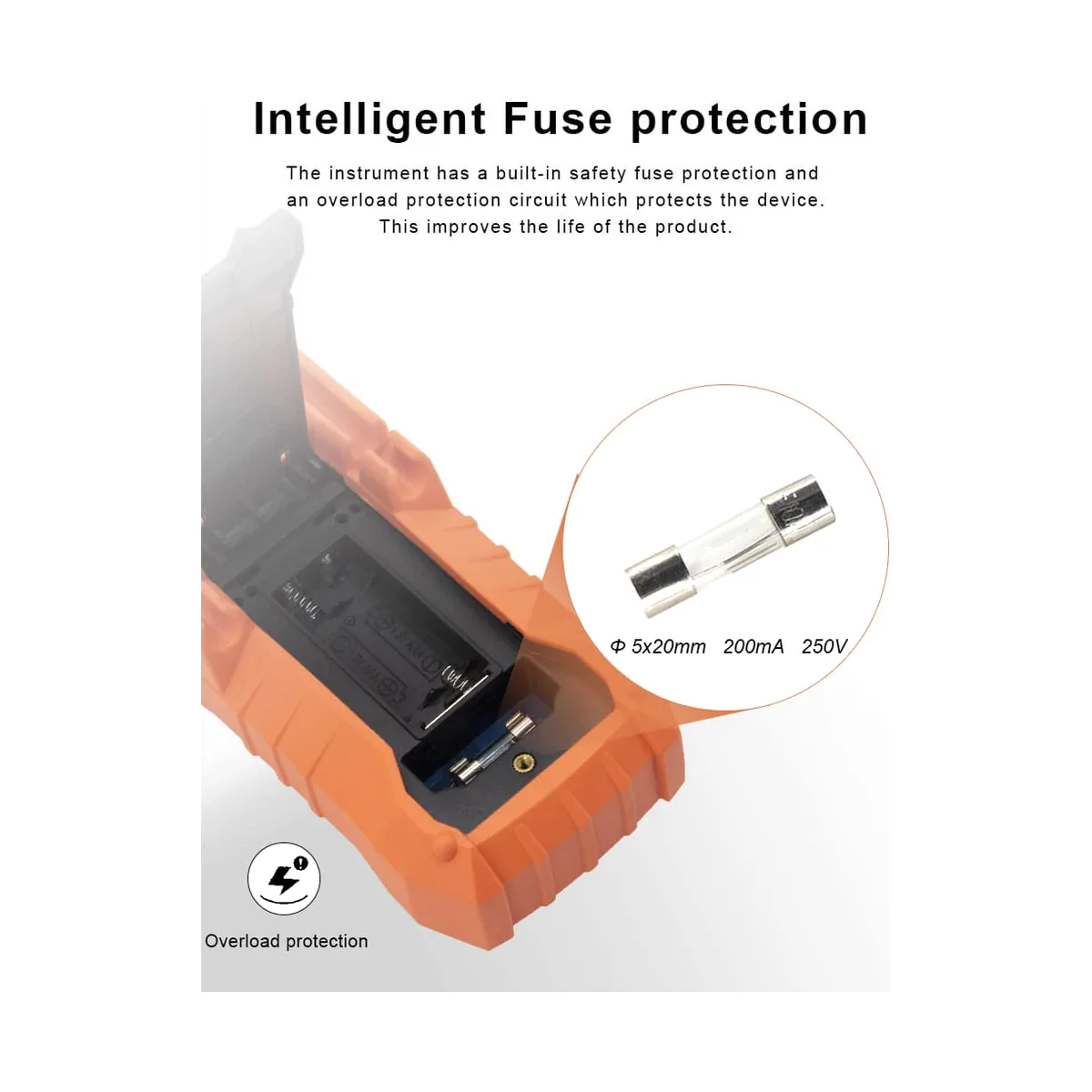

• Overload protection - guards the meter against voltage spikes, surges and accidental high-voltage connections

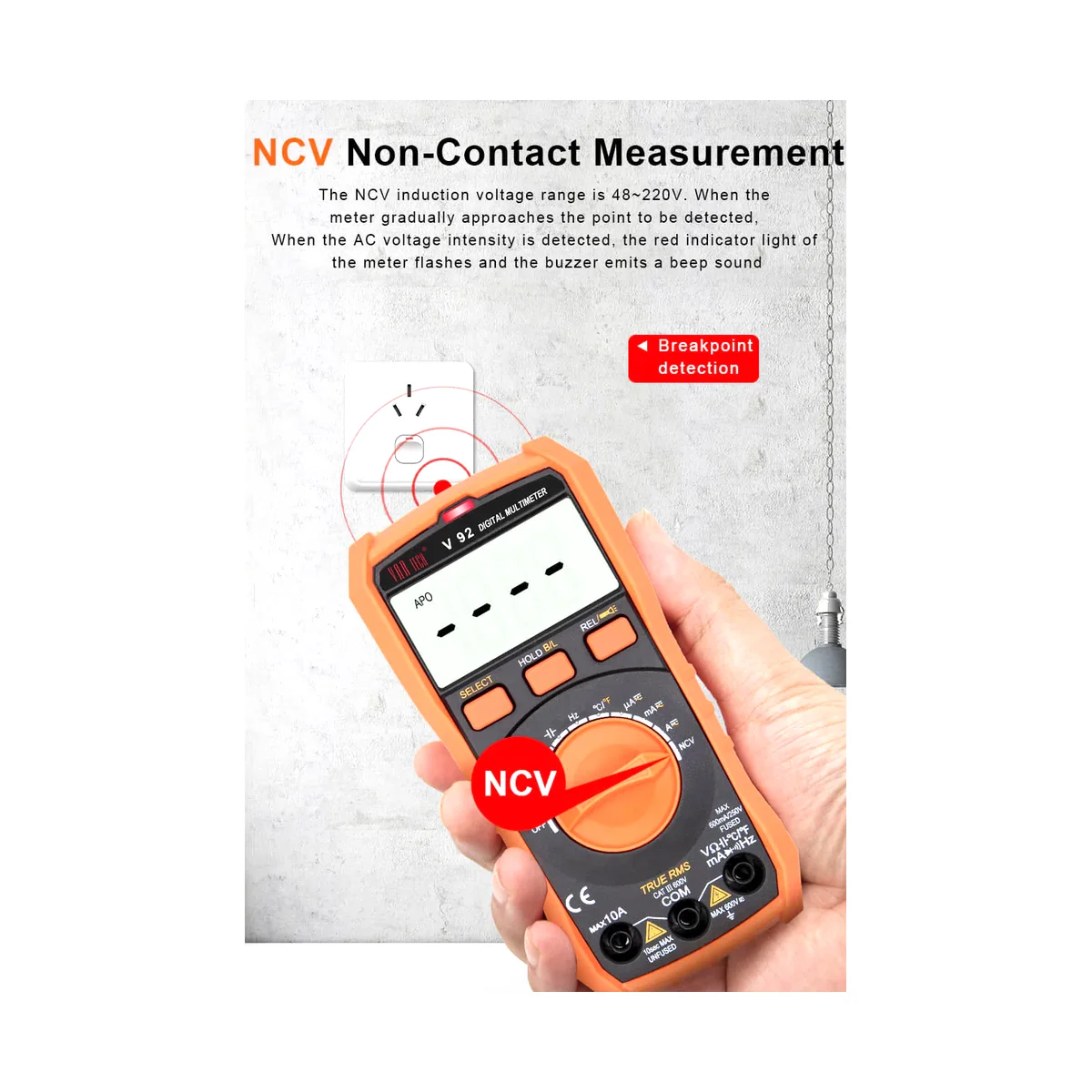

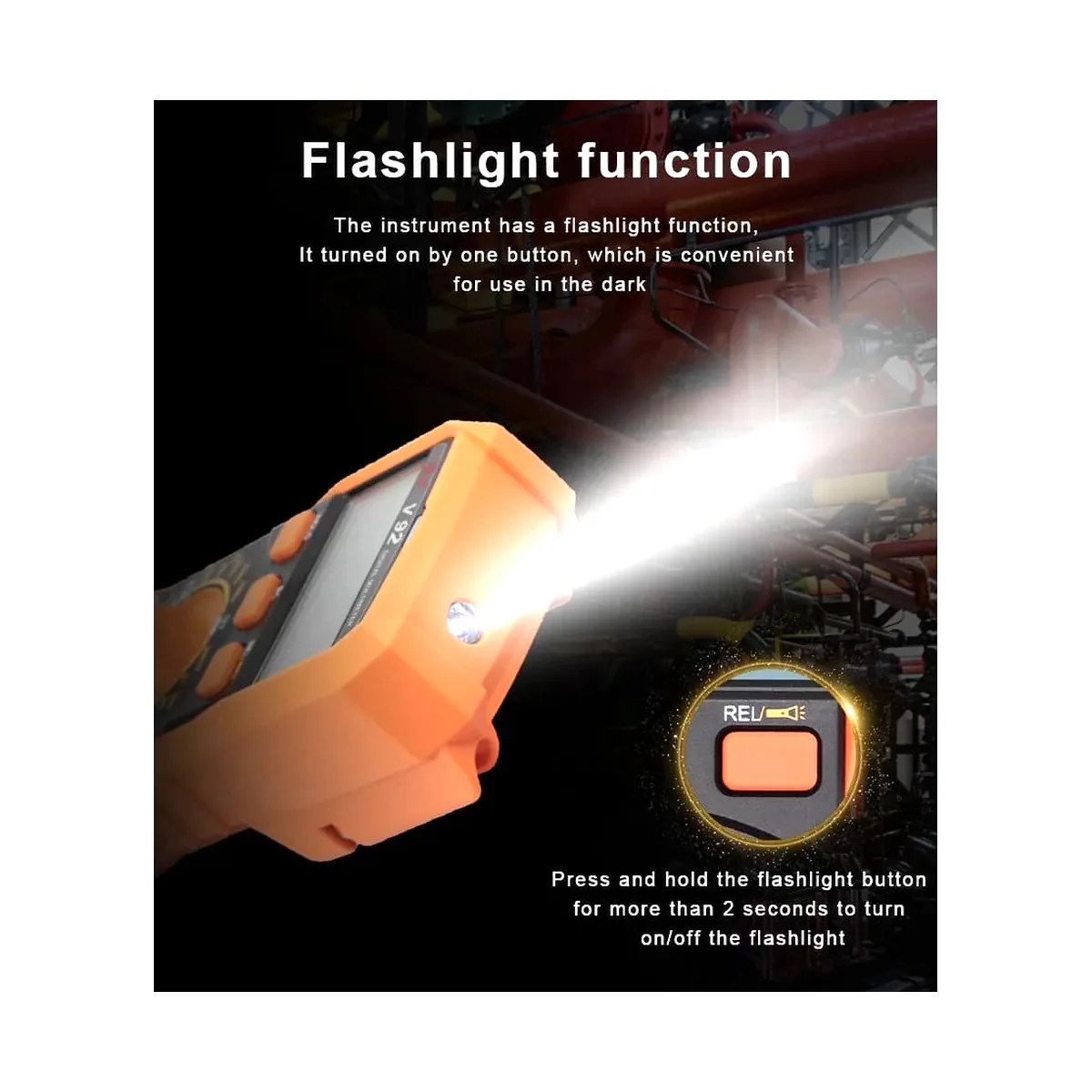

• Non-Contact Voltage (NCV) detection with torch - safely identify live conductors and illuminate dark enclosures simultaneously
• Relative measurement (REL) and Data Hold - compare readings against a reference or capture a reading hands-free

Specifications.

Display

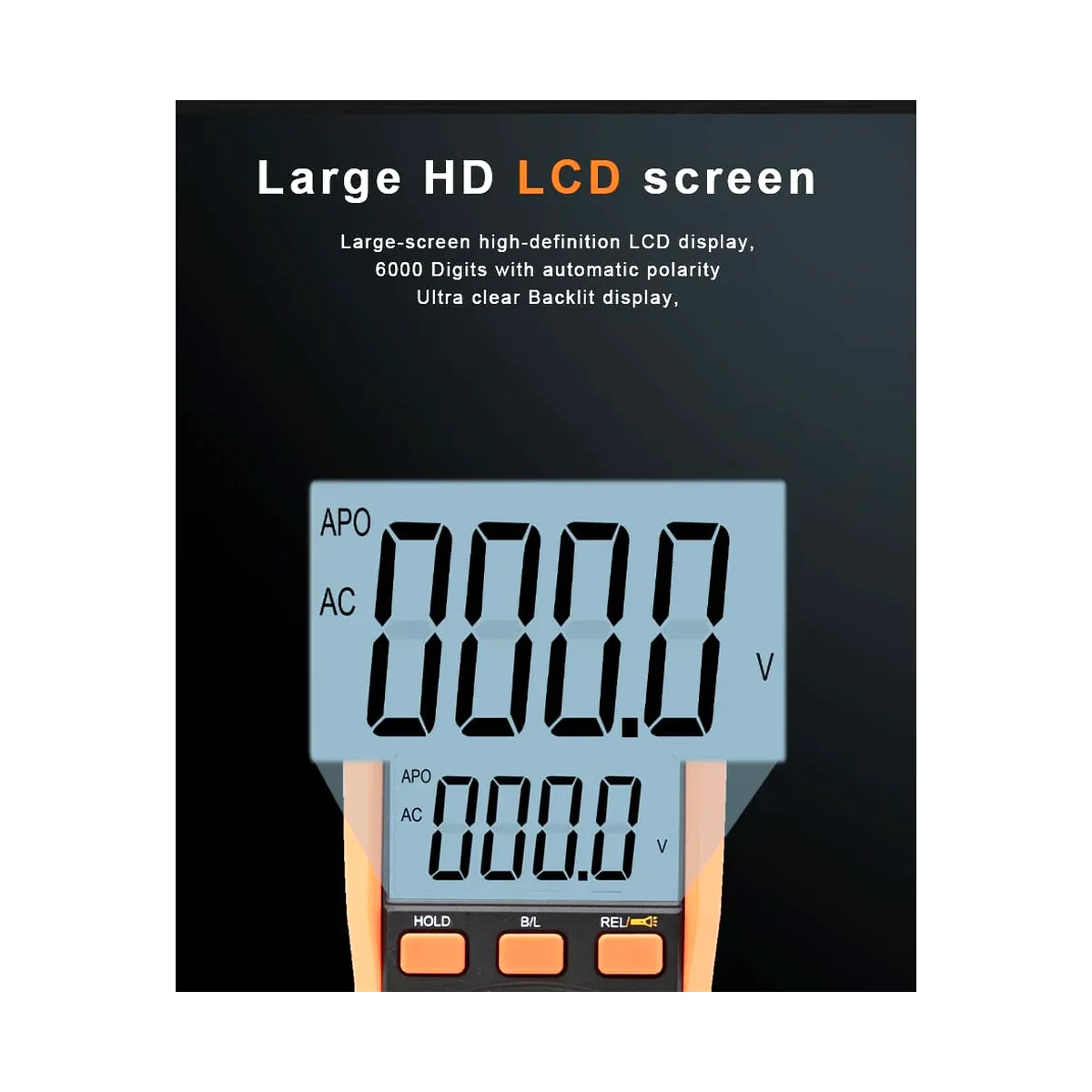

6000 Counts, 3⅚ Digits

True RMS

Yes

Ranging

Auto

DC Voltage

600 mV / 6 V / 60 V / 600 V | Accuracy: ±(0.5% rdg + 3 digits)

AC Voltage (True RMS)

6 V / 60 V / 600 V | Accuracy: ±(0.8% rdg + 5 digits) | Freq. response: 40 Hz–1 KHz

DC Current

600 µA / 6000 µA / 60 mA / 600 mA / 6 A / 10 A | Accuracy: ±(1% rdg + 10 digits)

AC Current (True RMS)

600 µA / 6000 µA / 60 mA / 600 mA / 6 A / 10 A | Accuracy: ±(1% rdg + 10 digits)

Resistance

600 Ω / 6 KΩ / 60 KΩ / 600 KΩ / 6 MΩ / 60 MΩ | Accuracy: ±(0.8% rdg + 4 digits)

Capacitance

10 nF / 100 nF / 1 µF / 10 µF / 100 µF / 200 µF / 2 mF | Accuracy: ±(3.5% rdg + 20 digits)

Frequency

10 Hz – 2 MHz (Auto Ranging) | Accuracy: ±(1% rdg + 10 digits) | Sensitivity: 1 Vrms | O/L protection: 250 V DC/AC rms

Temperature

−20 °C to 1000 °C (−4 °F to 1832 °F)

Other Functions

NCV, Torch, ACV Frequency Measurement, A/V Continuity, Diode Test, Backlight, Data Hold, REL Measurement, Auto Power Off, Low Battery Indicator

Accessories

Holster (installed), test leads, user manual, 2×AAA batteries, temperature probe

Dimensions & Weight

146 × 72 × 50 mm | ~235 g (with battery & holster)
