Bench Top Digital Multimeter with PC Interface TRMS 30000 Counts

About.

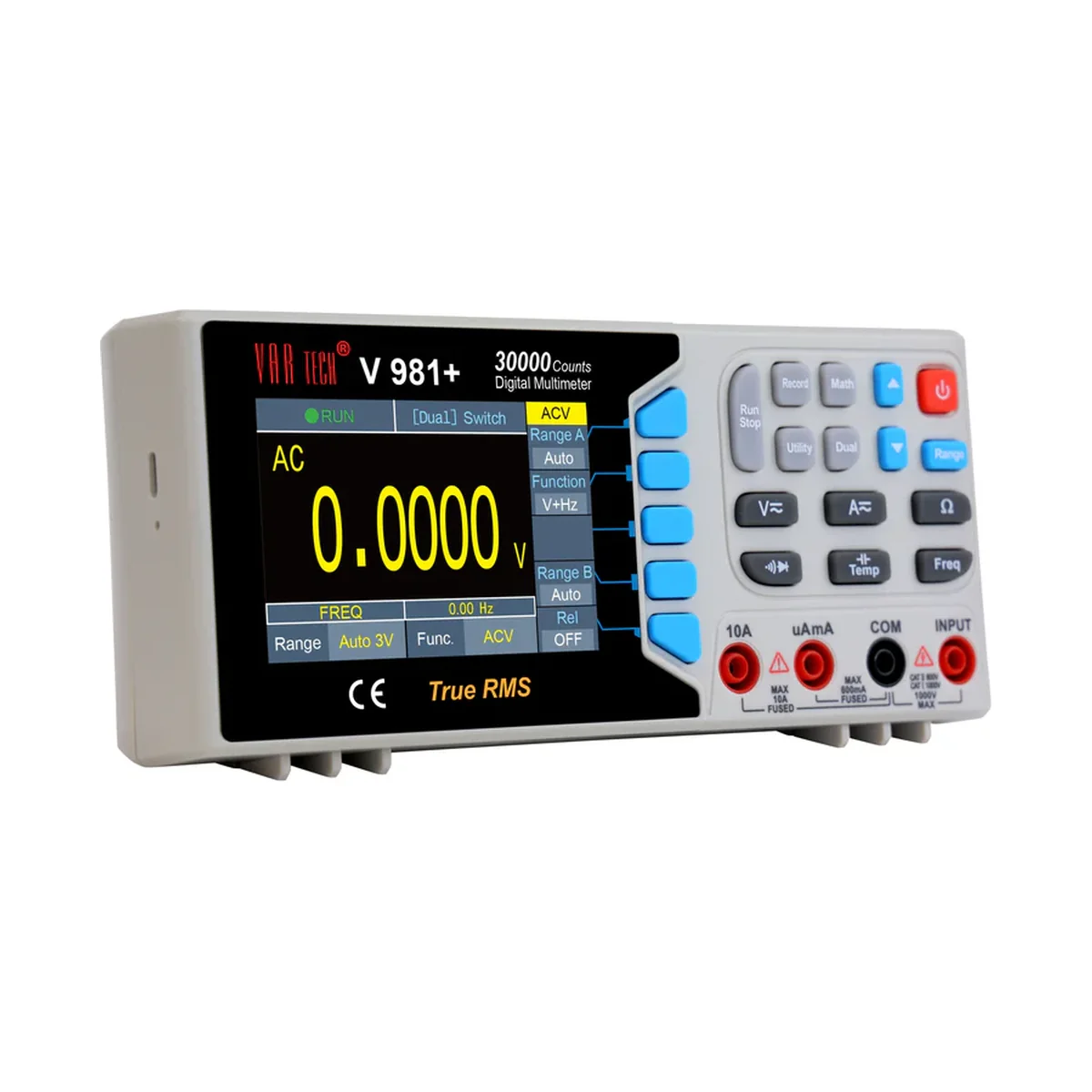

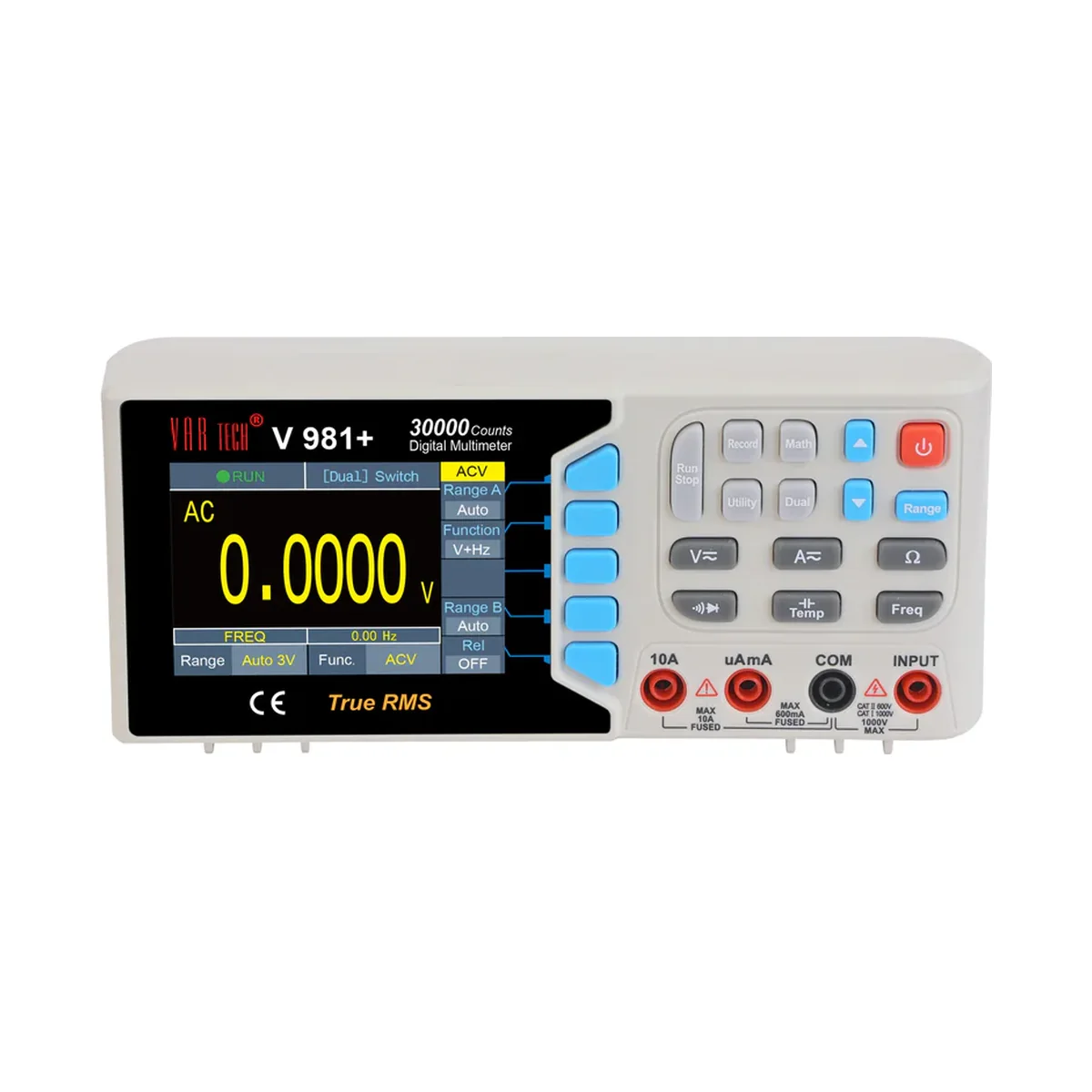

The Vartech V 981+ is the most advanced instrument in the Vartech range - a portable bench-top True RMS digital multimeter that brings laboratory measurement capability out of the lab. With a 3.5" colour TFT dual display showing 30,000 counts, PC interface for data logging, frequency measurement up to 300 MHz, a built-in rechargeable battery with Type-C USB charging and advanced functions including data recording, math and Run/Stop - it is built for R&D engineers, laboratory technicians and serious test professionals who refuse to compromise.

• 30,000-count 3.5" colour TFT dual display - simultaneously displays two measurement values (e.g., voltage and frequency) in high visibility; eliminates the need to switch between functions
• PC interface with data recording - log measurement data to a computer for analysis, reporting and quality documentation; essential for production testing and calibration records
• Frequency measurement up to 300 MHz - covers RF signals, telecommunications, high-frequency electronics and harmonic analysis far beyond any handheld multimeter
• Built-in rechargeable battery with Type-C USB charging - no disposable batteries; charge from any laptop, power bank or USB charger for truly portable bench-top use
• Math functions and Run/Stop - perform on-screen calculations, freeze a live measurement or capture data events without connecting to a computer
• True RMS auto-ranging from 300 mV to 1000 V DC and 750 V AC with 0.05% best accuracy - bench-top precision in measurement
• Temperature measurement from −40 °C to 1000 °C with 0.1 °C resolution - highest resolution temperature capability in the Vartech range
• Capacitance up to 300 mF and duty cycle up to 99.9% - the most comprehensive measurement specification in the Vartech multimeter lineup

Specifications.

Display

30000 Counts, 3.5" HD TFT Colour Dual Display

True RMS

Yes

Ranging

Auto

DC Voltage

300 mV / 3 V / 30 V / 300 V / 1000 V | Accuracy: ±(0.1% + 5 digits) on 300 mV range; ±(0.05% + 5 digits) on 3 V–300 V ranges; ±(0.5% + 10 digits) on 1000 V range | Input impedance: ~100 MΩ (300 mV range), ~10 MΩ (other ranges)

AC Voltage (True RMS)

300 mV / 3 V / 30 V / 300 V / 750 V | Accuracy (40 Hz–400 Hz): ±(0.8–1.0% + 25 digits); at higher frequencies up to 10 KHz: ±(2.0–2.5% + 25–60 digits)

DC Current

300 µA / 3 mA / 30 mA / 300 mA / 3 A / 10 A | Accuracy: ±(0.15% + 20 digits) for µA–mA ranges; ±(1.2% + 50 digits) for A ranges

AC Current (True RMS)

300 µA / 3 mA / 30 mA / 300 mA / 3 A / 10 A | Accuracy (40 Hz–400 Hz): ±(0.8–1.5% + 20–30 digits)

Resistance

300 Ω / 3 KΩ / 30 KΩ / 300 KΩ / 3 MΩ / 30 MΩ / 300 MΩ | Accuracy: ±(0.5% + 10 digits) to ±(5% + 50 digits)

Capacitance

30 nF / 300 nF / 3 µF / 30 µF / 300 µF / 3 mF / 30 mF / 300 mF | Accuracy: ±(4% + 50 digits) to ±(20% + 50 digits)

Frequency & Duty Cycle

10 Hz – 300 MHz | Duty cycle: 0.1% – 99.9% | Accuracy: ±(0.1% + 5 digits)

Temperature

−40 °C to 1000 °C | Resolution: 0.1 °C

Other Functions

Continuity, Diode Test, Data Recording, Run/Stop, Math, Dual Display, REL, Data Hold, PC Interface, Adjustable Auto Power Off, Frequency Measurement in ACV Range

Battery

Built-in rechargeable, Type-C USB charging
