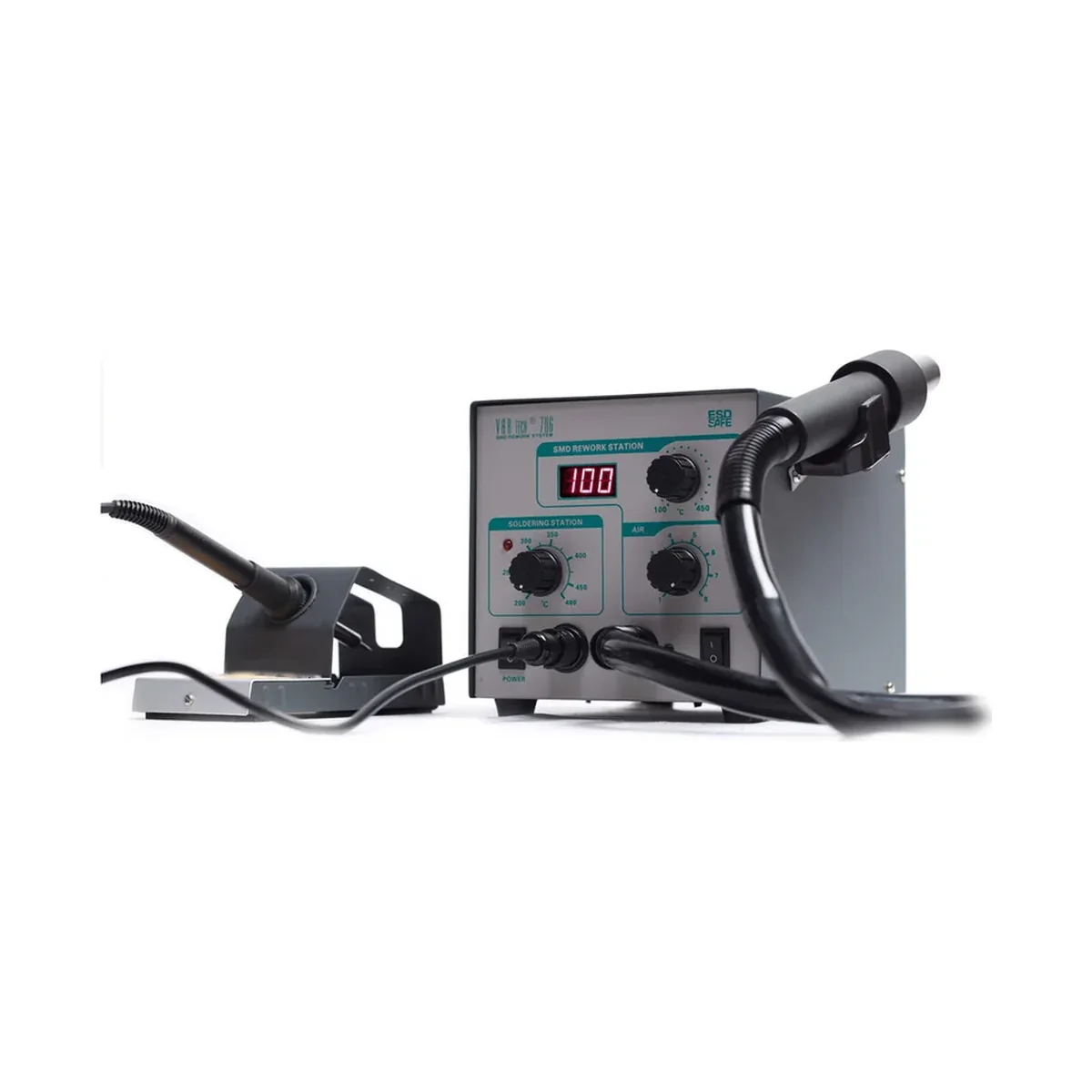

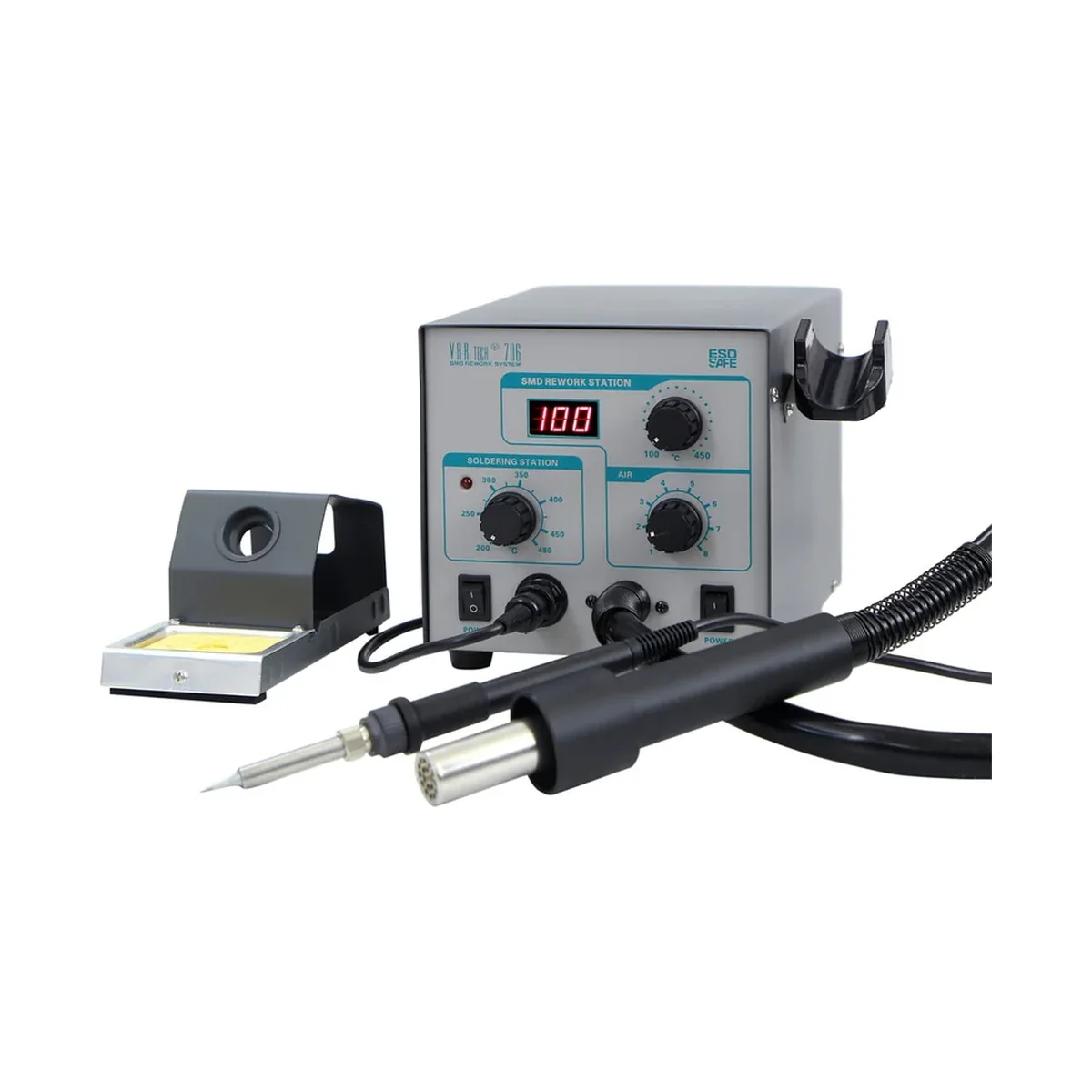

2-in-1 Soldering and SMD Re-Work Station, 580 W + 50 W

About.

Multifunction rework system. Device includes 50 W soldering station 200 ºC ~ 480 ºC (classic soldering iron) and 580 W hot-air soldering station 100 ºC ~ 450 º. Features: Separate switches allow Individual / simultaneous operation. Long lifetime heater. Auto sleep/ OFF function available. Digital temperature calibration, easy operation. Compatible with various types of soldering iron tips and nozzles. Brushless vortex fan, stepless and wide range of air volume, suitable for various applications. Automatic cooling system can prolong the lifetime of heating element and protect the hot air handle. Precise temperature controlled by closed-loop sensor. Light soldering iron handle, easy to use.

• 2 in 1 Soldering system
• With Digital Display
• Japanese Technology, ESD Safe
• Both can be used together & separately switched On/Off
• Powerful starting, Rapid Heating
• Air volume linear adjustable
• Various types of Nozzles & Tips available for different applications

Specifications.

SMD re-work section

580 W; air flow 50 L / Min. (max.); 100 ºC ~ 450 ºC; soft air rotary pump; LED digital display (1 ºC resolution)

Soldering section

50 W; 200 ºC ~ 480 ºC; stability ± 2 ºC; tip to ground resistance 2 Ω, potential 2 mV

Operation

220 V AC, 50 Hz

Dimensions

160 × 200 × 150 mm

Weight

Approx. 3 Kg

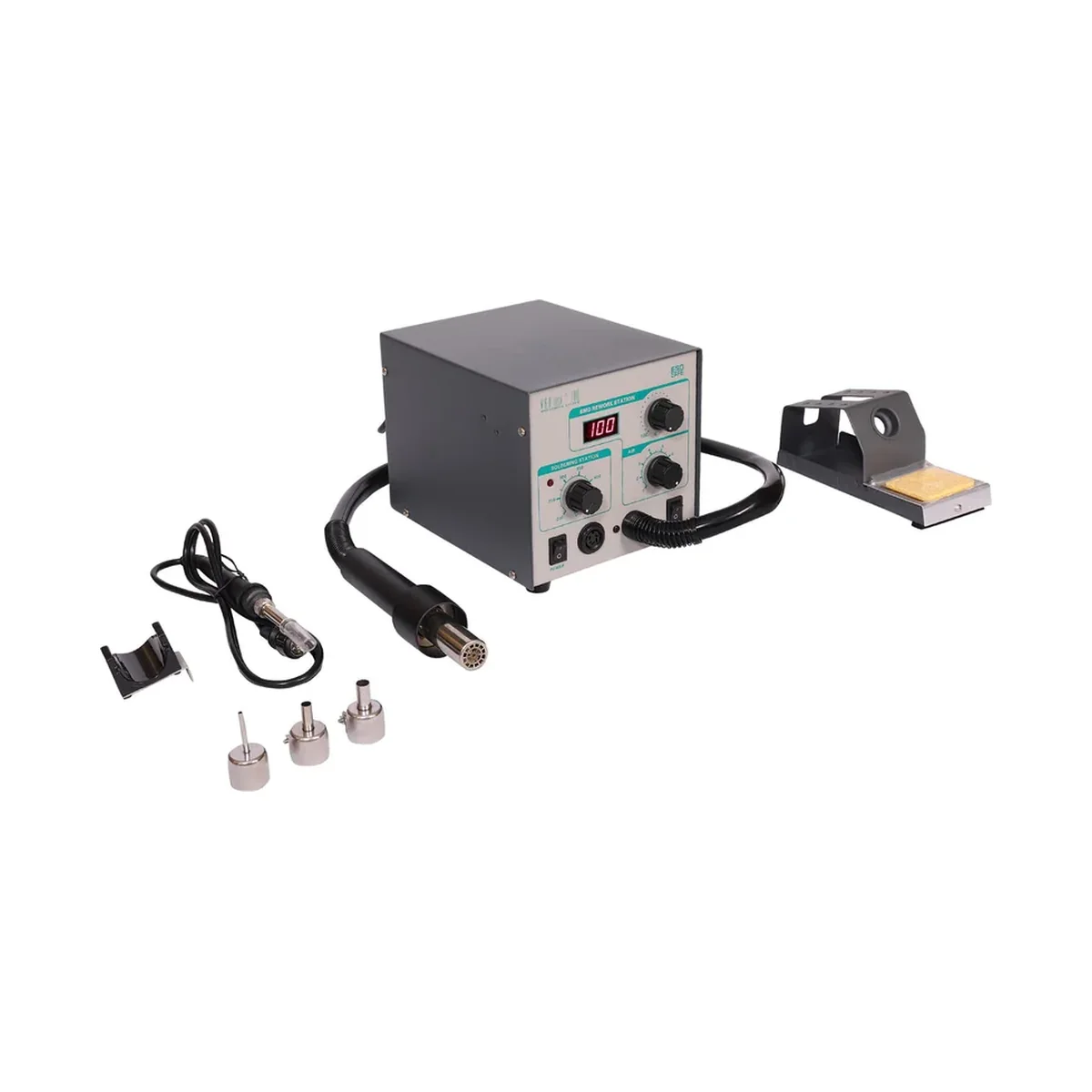

Supplied as standard

3 nozzles and 1 pointed tip
