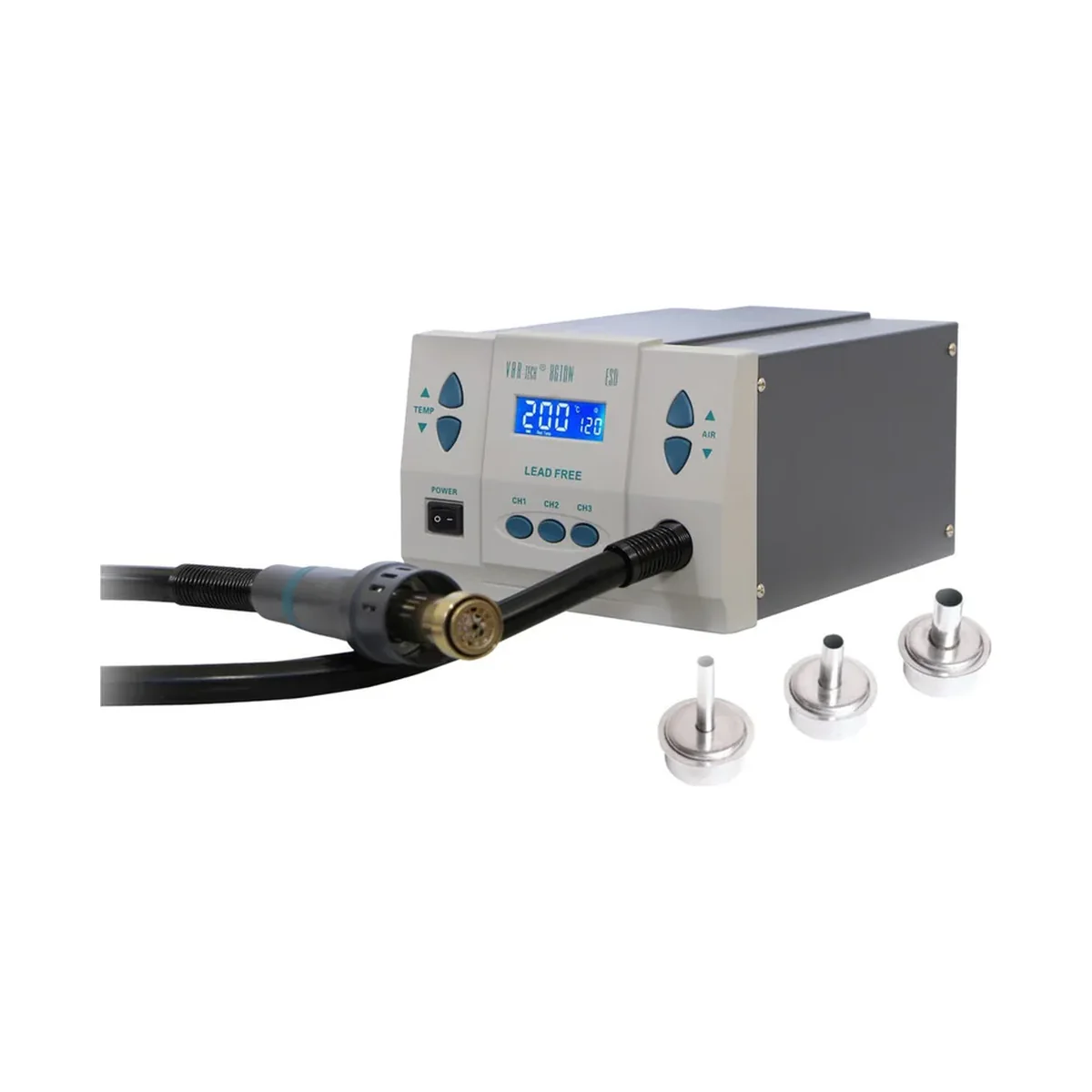

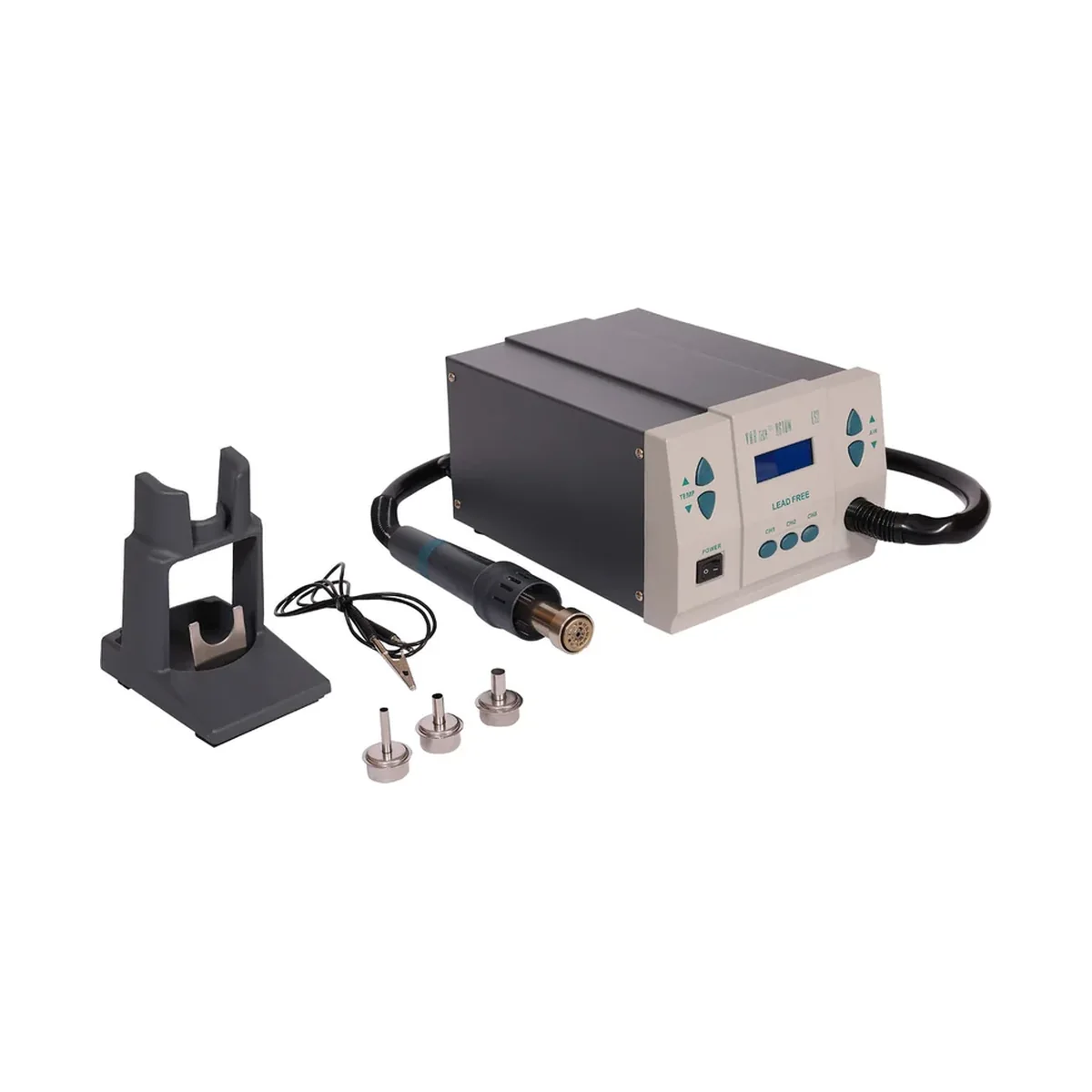

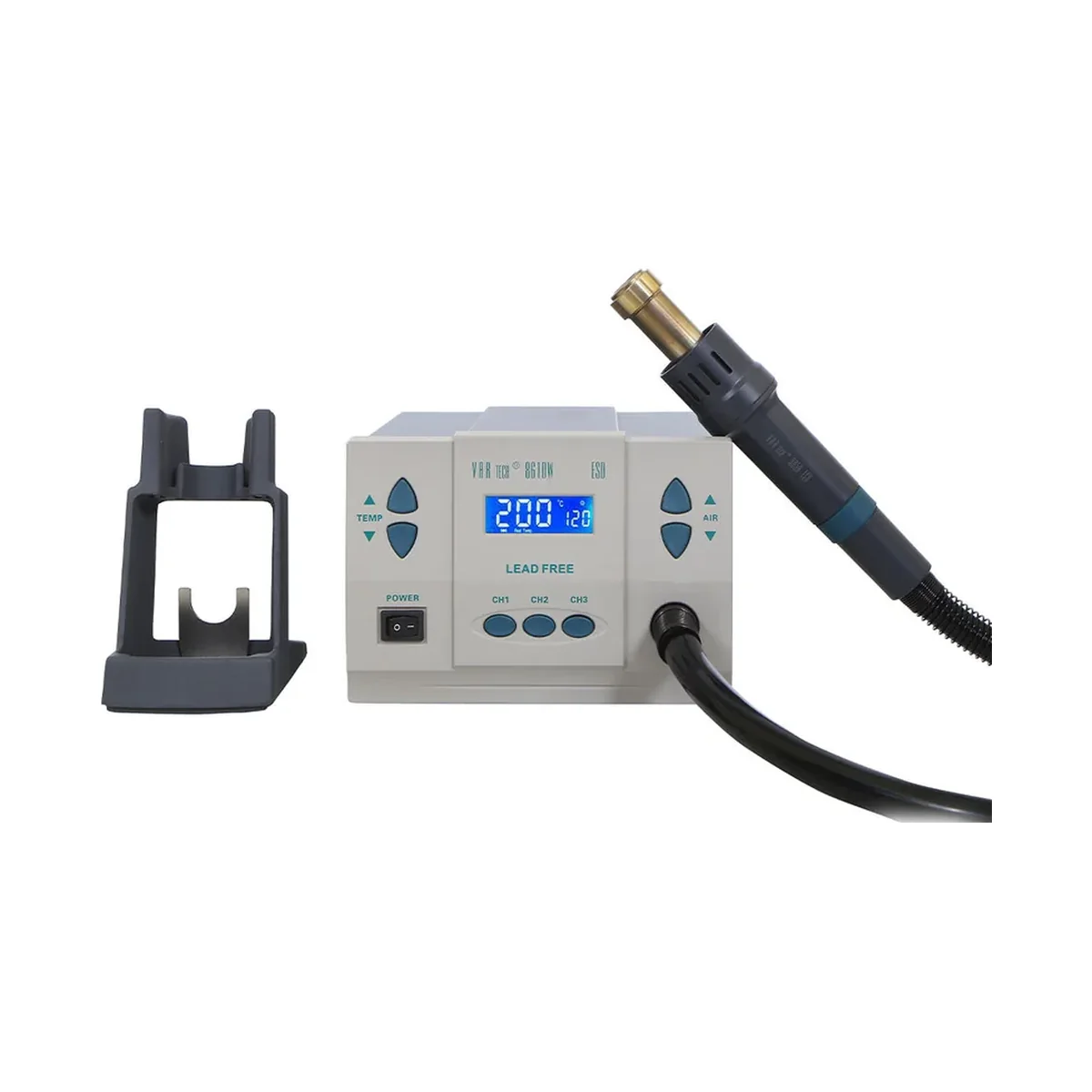

Lead-Free SMD Re-Work Station, 1000 W

About.

Advanced Hot Air SMD Rework Station with a 1000 W heating power. Temperature adjustment from 100 °C to 500 °C. Three programmable channels CH1, CH2 and CH3 (for air volume and temperature parameters). Password protection and button lock function available. Magnetic switch in a stand can automatically puts the station into sleep mode when not in use. Easy real-time operation, auto sleeping function available, parameters can be set in sleeping mode. Closed loop sensor, temperature controlled by micro-computer zero trigger, large power, rapid temperature rising, temperature can be easily and accurately adjusted, not affected by airflow. Brushless vortex fan, wide range of airflow adjustable, suitable for many applications. Auto cooling function available, long lifetime ceramic heater.

• Flagship Lead free S.M.D. Re-work station
• Three regular channels : "CH1", "CH2" and "CH3"
• Each channel's Temperature & Airflow can be set
• Digital Display & Temp., Control
• Password protection and key-lock functions
• Real time operating magnetic switch Unit enters sleeping mode when handle is placed on holder
• Auto sleeping function. Parameters can be set in sleeping state
• Closed loop sensor : Temperature can be controlled by zero voltage triggering modes, adjusted conveniently, accurate & is stable (not affected by airflow)
• Large power, rapid heating, 220 V AC Operating Voltage
• Brushless whirlpool motor, wide range and step-less adjustable airflow

Specifications.

Power

1000 W

Temperature range

100 ºC ~ 500 ºC

Airflow range

1 ~ 120 L/min

Channels

Three programmable channels (CH1, CH2, CH3)

Dimensions

188 (L) × 245 (D) × 135 (H) mm

Weight

Approx. 4 Kg
