Insulation Tester - Metal Body, Hand-Driven

About.

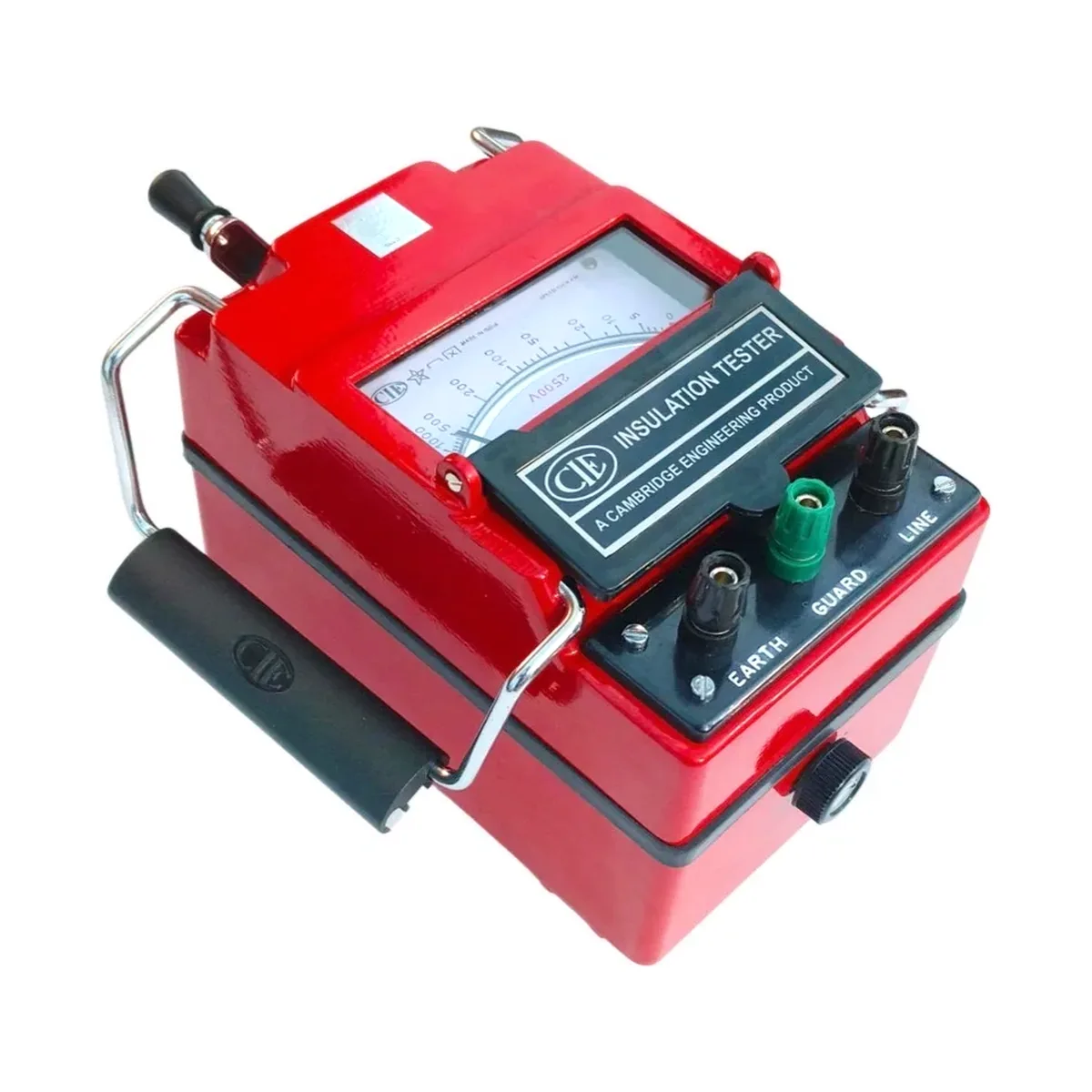

The CIE/444 is a hand-driven generator-type insulation tester for direct-reading insulation resistance measurement on motors, generators and other rotating machinery, switchgear, cables, transformers, and industrial installations. Power is generated entirely by the operator via a collapsible hand crank - no batteries or external power source are required. A centrifugal governor (clutch) holds output voltage constant regardless of crank speed. The instrument features a high-sensitivity cross-coil indicator, anti-parallax mirror scale, and anti-magnetic aluminium body. A guard terminal and externally accessible infinity adjuster are provided on instruments with insulation range 1000 megohms and above. Conforms to IS: 2992/1987. Quick response: 3 seconds. Each unit is built for a single rated voltage and resistance range, specified at order.

• Motors, generators, and other rotating machinery
• Insulation control and switching equipment checks
• Distribution network and communication cable insulation testing
• Transformer and insulator testing; industrial installation checks
• Locating intermittent shorts, defective connections, and developing insulation failures

Specifications.

Body

Anti-magnetic aluminium

Generator Type

Hand-driven, silent generator with centrifugal governor (clutch)

Scale Length

90 mm (approx.)

Accuracy

Conforms to IS: 2992-1987

Rotation Speed

160 r.p.m. or more

High Voltage Test

Withstands minimum 2000 V or (rated voltage + 1000) V A.C. (rms) between electrical circuit and handle, for 1 minute

Insulation Resistance Test

Better than 50 MΩ at 500 V between electrical circuit and containing case

Guard Terminal & Infinity Adjuster

Provided on instruments with insulation range 1000 MΩ and above

Response Time

3 seconds

Weight

2.5 kg (approx.)

Dimensions (L×W×H)

110 × 128 × 195 mm (approx.)

Range Configuration

Multiple range options available - choose the option above

Warranty

12 months against manufacturing defects only
