Insulation Tester - Wooden Body, Hand-Driven

About.

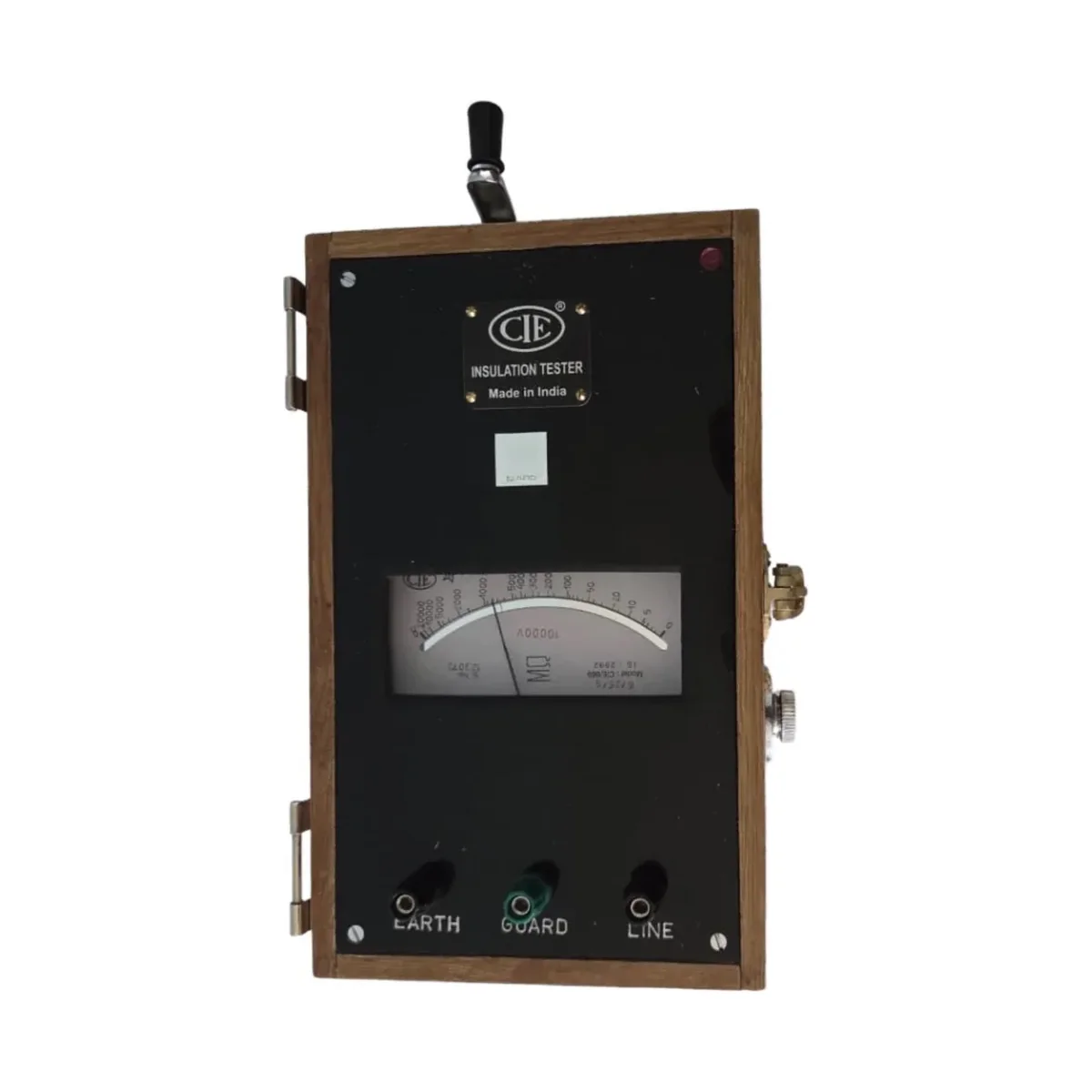

The CIE/666 is a hand-driven generator-type insulation tester built into a seasoned wooden body with sunmica finish, offering a more traditional, robust enclosure. Available at more rated voltages than the metal-body CIE/444 (100, 250, 500, 1000, 2500, 5000 and 10,000 V), making it suitable for higher-voltage insulation testing including HV switchgear and higher-class transformer windings. Like the CIE/444, it generates its own test voltage via a hand-cranked generator with centrifugal governor, eliminating any need for external power. A guard terminal and externally accessible infinity adjuster are provided on instruments with insulation range 1000 megohms and above. The wooden cabinet has a detachable lid, carrying handle, and lock. Scale length is 100 mm. Quick response: 3 seconds. Conforms to IS: 2992/1987. Each unit is built for a single rated voltage and resistance range, specified at order.

• Motors, generators, and other rotating machinery
• Insulation control and switching equipment checks
• Distribution network and communication cable insulation testing
• HV switchgear and transformer insulation testing up to 10,000 V
• Locating intermittent shorts, defective connections, and developing insulation failures

Specifications.

Body

Seasoned wooden with sunmica finish; detachable lid, carrying handle, and lock

Generator Type

Hand-driven, silent generator with centrifugal governor (clutch)

Scale Length

100 mm (approx.)

Accuracy

Conforms to IS: 2992-1987

Rotation Speed

160 r.p.m. or more

High Voltage Test

Withstands minimum 2000 V or (rated voltage + 1000) V A.C. (rms) between electrical circuit and handle, for 1 minute

Insulation Resistance Test

Better than 50 MΩ at 500 V between electrical circuit and containing case

Guard Terminal & Infinity Adjuster

Provided on instruments with insulation range 1000 MΩ and above

Response Time

3 seconds

Weight

4.1 kg (approx.)

Dimensions (L×W×H)

265 × 165 × 185 mm (approx.)

Range Configuration

Multiple range options available - choose the option above

Warranty

12 months against manufacturing defects only
