CIE · Clamp Meters

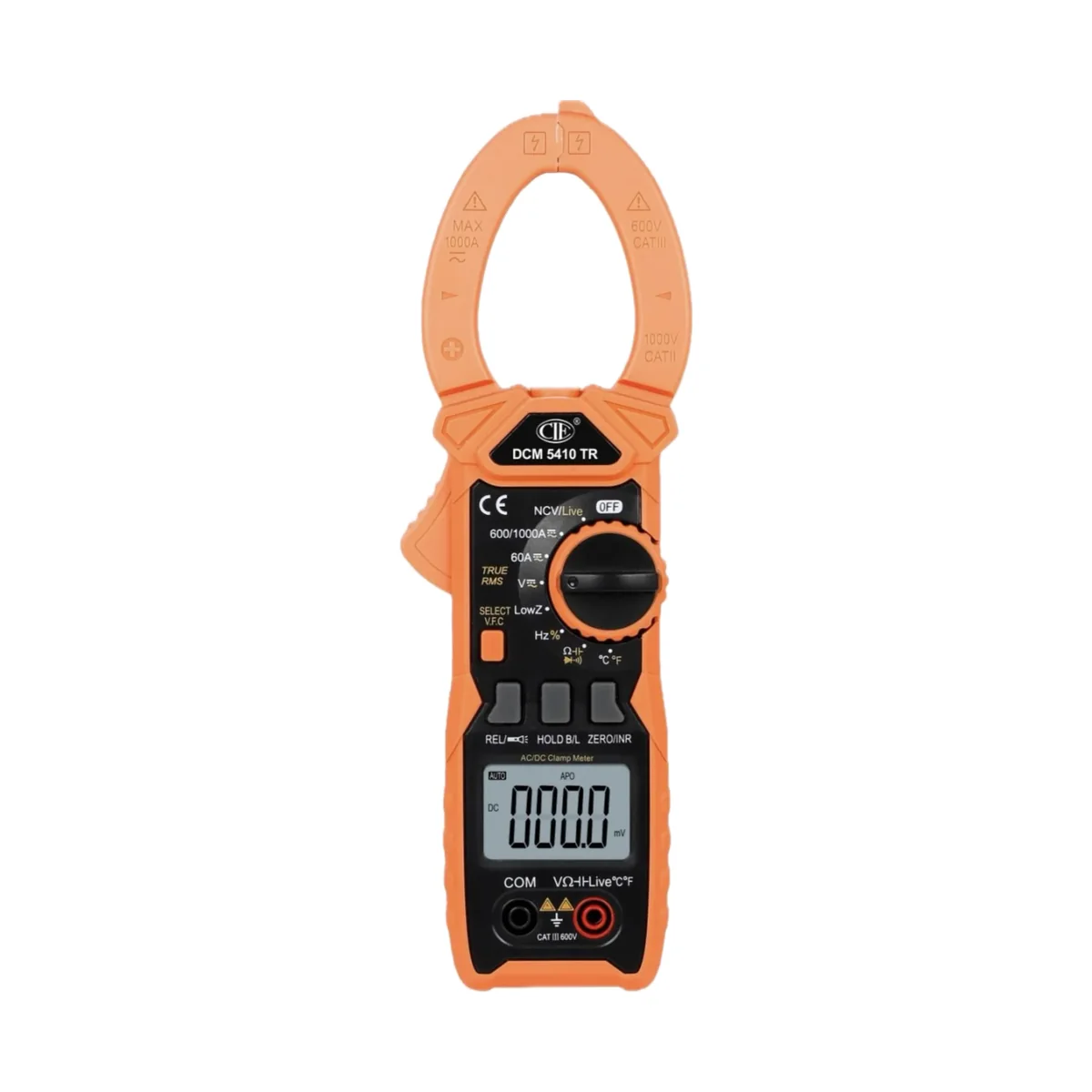

Digital Clamp Multimeter - True-RMS AC/DC, 1000 A
Model DCM 5410 TR
True-RMS AC/DC clamp multimeter - 1000 A AC and DC, plus capacitance, frequency, and temperature. CAT III 600 V.
₹5,490₹8,78037% off
Inclusive of 18% GST
Added to cart. View cart ›
- GST tax invoice with every order
- Secure payment by UPI, card or netbanking
- 12-month warranty against manufacturing defects
About.
The DCM 5410 TR is a True-RMS digital clamp multimeter measuring both AC and DC current up to 1000 A, along with AC/DC voltage, resistance, capacitance, frequency (10 Hz–10 MHz), and temperature (−20°C to 1000°C). The DC current clamp capability is the key differentiator from the AC-only DCM 2250 TR, making the DCM 5410 TR suitable for solar, battery, and DC distribution work. Features: 6000-count auto-ranging display, NCV and live-wire test, Low-Z ACV mode, data hold, MIN/MAX, backlight, torch, and auto power-off. 40 mm jaw opening. Safety rated CAT III 600 V. Powered by 2 × AAA batteries. Weight: approx. 315 g.
- AC and DC current measurement on panels and distribution boards
- Solar and battery system diagnostics (DC current clamp)
- Electrical maintenance, switchgear, and panel testing
- Combined electrical and temperature diagnostics
In the box
- Test Leads
- Carrying Pouch
- User Manual
- 2 × AAA Batteries
Specifications.
- AC Current Ranges (True-RMS)
- 60 A / 600 A / 1000 A
- DC Current Ranges
- 60 A / 600 A / 1000 A
- DC Voltage
- 600 mV / 6 V / 60 V / 600 V / 1000 V
- AC Voltage (True-RMS)
- 6 V / 60 V / 600 V / 750 V
- Capacitance
- 1 nF to 10 mF (8 ranges)
- Frequency
- 10 Hz – 10 MHz
- Temperature
- −20°C to 1000°C / −4°F to 1832°F
- Low Impedance ACV
- 6 V / 60 V / 300 V - input impedance ≤3 KΩ
- Resistance
- 600 Ω / 6 KΩ / 60 KΩ / 600 KΩ / 6 MΩ / 20 MΩ / 60 MΩ
- Display
- 6000 Counts LCD, auto-ranging
- NCV / Live Wire Test
- Provided
- Jaw Opening (Max.)
- 40 mm
- Safety Category
- CAT III 600 V
- Power Supply
- 2 × AAA 1.5 V Batteries
