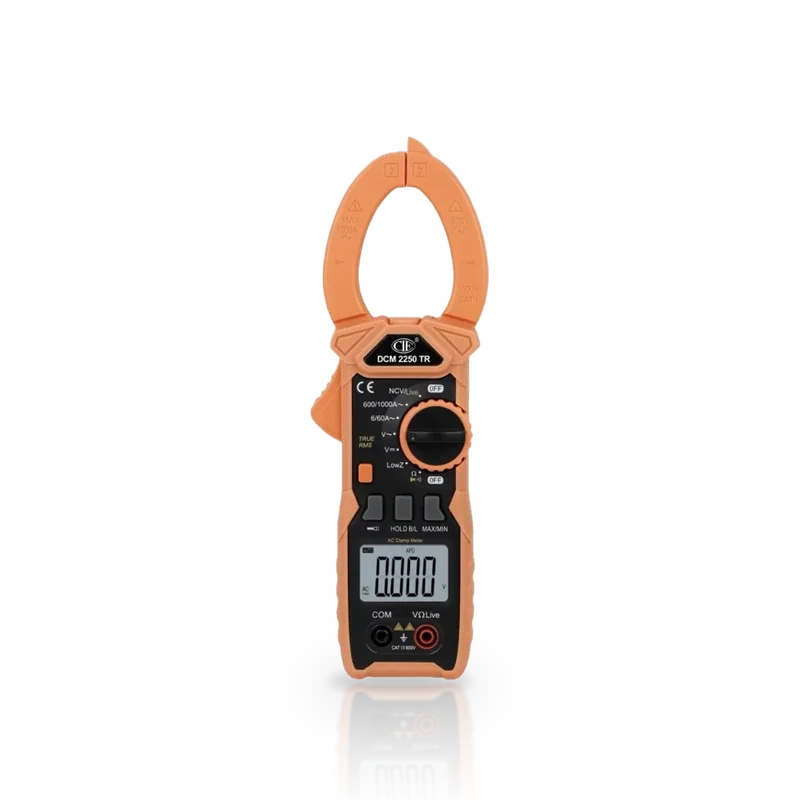

Digital Clamp Multimeter - True-RMS AC, 1000 A
Model DCM 2250 TR
True-RMS AC clamp multimeter - 6 A/60 A/600 A/1000 A, NCV, Low-Z ACV, 6000-count. AC current only (no DC current).
₹3,590₹5,38033% off
Inclusive of 18% GST
*Timelines can vary with the courier service and local conditions.
Buying for a company? Add your GSTIN at checkout for a GST tax invoice.
- AC Current Ranges
- 6 A / 60 A / 600 A / 1000 A (True-RMS)
- DC Current
- Not available - AC current only on this model
- DC Voltage
- 600 mV / 6 V / 60 V / 600 V / 1000 V
- AC Voltage (True-RMS)
- 6 V / 60 V / 600 V / 750 V
Not sure? Read: Clamp meter buying guide: AC or DC, True RMS, jaw size and which model to buy ›
Not sure this is the right one?
Tell us the job. We will tell you the instrument. Business and bulk orders welcome.
- GST tax invoice with every order
- Secure payment by UPI, card or netbanking
- 12-month warranty against manufacturing defects
About.
The DCM 2250 TR is a True-RMS digital clamp multimeter measuring AC current up to 1000 A across four ranges (6 A, 60 A, 600 A, 1000 A), along with AC/DC voltage, low-impedance ACV (Low Z), and resistance. This model measures AC current only - DC current measurement is not available on the DCM 2250 TR (see DCM 5410 TR for AC/DC current capability). Features include non-contact voltage (NCV) and live-wire test, 6000-count auto-ranging display, True-RMS measurement, data hold, MIN/MAX, backlight, torch, and auto power-off. Low-impedance ACV mode avoids false 'ghost voltage' readings on unloaded circuits. 40 mm jaw opening. Safety rated CAT III 600 V. Powered by 2 × AAA batteries. Weight: approx. 315 g.
- AC current measurement on panels and distribution boards
- Electrical maintenance and switchgear testing
- Cable and circuit continuity and live-wire checks
In the box
- Test Leads
- Carrying Pouch
- User Manual
- 2 × AAA Batteries
Specifications.
- AC Current Ranges
- 6 A / 60 A / 600 A / 1000 A (True-RMS)
- DC Current
- Not available - AC current only on this model
- DC Voltage
- 600 mV / 6 V / 60 V / 600 V / 1000 V
- AC Voltage (True-RMS)
- 6 V / 60 V / 600 V / 750 V
- Low Impedance ACV
- 6 V / 60 V / 300 V - input impedance ≤3 KΩ
- Resistance
- 600 Ω / 6 KΩ / 60 KΩ / 600 KΩ / 6 MΩ / 20 MΩ / 60 MΩ
- Display
- 6000 Counts LCD, auto-ranging
- NCV / Live Wire Test
- Provided
- Jaw Opening (Max.)
- 40 mm
- Safety Category
- CAT III 600 V
- Power Supply
- 2 × AAA Batteries
- Dimensions (L×W×H)
- 230 × 75 × 40 mm
- Weight (incl. battery)
- Approx. 315 g
- Warranty
- 12 months against manufacturing defects only
