Digital Insulation Tester + Multimeter - up to 2500 V

About.

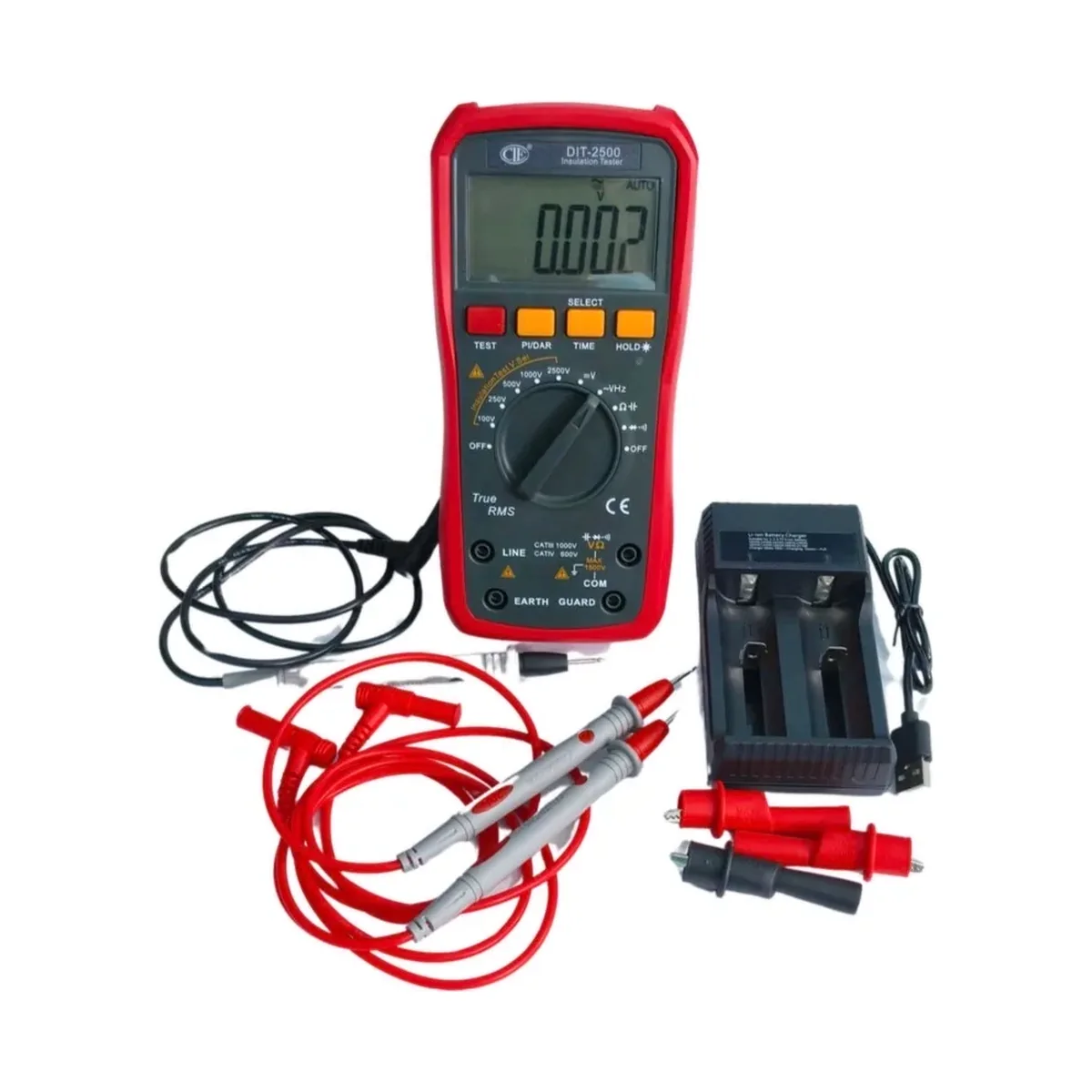

The DIT-2500 combines a digital insulation resistance tester with a full-function True-RMS digital multimeter in one handheld instrument. Insulation testing at five selectable voltages (100, 250, 500, 1000 and 2500 V) with resistance measurement up to 50 GΩ at 2500 V, including Dielectric Absorption Ratio (DAR) and Polarization Index (PI) tests with timer. Also functions as a general-purpose multimeter: AC/DC voltage up to 1500 V, resistance to 60 MΩ, capacitance to 100 mF, frequency, continuity and diode test. Powered by rechargeable Li-ion batteries (3.7 V × 2). Safety rated CAT III 1000 V / CAT IV 600 V. Features data hold, backlight and auto power-off. Dimensions: 189 × 89 × 55 mm. Weight: approx. 380 g including battery.

• Insulation resistance testing on motors, transformers, and cables
• DAR and PI testing for insulation quality assessment
• General electrical maintenance requiring both insulation and multimeter functions
• Switchgear, panel, and cable commissioning

Specifications.

Insulation Test Voltage

100 V / 250 V / 500 V / 1000 V / 2500 V

Insulation Resistance Range

By test voltage - 0.1 MΩ – 2 GΩ at 100 V, up to 50 GΩ at 2500 V (see table)

Insulation Accuracy

±(3% + 5) to 399.9 MΩ · ±(5% + 5) 0.4 – 2 GΩ · ±(10% + 5) 2.001 – 50 GΩ

Open Circuit Voltage

90% – 110% of rated test voltage

Short Circuit Current

≥ 1 mA

DAR

1 min : 15 s and 1 min : 30 s

PI

10 min : 60 s

Test Timer

15 s / 30 s / 1 min / 10 min (selectable)

DC Voltage

6 V – 600 V ±(0.5% + 5) · 1500 V ±(1% + 5)

AC Voltage (True-RMS)

6 V – 600 V ±(1.2% + 5) · 1500 V ±(2% + 5), 40 Hz – 1 kHz

Resistance

600 Ω – 60 MΩ

Capacitance

10 nF – 100 mF

Frequency

10 Hz – 20 kHz (ACV 1 – 600 V)

Diode / Continuity

Diode test · continuity buzzer below approx. 50 Ω
