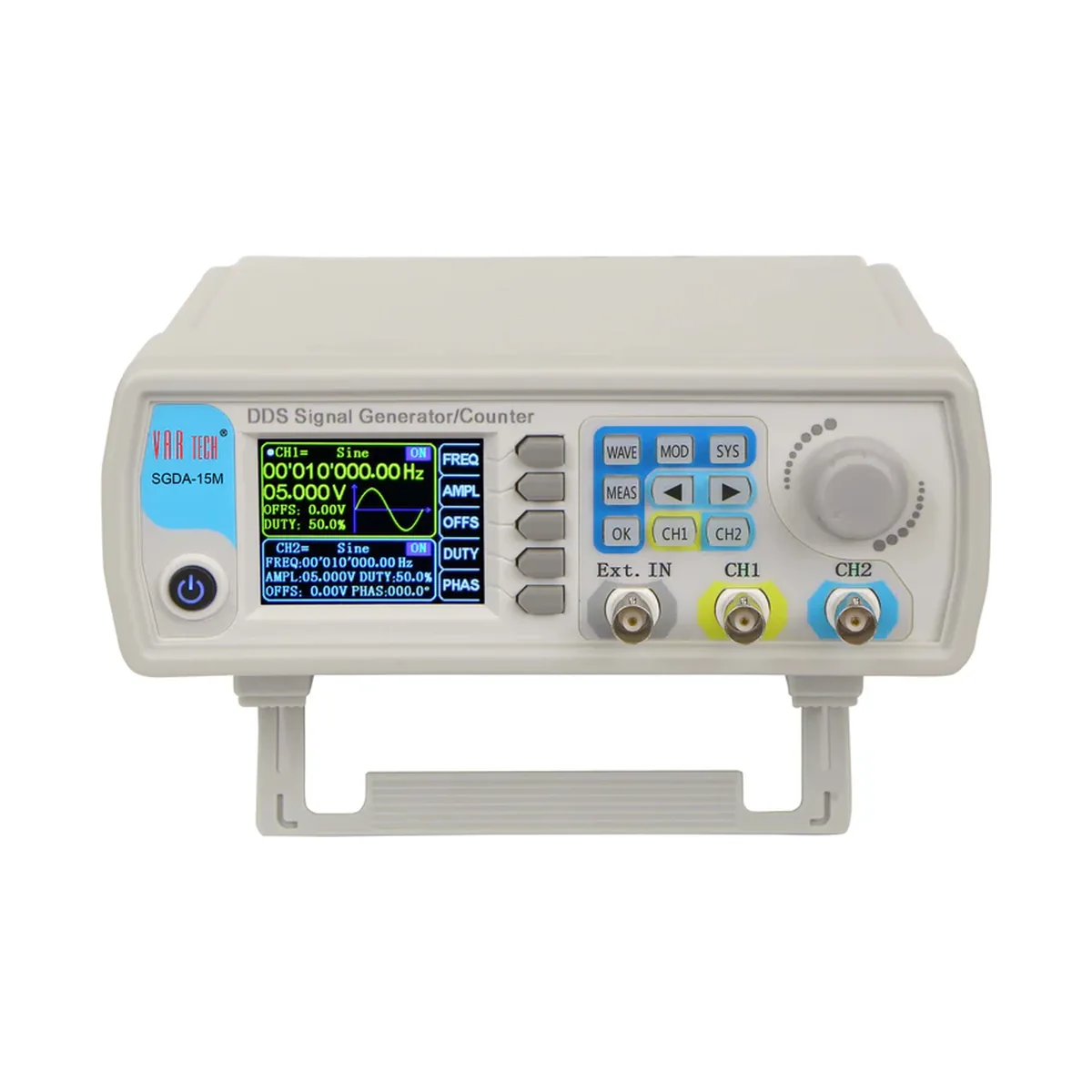

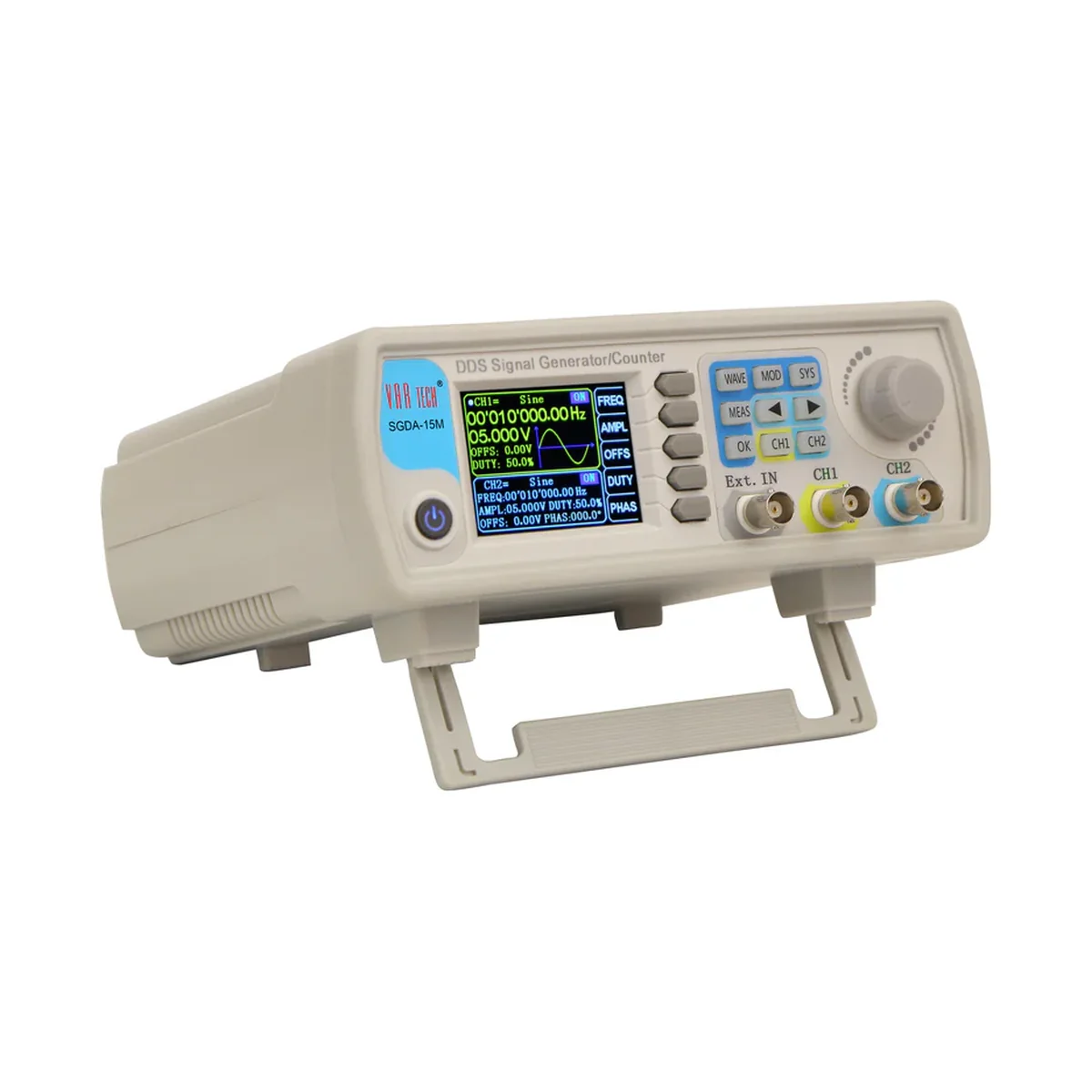

15 MHz Function Generator
Model SGDA 15M
SIGNAL GENERATOR (DDS, FUNCTION), 15 MHz Dual Channel, 2.4” TFT Color LCD Display, with USB Interface.
₹14,000₹23,00039% off
Inclusive of 18% GST
Added to cart. View cart ›
- GST tax invoice with every order
- Secure payment by UPI, card or netbanking
- Genuine Vartech product
About.
SIGNAL GENERATOR (DDS, FUNCTION), 15 MHz Dual Channel, 2.4” TFT Color LCD Display, with USB Interface. Accessory : Power Amplifier Modules
- Frequency Output (0.01μHz Resolution) : 15 MHz - Sine, Square & Triangle. 6 MHz - Pulse, TTL & Arbitrary.
- Waveforms : Sine, Square, Pulse (Adjustable Duty Cycle, Precise Adjustment of Pulse Width & Period), Triangular Wave, Partial Sine Wave, CMOS Wave, DC Level (Set DC Amplitude By Adjusting Offset), Half Wave, Full Wave, Positive Staircase Wave, Anti-Ladder Wave, Noise Wave, Exponential Rise, Exponential Drop, Multisonic Wave, Symplectic Pulse, Lorenz Pulse.
- 60 Arbitrary Waveforms
- Square Wave & Triangle Wave Frequency : ≤ 10MHz : 2mVpp ~ 20Vpp. Frequency ≥ 10MHz : 2mVpp ~ 5Vpp.
- Freq. Counter (Multi function) : Frequency Range : 1 Hz ~ 100 MHz.
- SPA-100K (100 KHz)
- SPA-10M (10 MHz)
Specifications.
- Output Channels
- 2 Channels
- Sampling Rate
- 266 MSa/S (Vertical Resolution - 14 Bits)
- Amplitude
- Sine Wave Frequency : ≤ 10MHz : 2mVpp ~ 20Vpp. Frequency ≥ 10MHz : 2mVpp ~ 10Vpp.
- Other Functions / Facilities
- D.C. Offset, Sweep (Lin. / Log.), Burst & Settings Store/Recall
- Display
- 2.4” TFT LCD

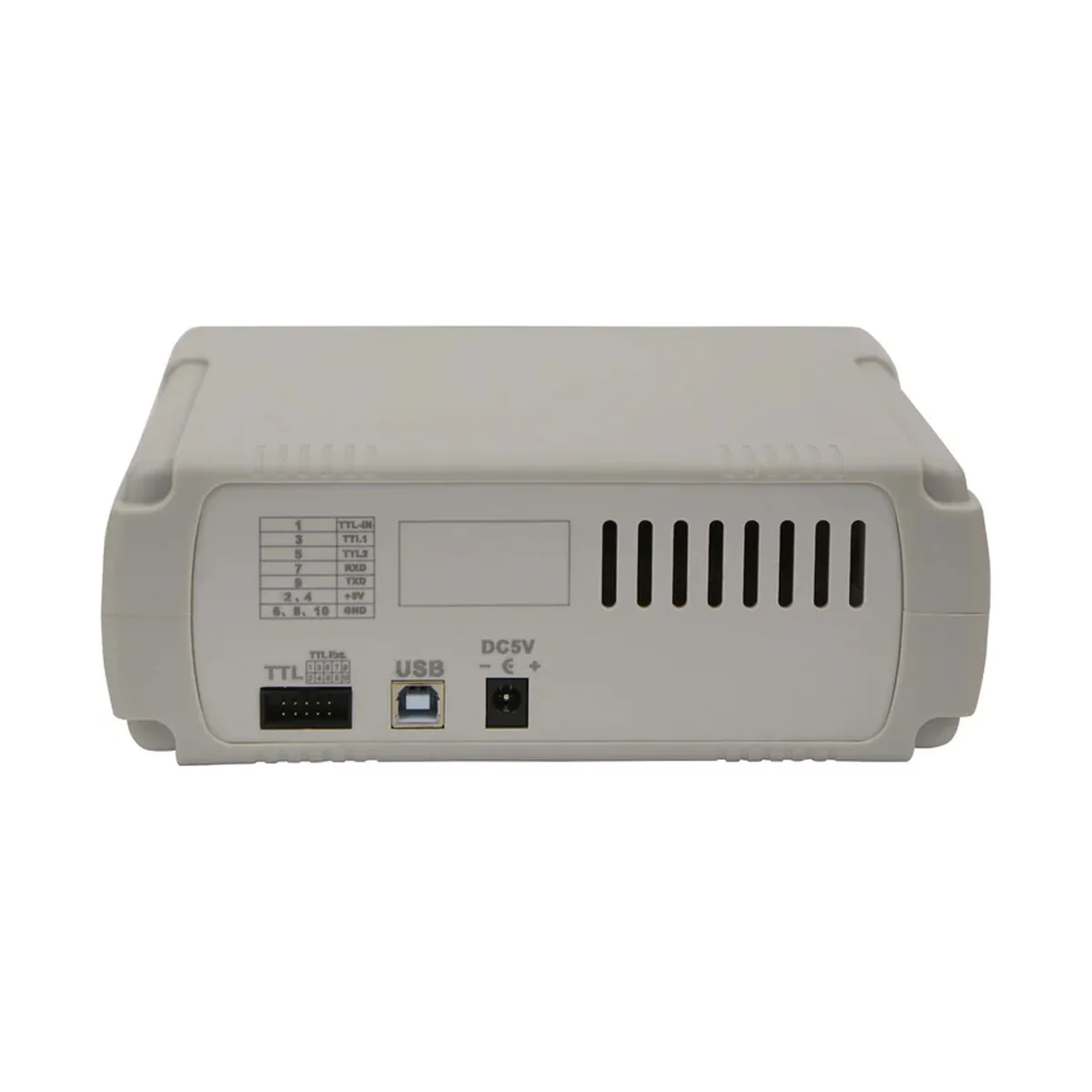

- Interface
- USB & TTL Ext
