Full Function Digital Multimeter True RMS 1000V AC/DC 20A

About.

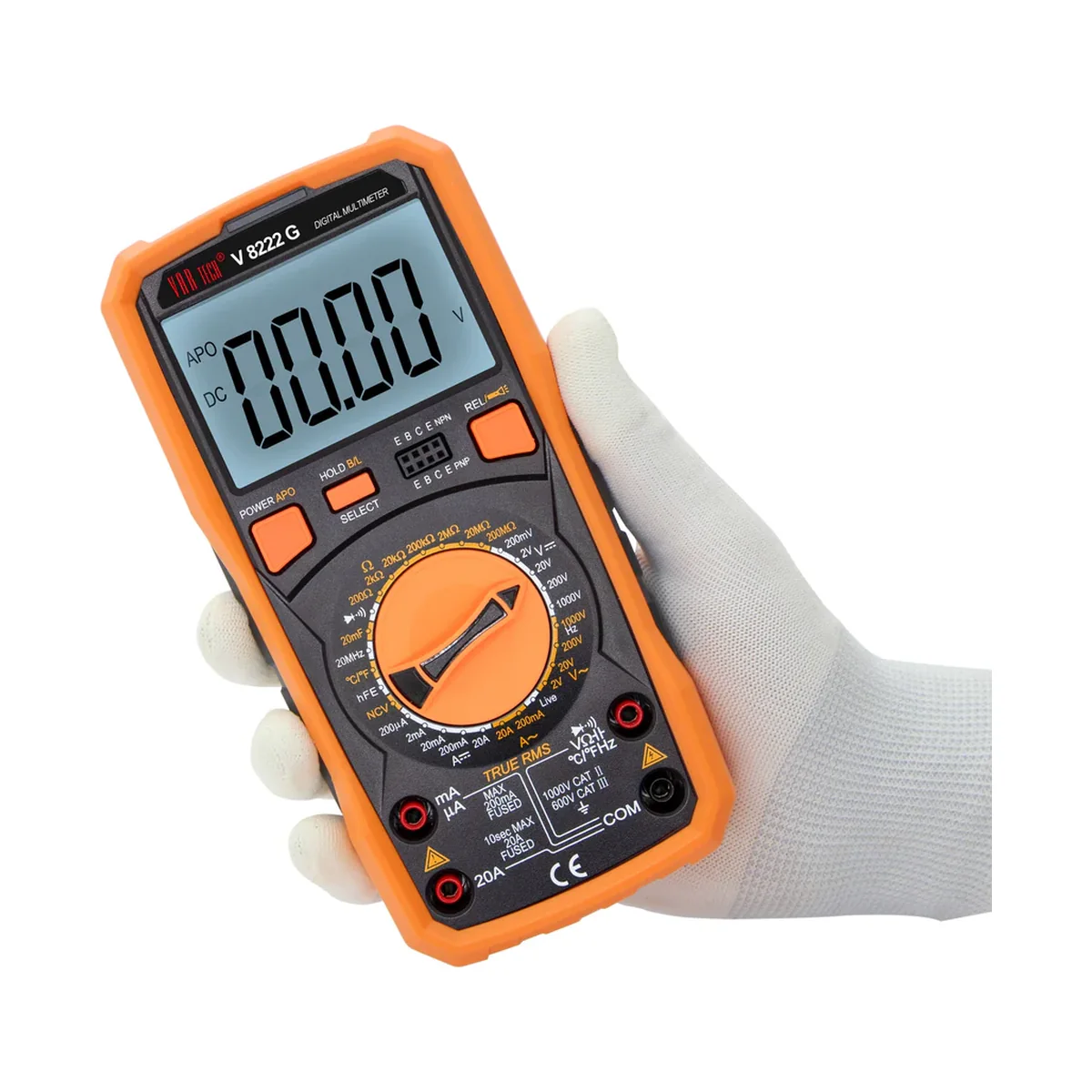

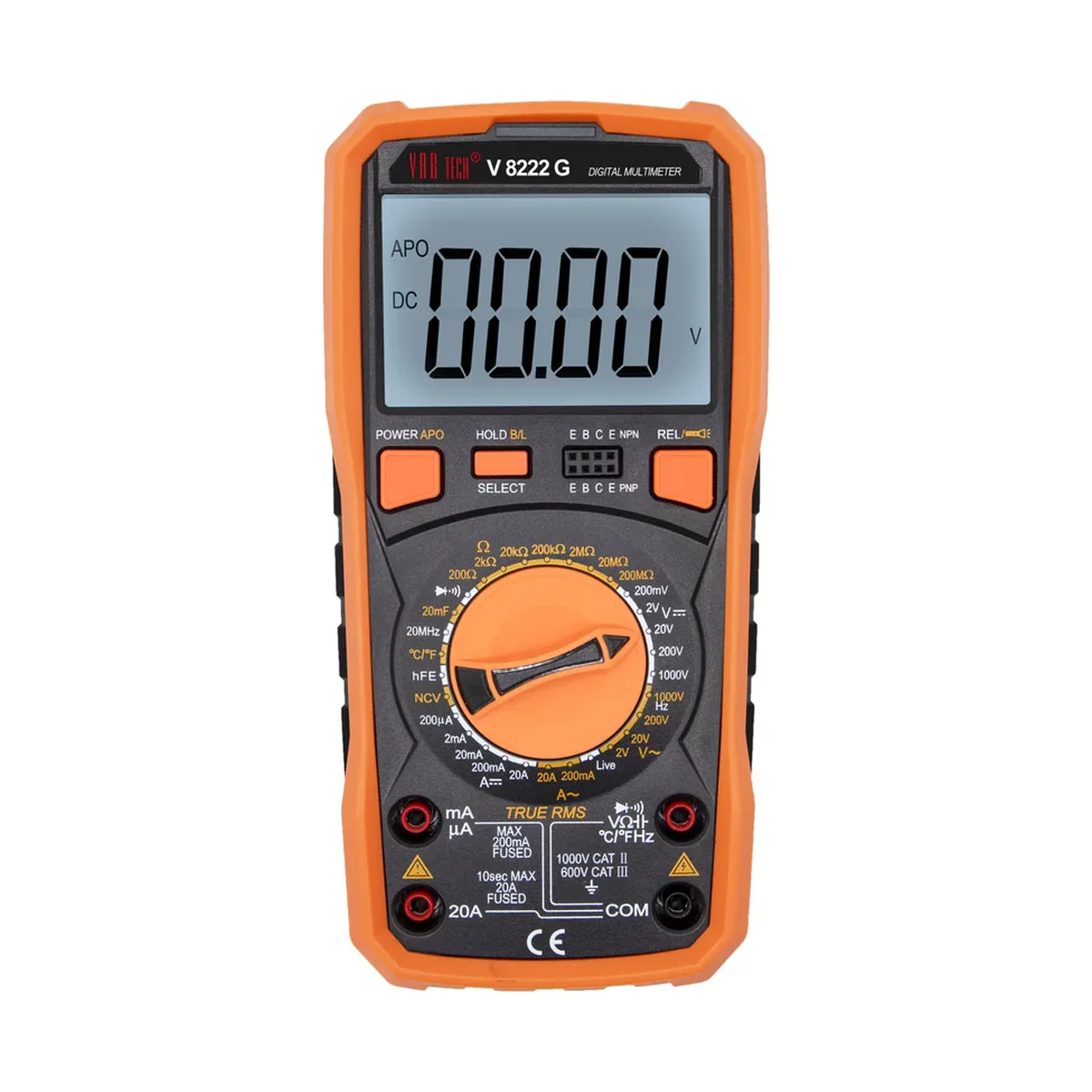

The Vartech V 8222 G is a heavy-duty True RMS digital multimeter designed for high-voltage electrical work where safety is the primary concern. Its standout capability is the combination of LIVE wire testing and Non-Contact Voltage (NCV) detection with simultaneous audio and visual indication - making it the safest choice for panel testing, switchgear inspection and MV/LV distribution work where live conductors must be positively identified before making contact. With 1000 V AC/DC, 20 A and auto-ranging capacitance and frequency measurement, it is the complete instrument for the high-voltage electrical professional.

• LIVE wire testing with NCV - audio and visual indication simultaneously; positively identifies energised conductors before contact, the most critical safety check in panel work
• True RMS up to 1000 V AC/DC - measures at the highest distribution voltages correctly, including on non-sinusoidal waveforms from UPS, generators and inverter systems
• Mains frequency measurement in the 1000 V AC range - verify supply frequency directly at HV panel terminals without stepping down to a lower voltage point
• Auto-ranging capacitance (6 nF to 20 mF) and frequency (10 Hz to 20 MHz) - broad measurement coverage without manual range selection
• 20 A AC/DC current measurement - suitable for motor feeds, feeder cables and heavy load testing
• Temperature measurement from −20 °C to 1000 °C - extends the meter into thermal and environmental diagnostics
• Transistor (hFE), diode and continuity test - component-level diagnosis built into a high-voltage field meter

Specifications.

Display

3½ Digits, 2000 Counts

True RMS

Yes

Ranging

Manual (Capacitance & Frequency: Auto)

DC Voltage

200 mV / 2 V / 20 V / 200 V / 1000 V | Accuracy: ±(0.5% rdg + 3 digits)

AC Voltage (True RMS)

2 V / 20 V / 200 V / 1000 V | Accuracy: ±(0.8% rdg + 5 digits) | Mains frequency measurement in 1000 V AC range

DC Current

200 µA / 2 mA / 20 mA / 200 mA / 20 A | Accuracy: ±(1.2% rdg + 8 digits)

AC Current (True RMS)

200 mA / 20 A | Accuracy: ±(1.5% rdg + 15 digits)

Resistance

200 Ω / 2 KΩ / 20 KΩ / 200 KΩ / 2 MΩ / 20 MΩ / 200 MΩ | Accuracy: ±(0.8% rdg + 3 digits)

Capacitance (Auto)

6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 20 mF | Accuracy: ±(3.5% rdg + 20 digits)

Frequency (Auto)

10 Hz / 100 Hz / 1 KHz / 10 KHz / 100 KHz / 1 MHz / 20 MHz | Accuracy: ±(1% rdg + 10 digits)

Temperature

−20 °C to 1000 °C (−4 °F to 1832 °F)

Other Functions

LIVE Wire Testing, NCV (Audio & Visual), Continuity, Diode Test, Transistor (hFE) Test, Backlight, Torch, Data Hold, Auto Power Off, REL Measurement, Low Battery Indicator

Accessories

Holster (installed), test leads, user manual, temperature probe, 4×AAA batteries

Dimensions & Weight

186 × 92 × 52 mm | ~395 g (with battery)
