Wireless Temperature Sensor

About.

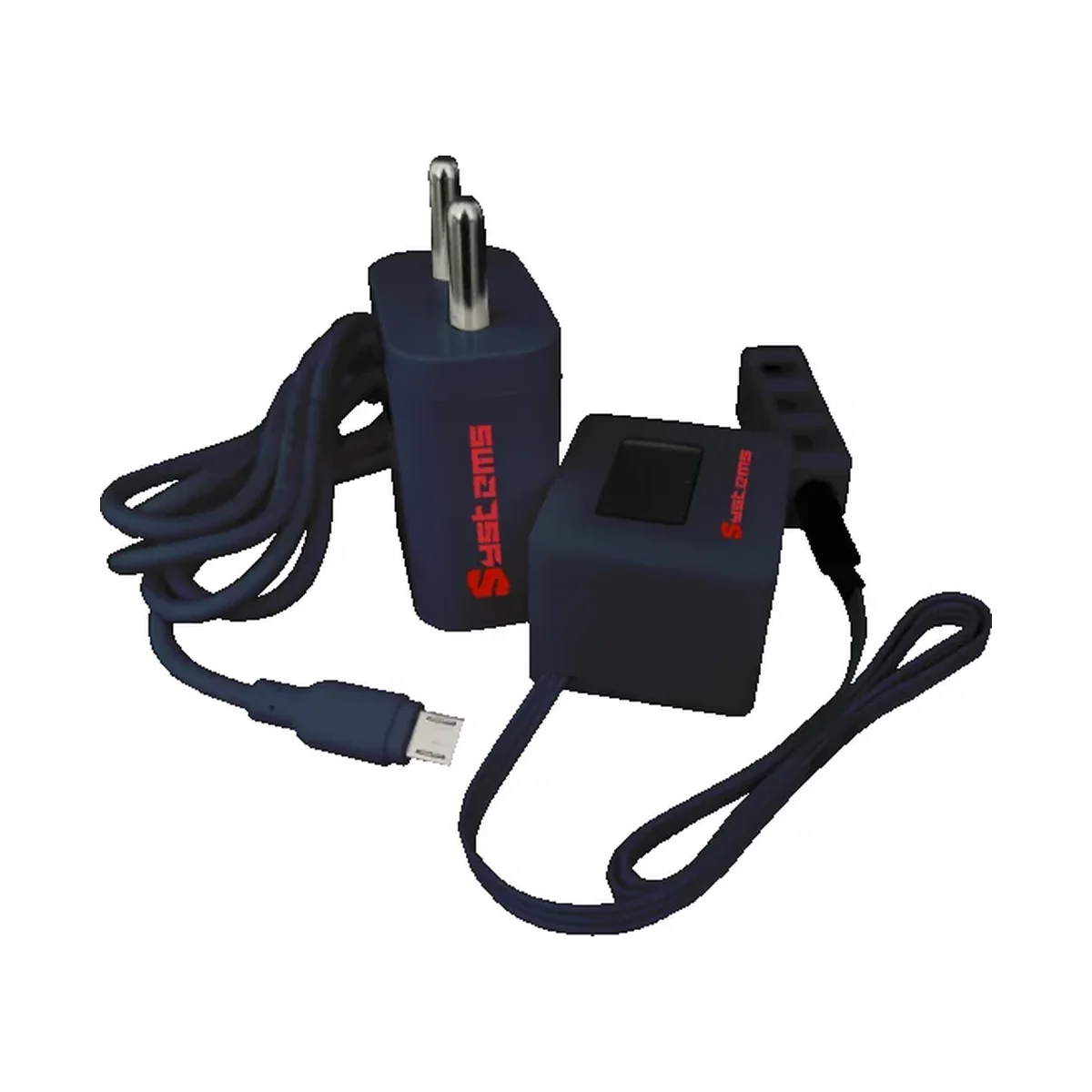

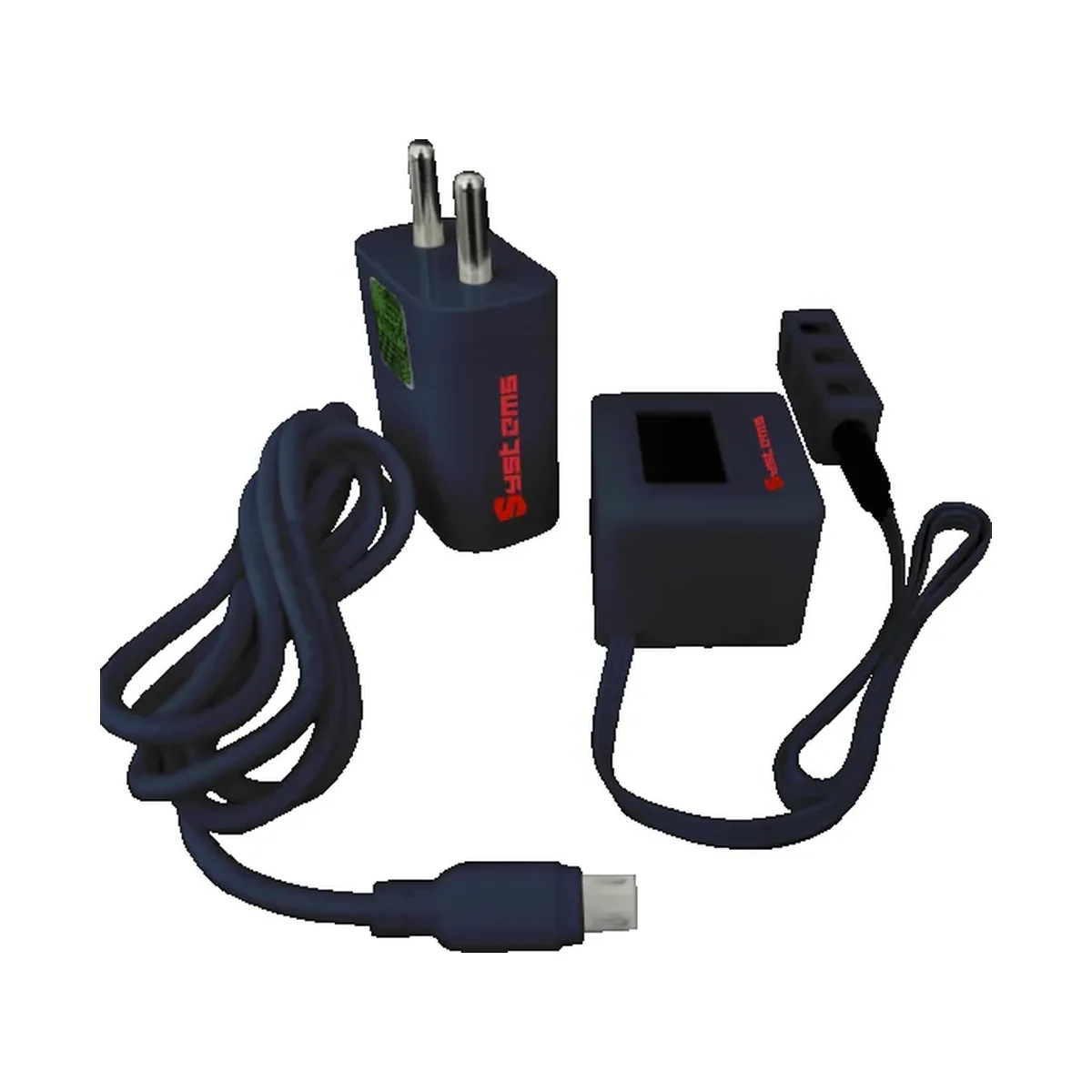

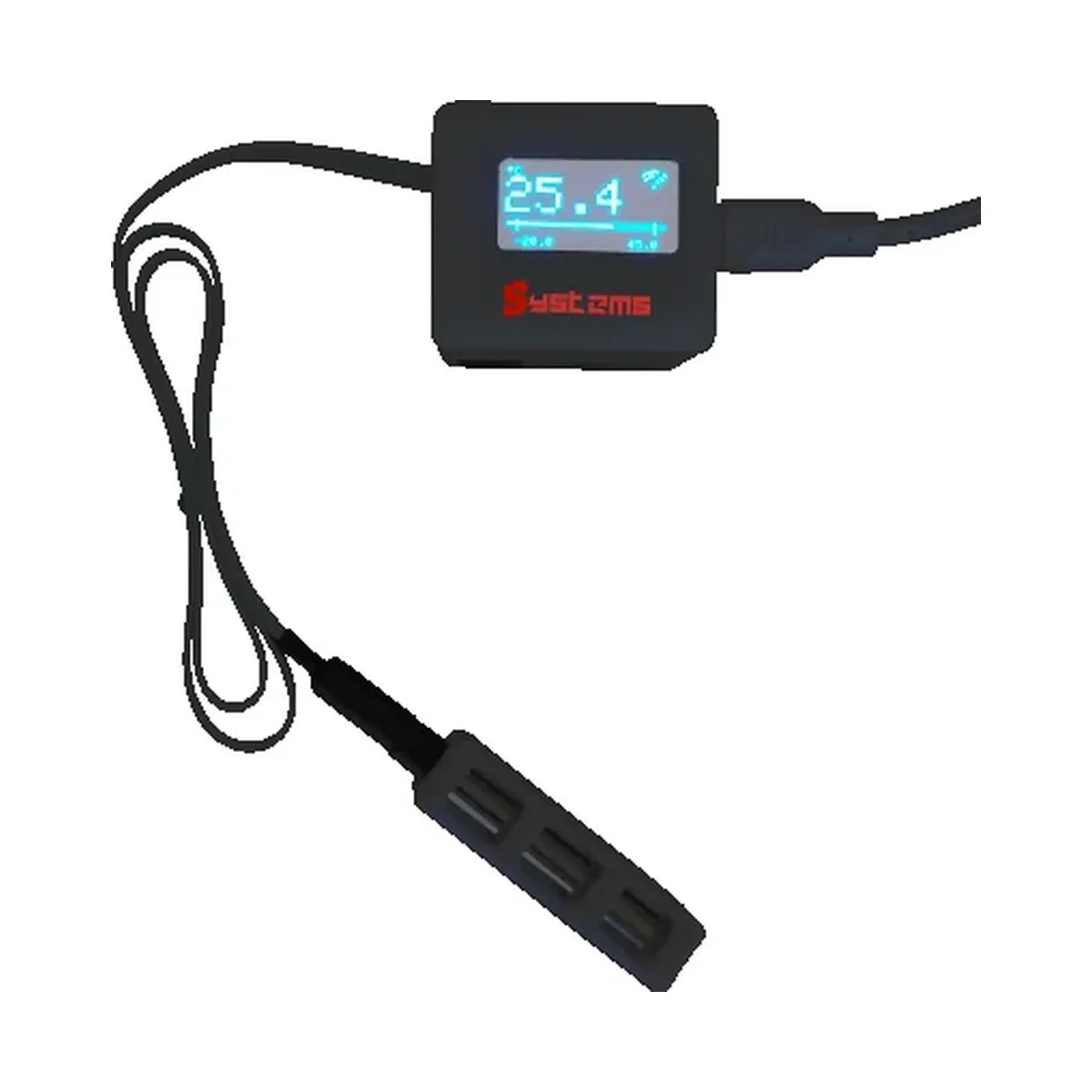

The Systems Tech TS-200 is a wireless, WiFi enabled temperature sensor for monitoring refrigeration units and similar equipment. A flat ribbon probe measures from -55 °C to +125 °C with 0.0625 °C resolution, and the unit sticks on the outside of the equipment with a double-sided sticker. It sounds a 70 dB audible alarm and flashes an alarm icon when the maximum or minimum threshold is crossed, and live readings can be integrated into other systems through the API. A LoRaWAN version is also available.

• Wireless, WiFi enabled (LoRaWAN version also available)
• Double-sided sticker for mounting on the outside of a refrigeration unit
• Audible and visual alarm on maximum or minimum temperature
• Real-time updates with API integration
• Power from micro USB, 5 V

Specifications.

Sensor range

Non-dust-proof probe: -40 °C to +125 °C; dust-proof probe: -55 °C to +125 °C

Accuracy

+/- 0.5 °C from -25 °C to +85 °C (standard probe); +/- 0.5 °C from -10 °C to +85 °C (dust-proof probe)

Resolution

0.0625 °C

Power

5 V DC micro USB (USB version, max 30 mA); 2200 mAh rechargeable battery (Li-Ion version only); 2 x AA alkaline (non-rechargeable versions)

Sensor cable

50 cm flat ribbon cable

Processor

32-bit, 80 MHz, 2.4 GHz WiFi

Measurement interval

60 s

Transmission trigger

Temperature change of +/- 1 °C

Alarm thresholds

Max and min configurable (defaults 30 °C and -20 °C)

Alarm

Audio 70 dB (min) sweep tone, flashing screen with alarm icon
