Digital Panel Mount Tachometer with Digital Tachogenerator
Model TM-801
96 mm square panel RPM indicator, 60 to 50,000 RPM, supplied with a 60 PPR digital tachogenerator.
₹6,370₹10,38039% off
Inclusive of 18% GST
- Range
- 60 RPM to 50,000 RPM
- Display
- 5 digits, 12.5 mm (0.5 in) red LED
- Accuracy
- +/- 0.05% + 1 least count
- Sampling rate
- 1 sample per second
Not sure this is the right one?
Tell us the job. We will tell you the instrument. Business and bulk orders welcome.
- GST tax invoice with every order
- Secure payment by UPI, card or netbanking
- Genuine Systems Tech product
About.

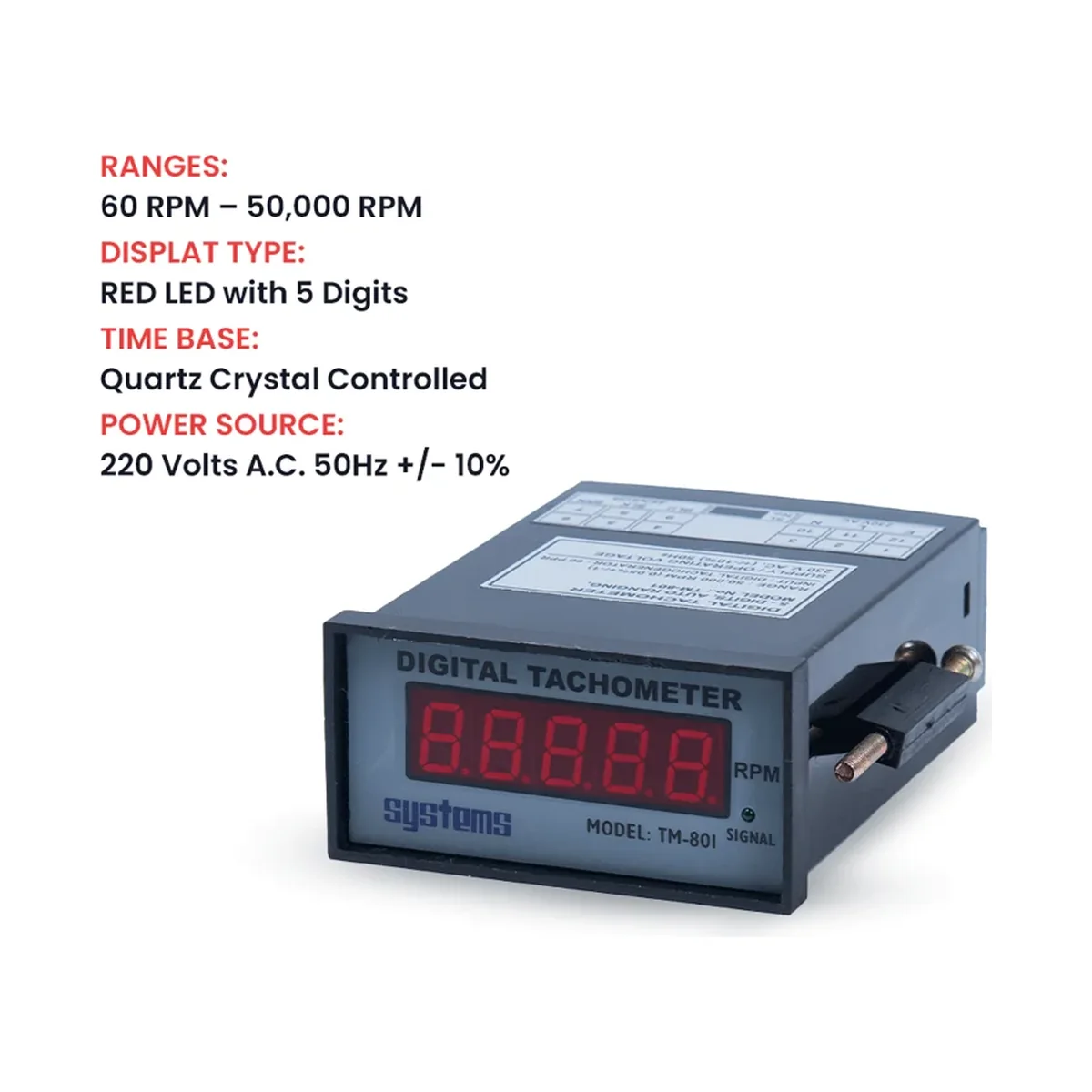

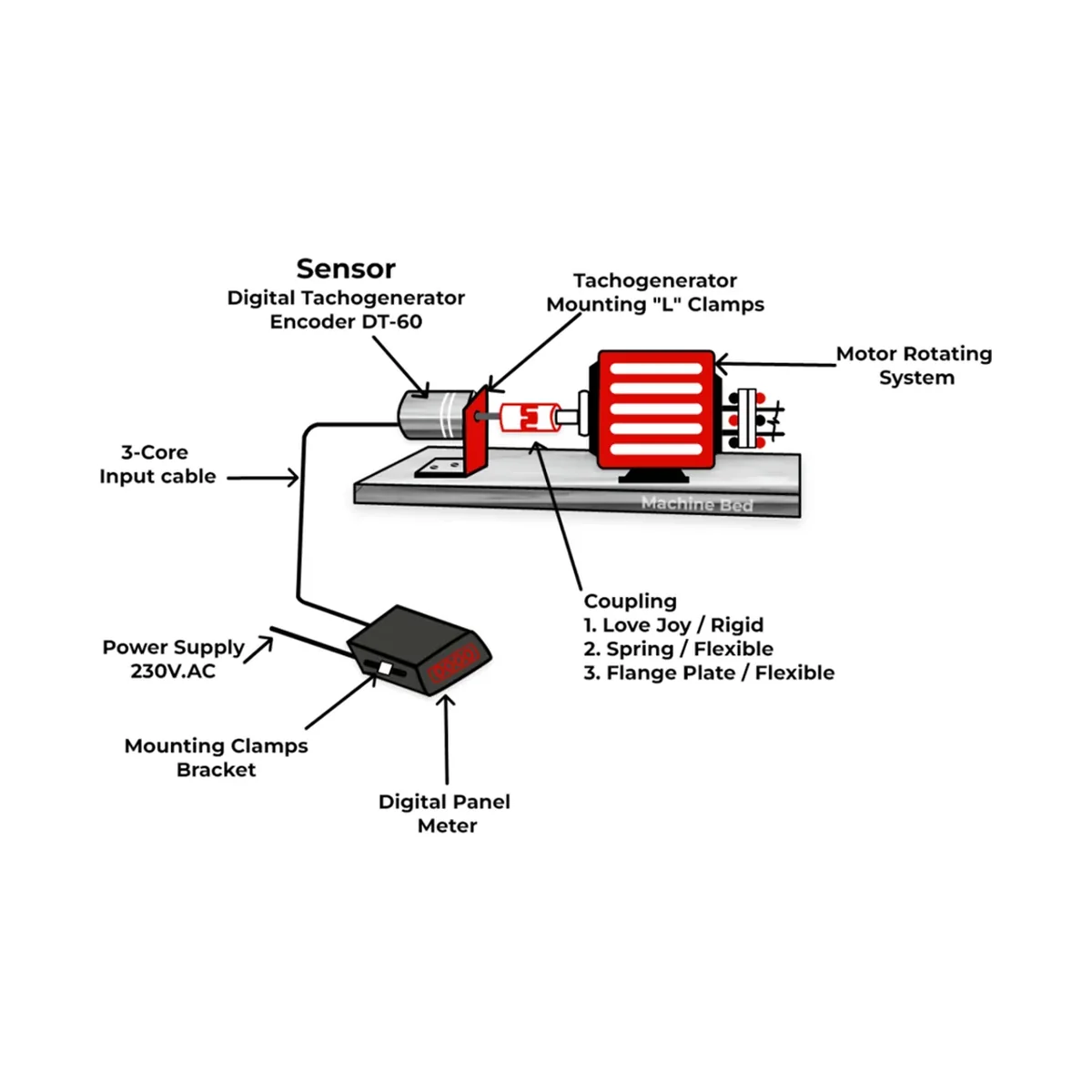

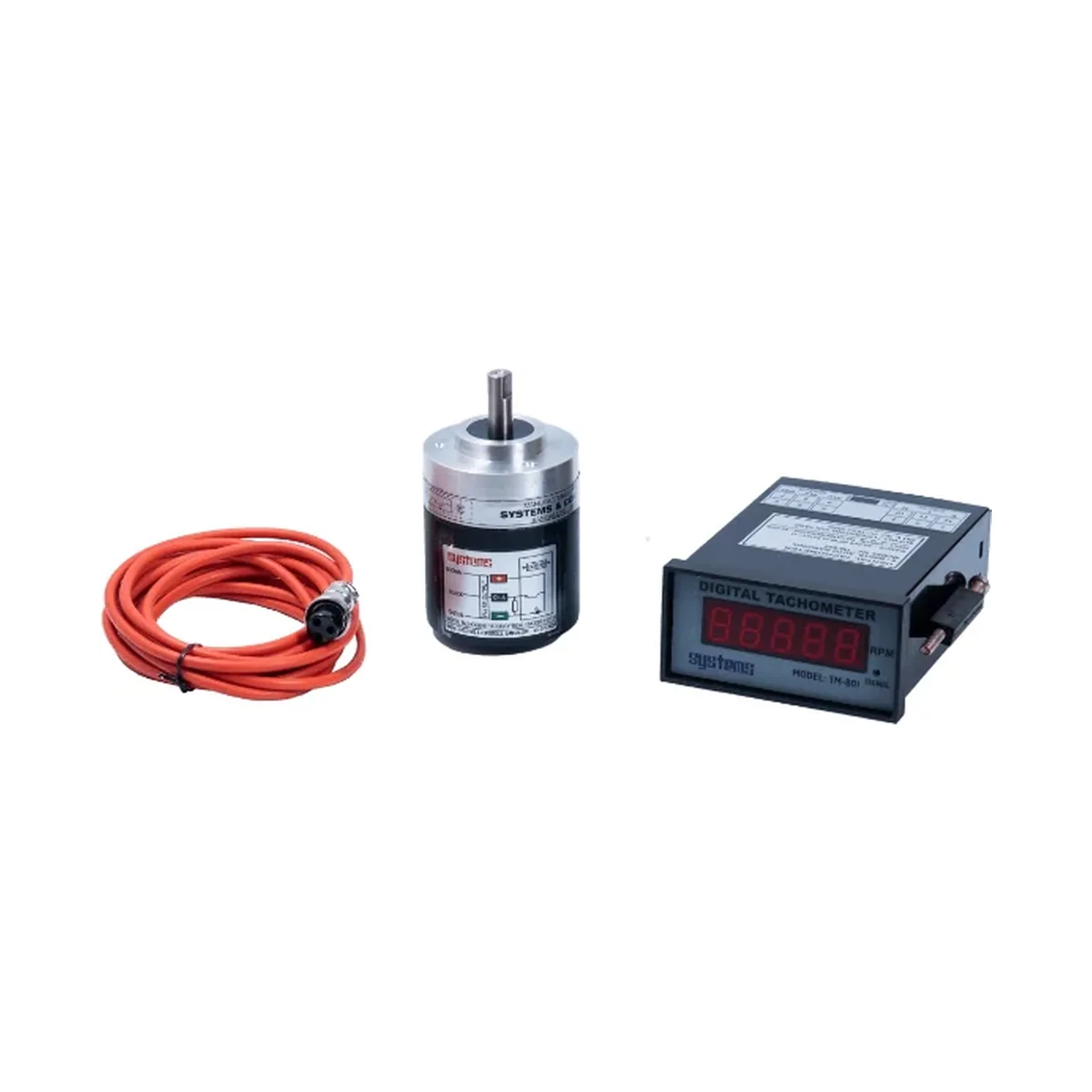

The Systems Tech TM-801 is a digital panel mount tachometer supplied with a digital tachogenerator (optical encoder). The tachogenerator is coupled to the shaft of the drive, gives 60 pulses per revolution (TTL compatible) and the meter converts this to a 5-digit RPM reading from 60 to 50,000 RPM. It is used to monitor motors, mixers, pumps and other rotary equipment, and is supplied with the tachogenerator, a 3 metre shielded cable with connectors and an instruction manual.
- Full digital, micro-controller design with auto-ranging
- Quartz crystal time base
- 5-digit 12.5 mm red LED display

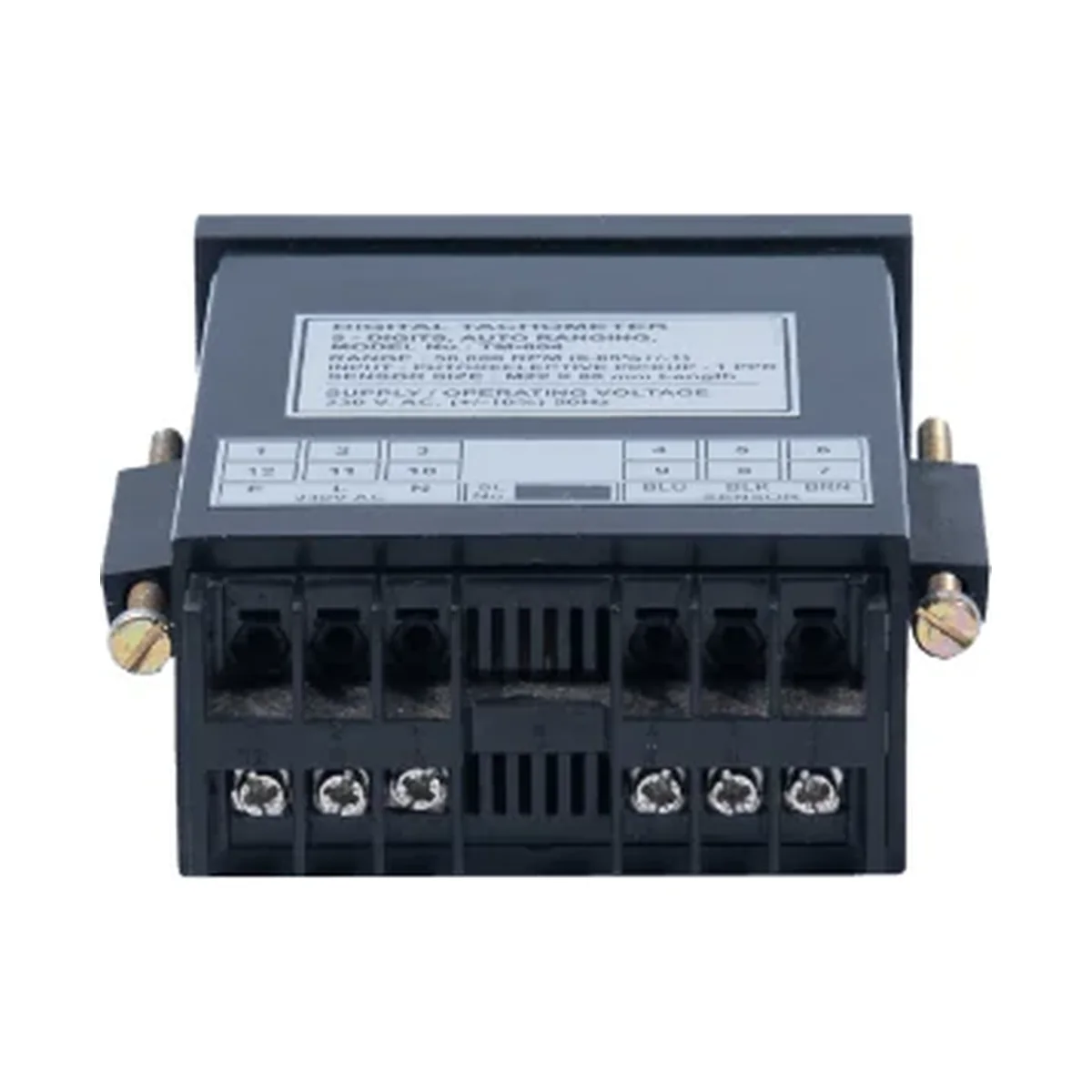

- 96 mm square panel mount case

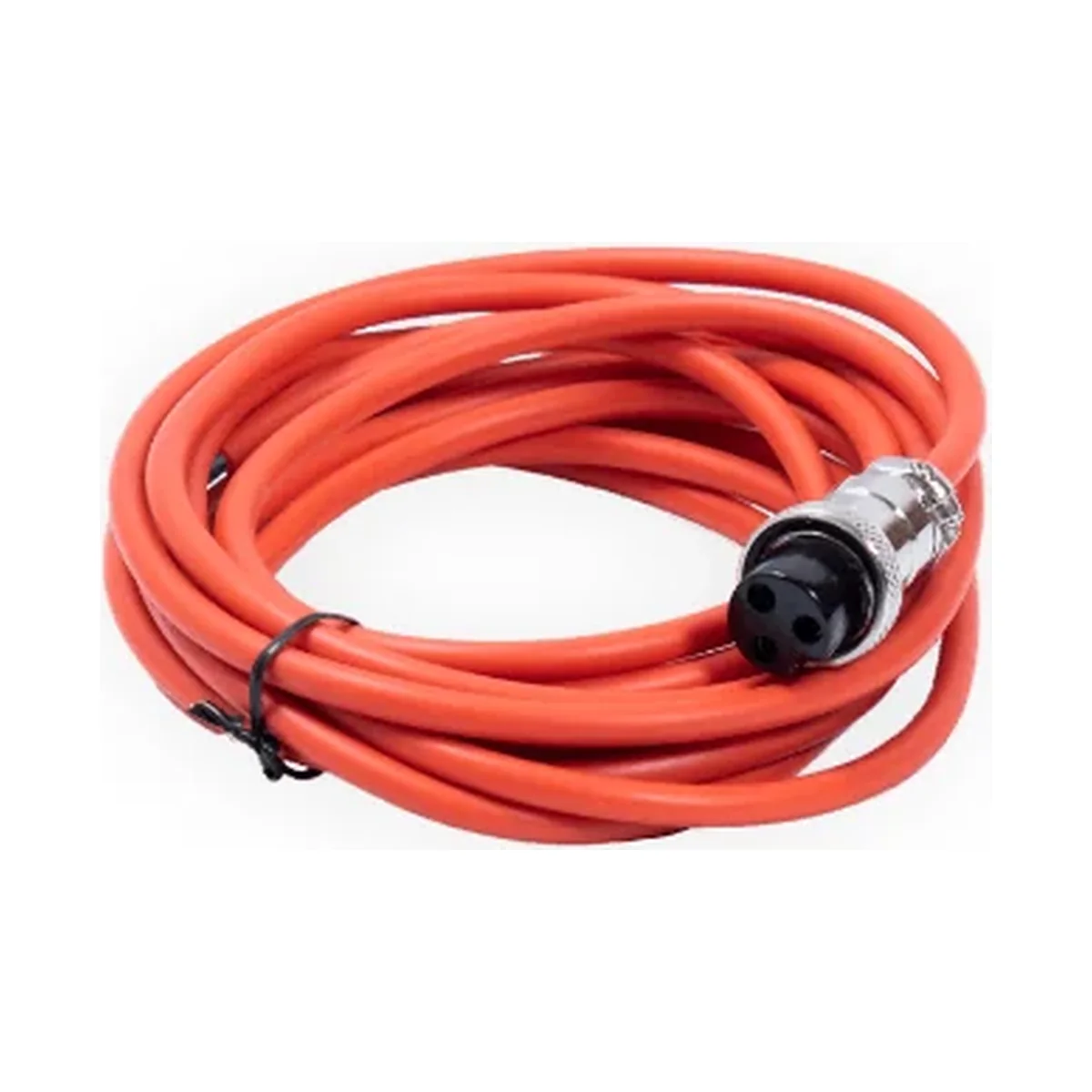

- Sensor and 3 metre shielded cable supplied

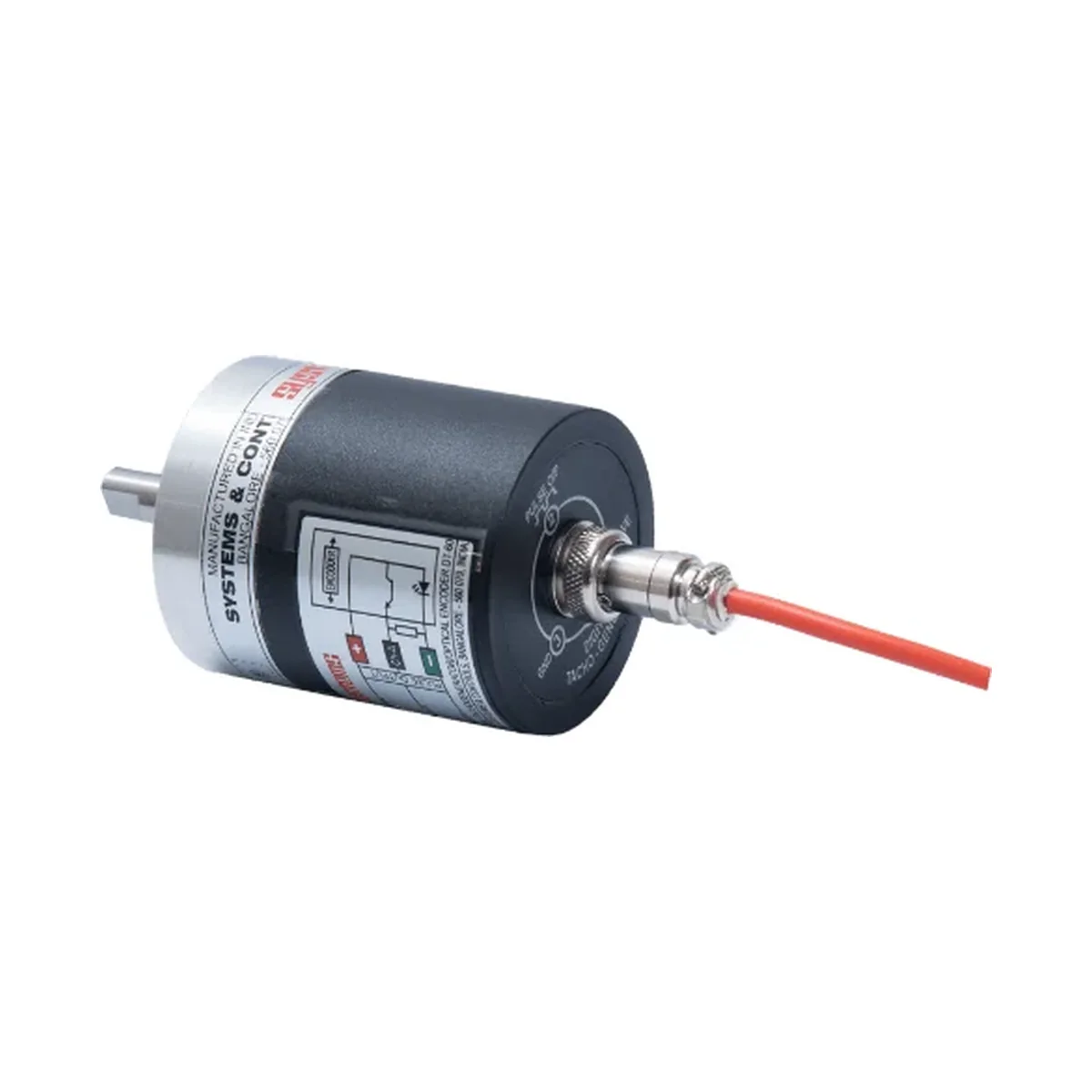

- Digital tachogenerator, 60 PPR, face mounting, 65 mm housing, 10 mm stainless steel shaft
Specifications.
- Range
- 60 RPM to 50,000 RPM
- Resolution
- 0.1 RPM from 60 to 1000 RPM; 1 RPM from 1000 to 50,000 RPM
- Display
- 5 digits, 12.5 mm (0.5 in) red LED
- Accuracy
- +/- 0.05% + 1 least count
- Sampling rate
- 1 sample per second
- Time base
- Quartz crystal controlled
- Power source
- 220 V AC, 50 Hz +/- 10%
- Panel size
- 96 x 48 x 130 mm (96 mm square)
- Sensor
- Digital tachogenerator (optical encoder), 60 PPR, TTL compatible

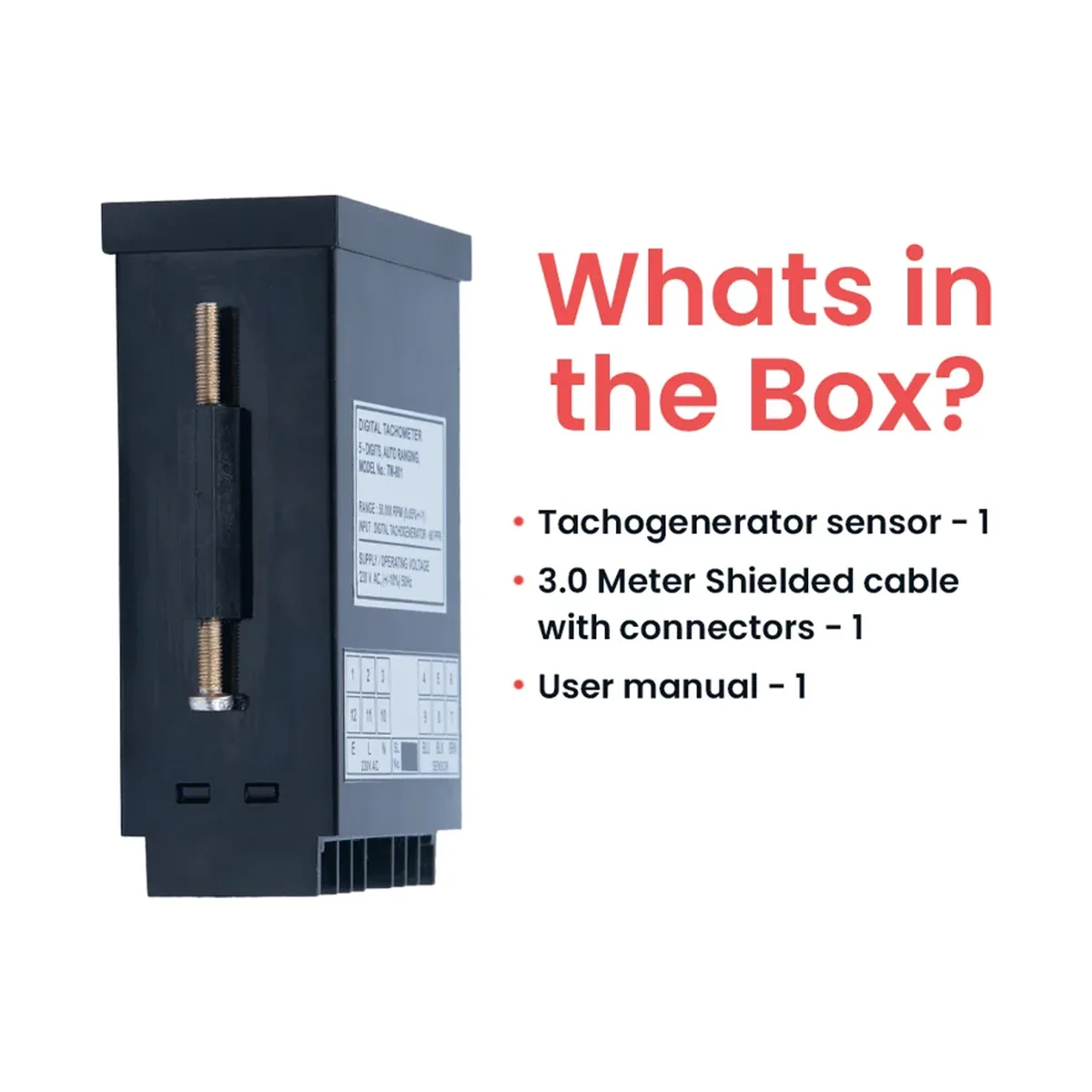

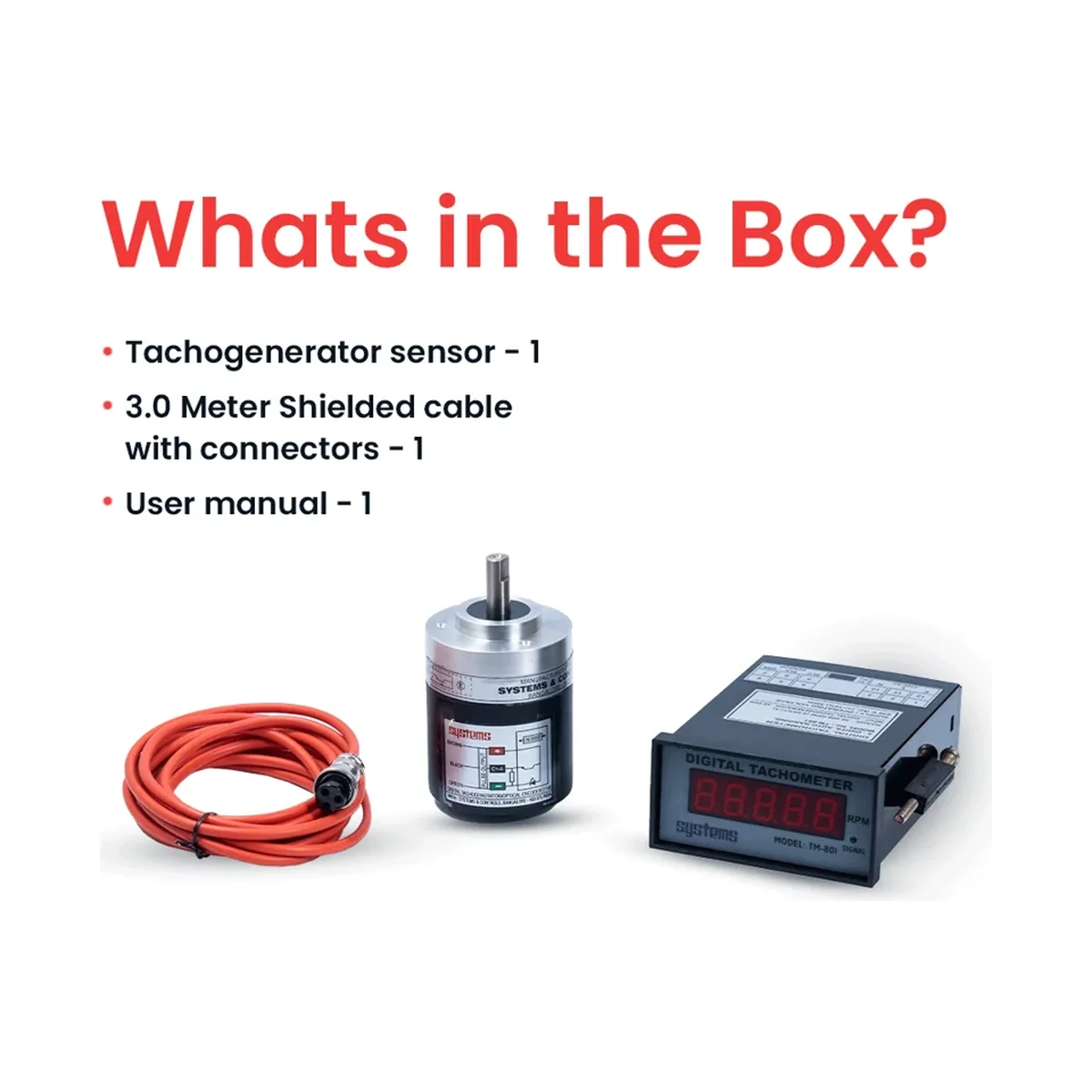

- Standard accessories
- Tachogenerator sensor with 3.0 m shielded cable and connectors, instruction manual
