Contact Type Digital Tachometer

About.

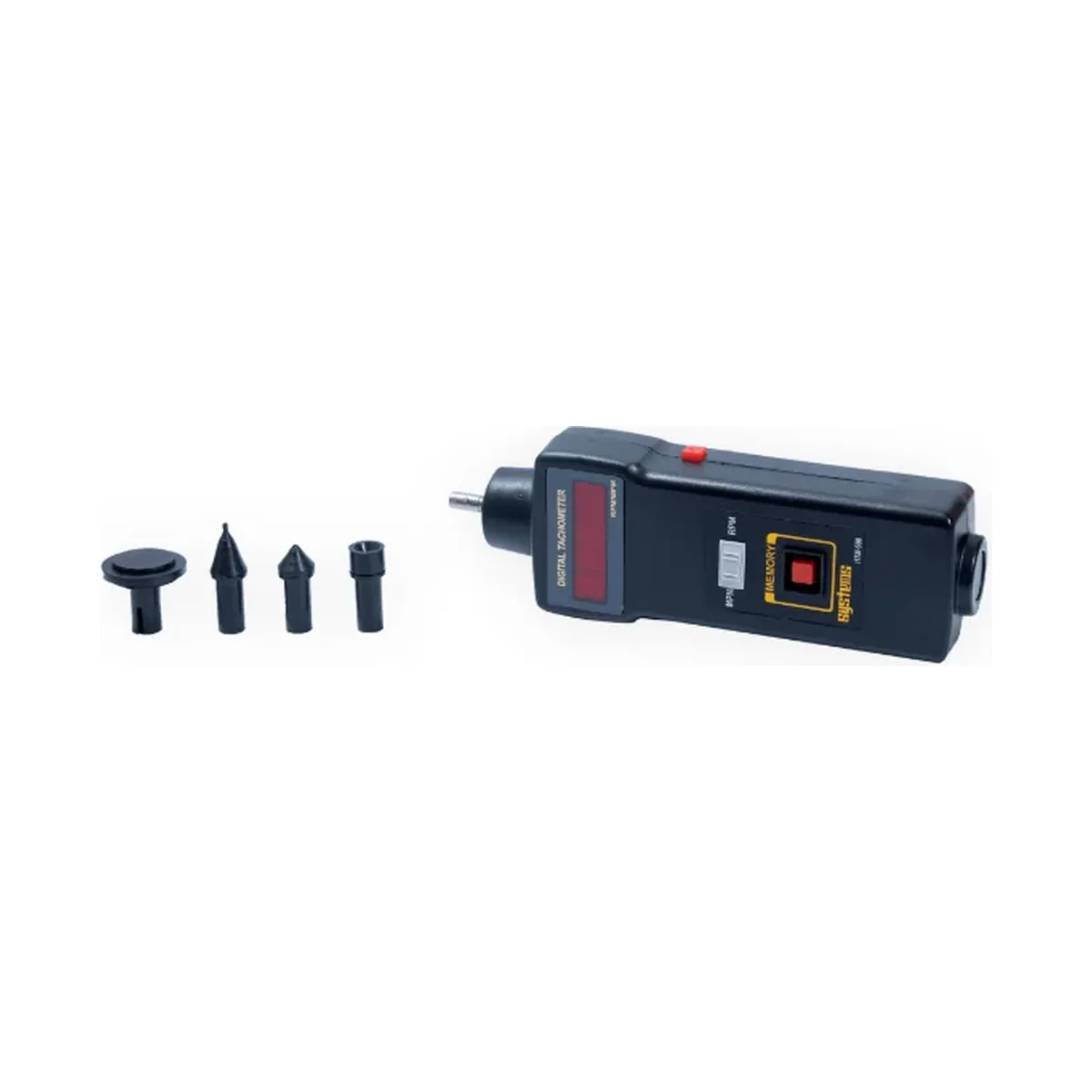

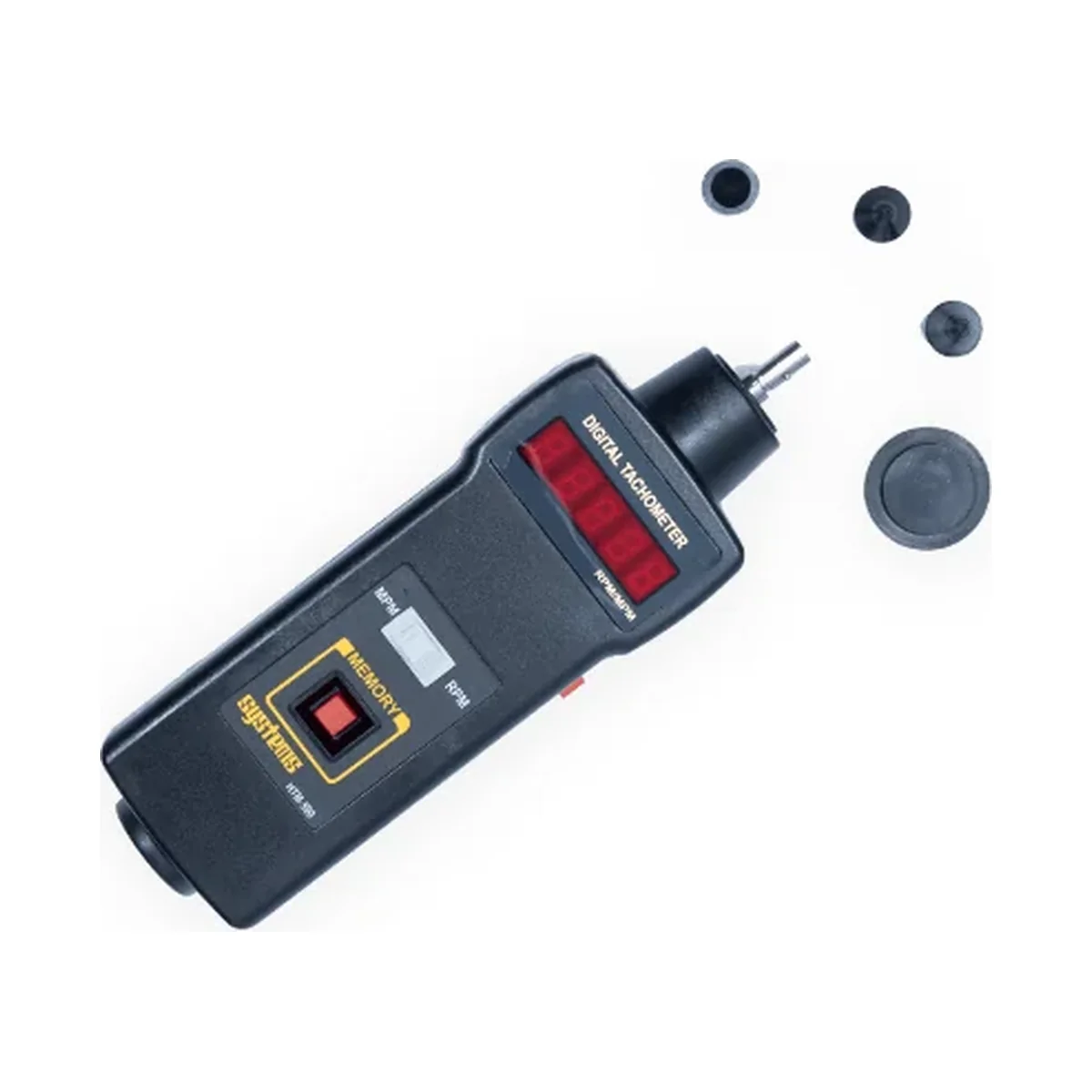

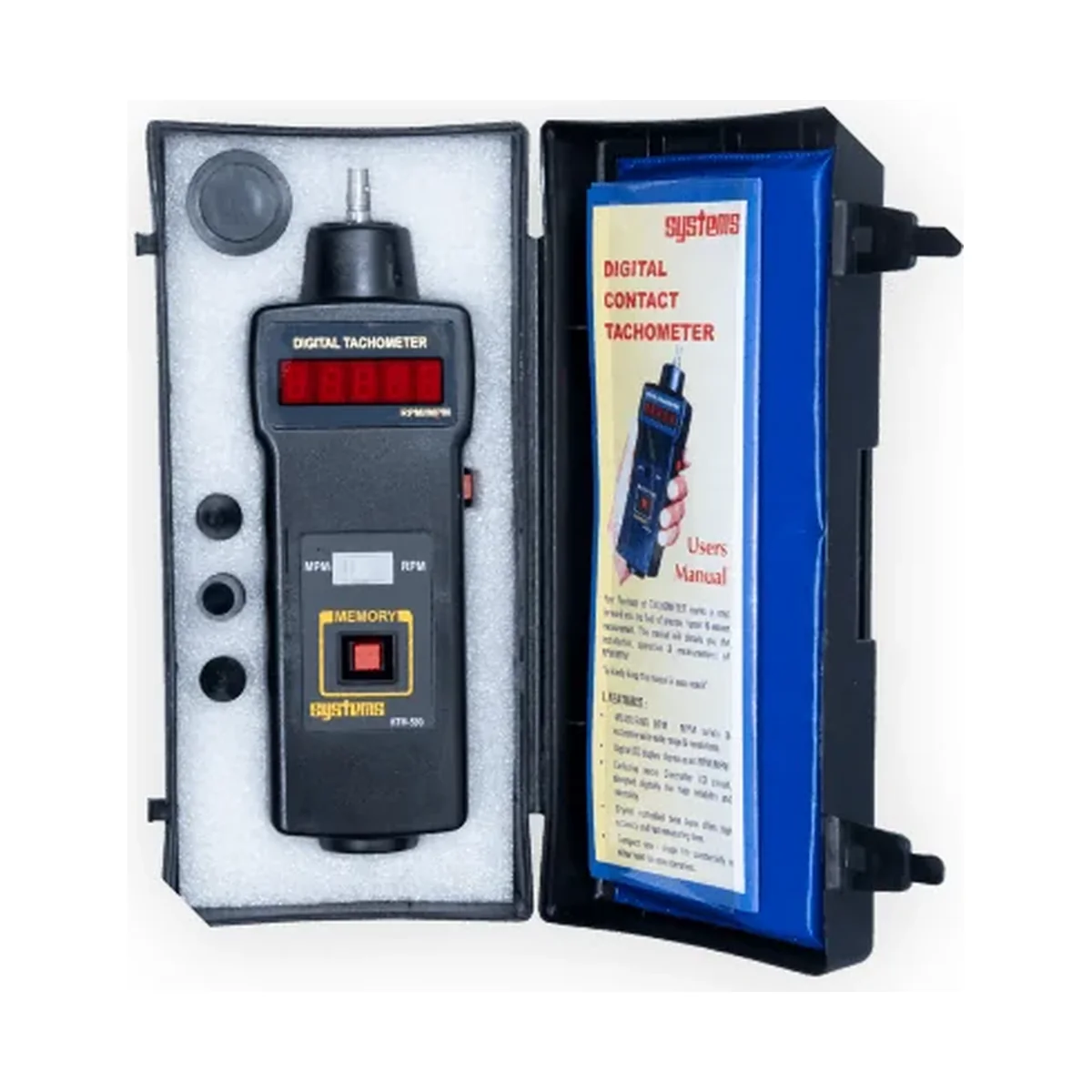

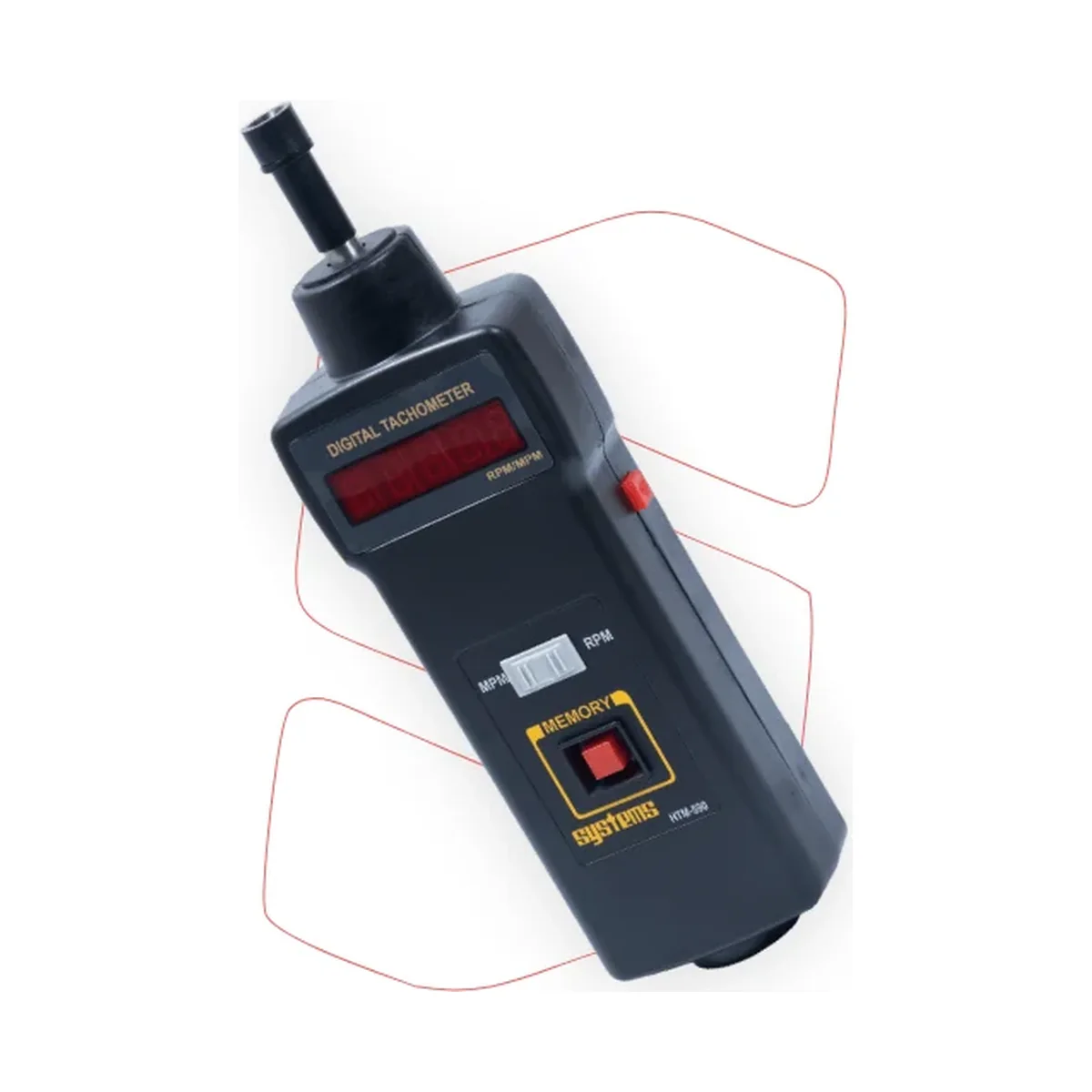

The Systems Tech HTM 590 is a handheld contact type digital tachometer. Pressed against the end of a rotating shaft with a rubber contact tip, it reads speed from 60 to 50,000 RPM, and with the peripheral tip it reads surface speed from 6 to 5000 m/min. A 5-digit red LED display, quartz crystal time base and automatic last, maximum and minimum memory make it a dependable service and maintenance tool for motors, fans, pumps and belts. It is supplied with male, female and peripheral rubber contact tips, reflective tape, a padded carrying case and a user manual.

• Full digital, micro-controller based design
• Quartz crystal time base, 0.05% + 1 digit accuracy
• Last, Max and Min readings stored and recalled automatically
• Compact handheld body with padded carrying case
• Contact RPM and surface speed (m/min) measurement

Specifications.

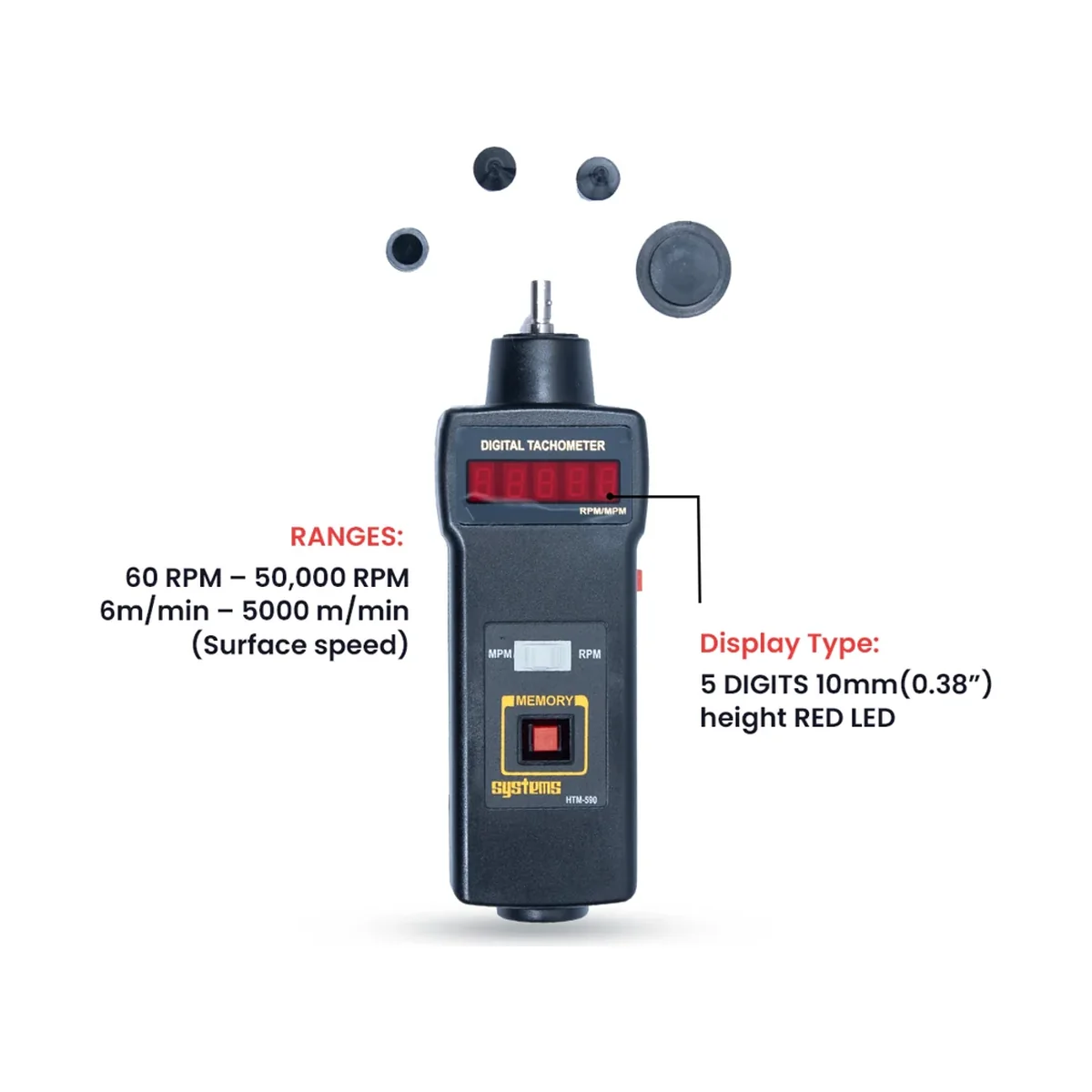

Range

60 RPM to 50,000 RPM; 6 m/min to 5000 m/min (surface speed)

Resolution

0.1 RPM up to 1000 RPM, 1 RPM above; 0.01 m/min up to 100 m/min, 0.1 m/min above

Display

5 digits, 10 mm (0.38 in) red LED

Accuracy

+/- 0.05% + 1 digit

Sampling rate

1 second

Time base

Quartz crystal controlled

Low battery

Indicated by "Lobat" on the display

Memory recall

Last, Max and Min values stored automatically, recall up to 120 s

Power source

4 x 1.5 V AA batteries, auto shut-off

Operating temperature

0 °C to 60 °C (32 °F to 140 °F)

Size

70 x 200 x 40 mm (2.8 x 7.8 x 1.6 in)

Battery life

90 hrs alkaline | 30 hrs carbon-zinc

Weight

320 g including batteries

Standard accessories

Male rubber contact tip x 2, female rubber contact tip x 2, peripheral rubber contact tip, reflective tape, padded carrying case, user manual
