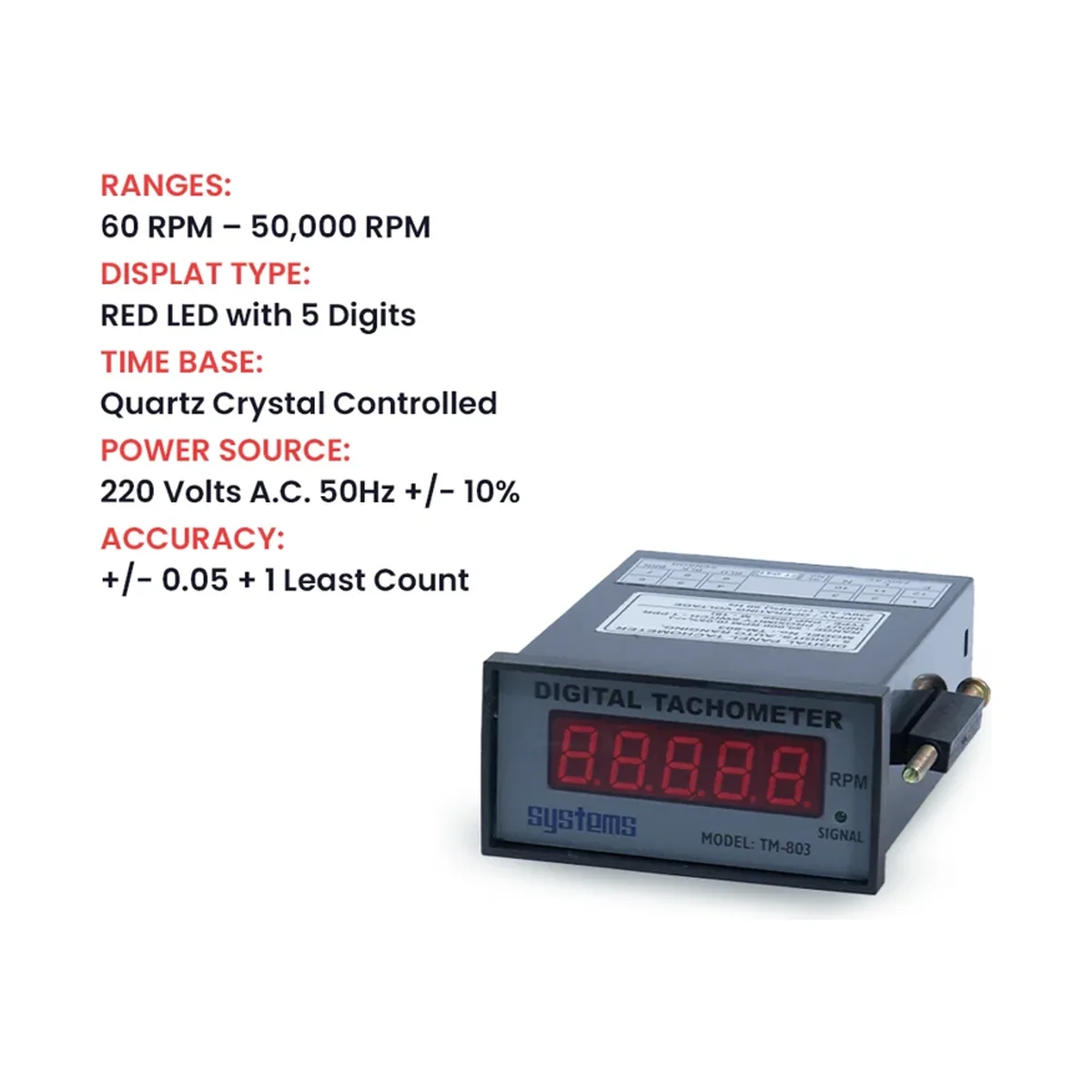

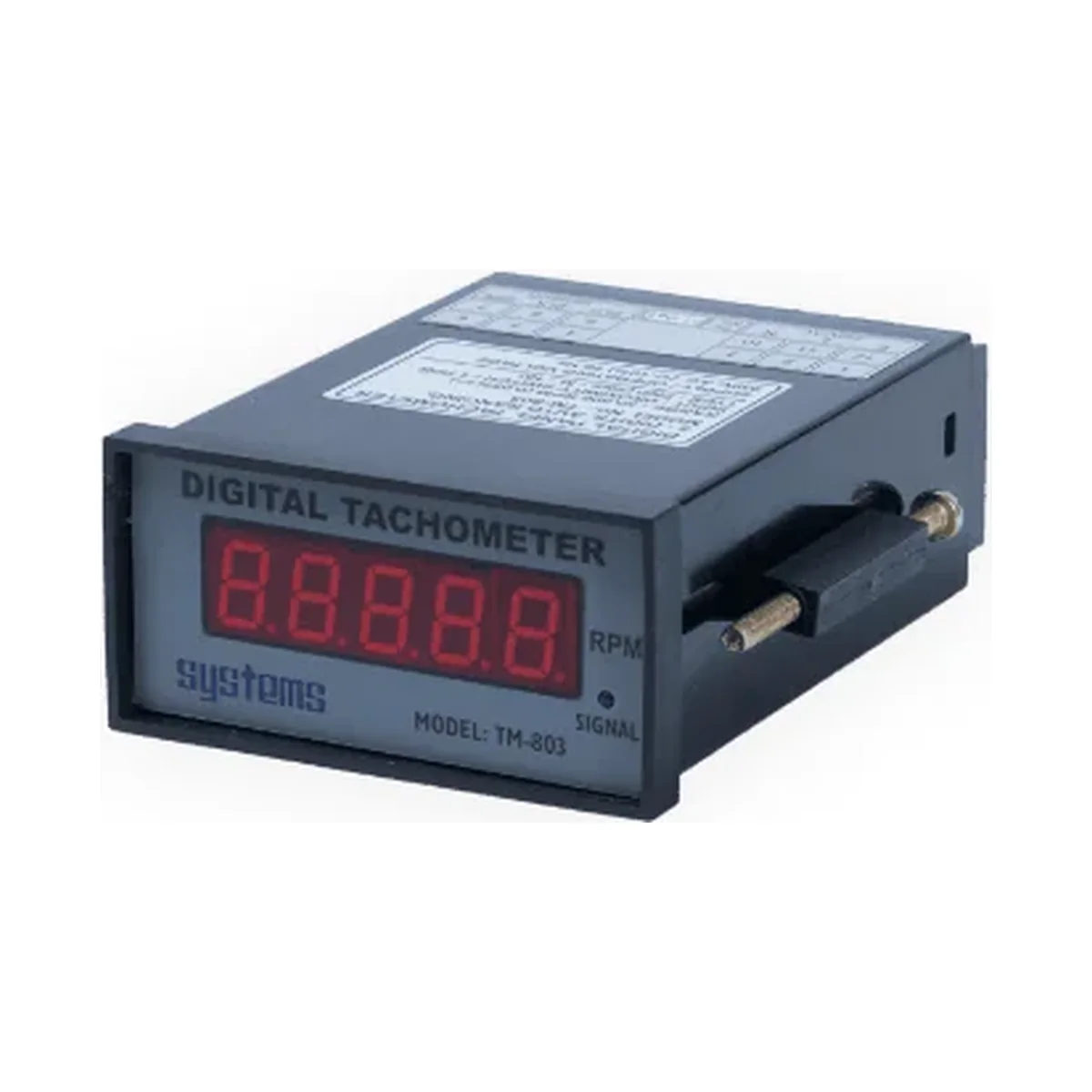

Digital Panel Mount Tachometer with Proximity Switch
Model TM-803
96 mm square panel RPM indicator, 60 to 50,000 RPM, supplied with an inductive proximity switch sensor.
₹3,950₹6,95043% off
Inclusive of 18% GST
- Range
- 60 RPM to 50,000 RPM
- Display
- 5 digits, 12.5 mm (0.5 in) red LED
- Accuracy
- +/- 0.05% + 1 least count
- Sampling rate
- 1 sample per second
Not sure this is the right one?
Tell us the job. We will tell you the instrument. Business and bulk orders welcome.
- GST tax invoice with every order
- Secure payment by UPI, card or netbanking
- Genuine Systems Tech product
About.

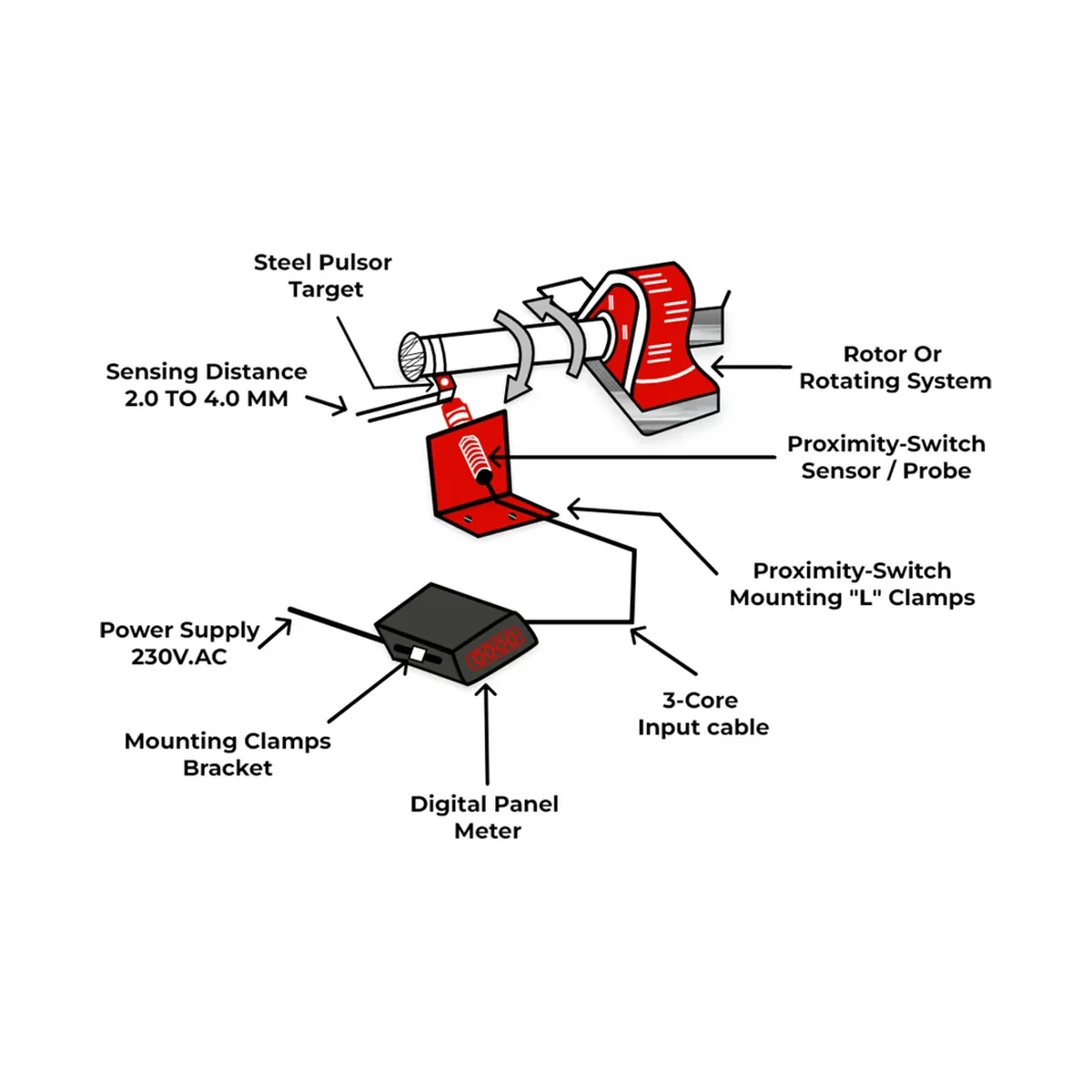

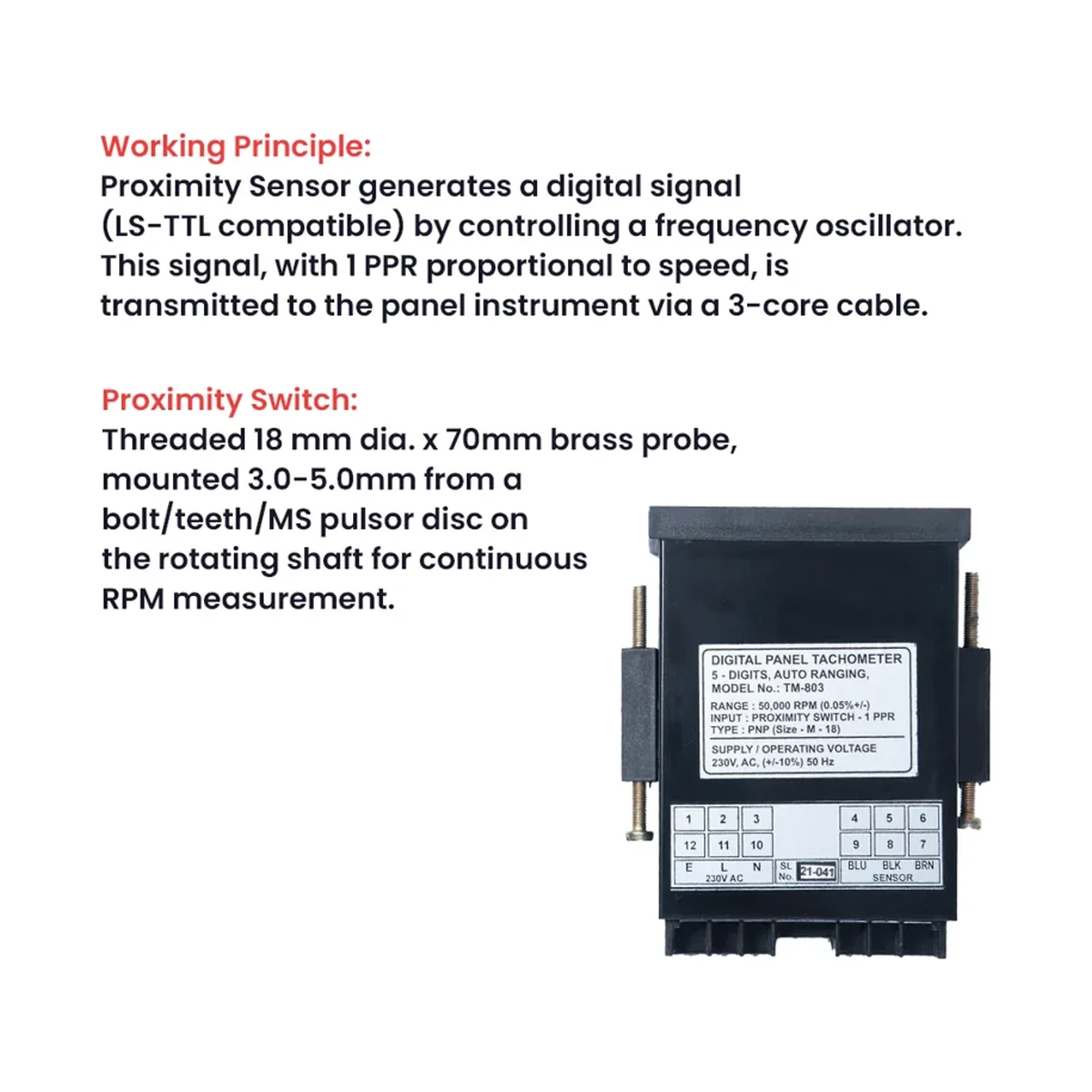

The Systems Tech TM-803 is a digital panel mount tachometer supplied with an inductive proximity switch (PNP or NPN). The 18 mm threaded probe is mounted 3.0 to 5.0 mm from a bolt, tooth or pulsor disc on the rotating shaft and gives one pulse per revolution, which the meter converts to RPM from 60 to 50,000 on a 5-digit LED display. It is supplied with the sensor, a 3 metre shielded cable with connectors and an instruction manual.
- Full digital, micro-controller design with auto-ranging
- Quartz crystal time base
- 5-digit 12.5 mm red LED display
- 96 mm square panel mount case

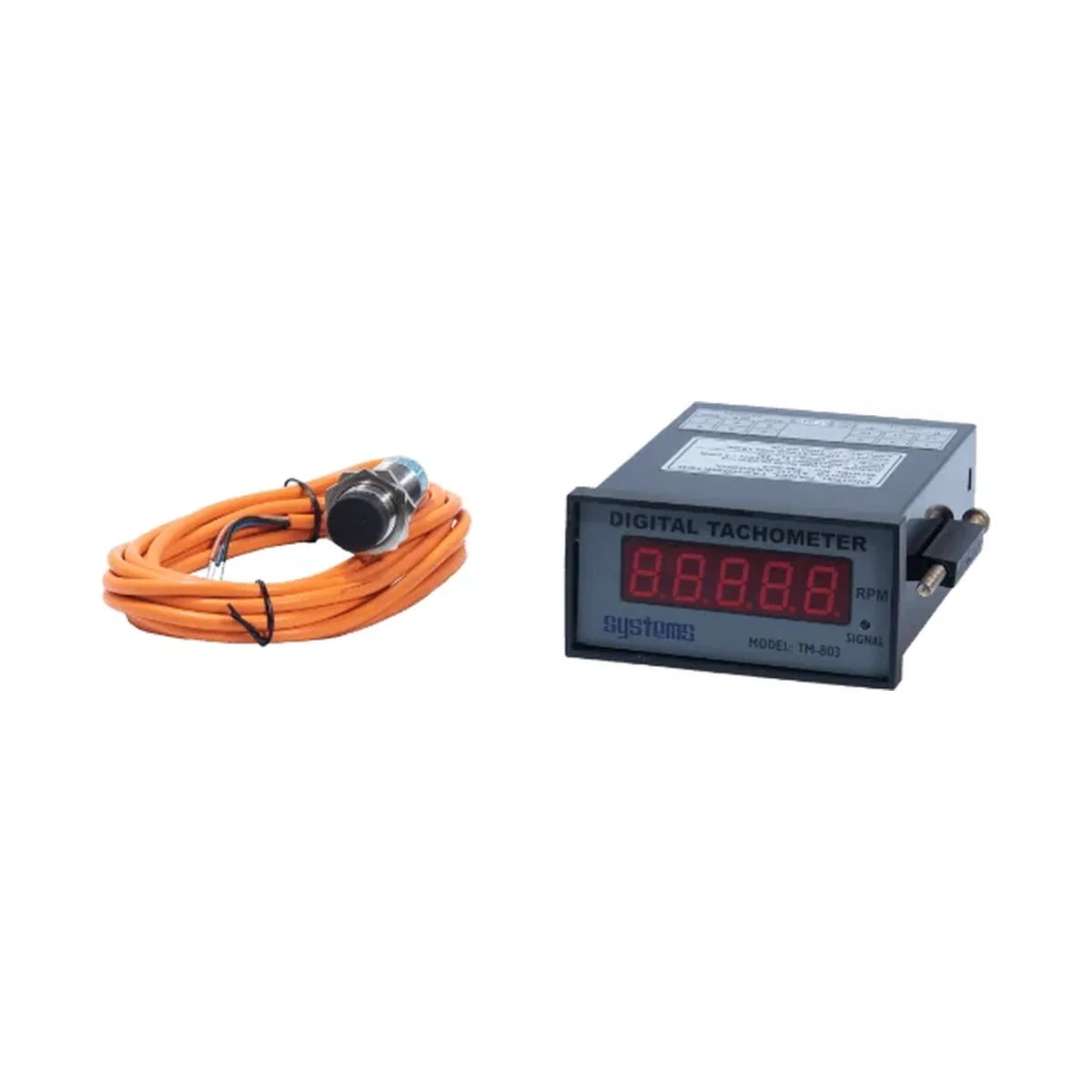

- Sensor and 3 metre shielded cable supplied
- Inductive proximity switch, PNP or NPN, 18 mm threaded probe
Specifications.
- Range
- 60 RPM to 50,000 RPM
- Resolution
- 0.1 RPM from 60 to 1000 RPM; 1 RPM from 1000 to 50,000 RPM
- Display
- 5 digits, 12.5 mm (0.5 in) red LED
- Accuracy
- +/- 0.05% + 1 least count
- Sampling rate
- 1 sample per second
- Time base
- Quartz crystal controlled
- Power source
- 220 V AC, 50 Hz +/- 10%
- Panel size
- 96 x 48 x 130 mm (96 mm square)
- Sensor
- Inductive proximity switch, PNP or NPN, 1 PPR, LS-TTL compatible, 18 mm dia x 70 mm brass probe
- Mounting distance
- 3.0 to 5.0 mm from the target

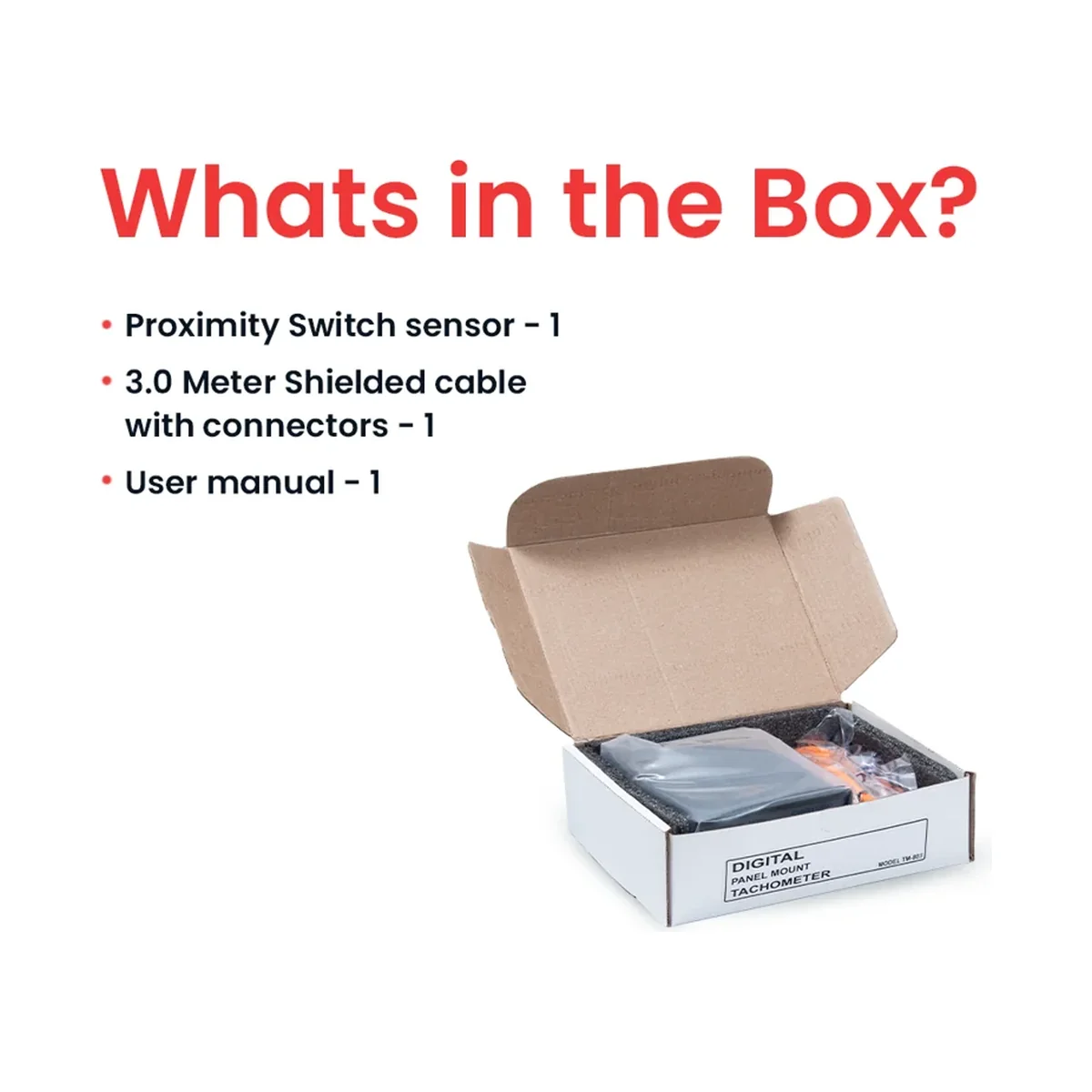

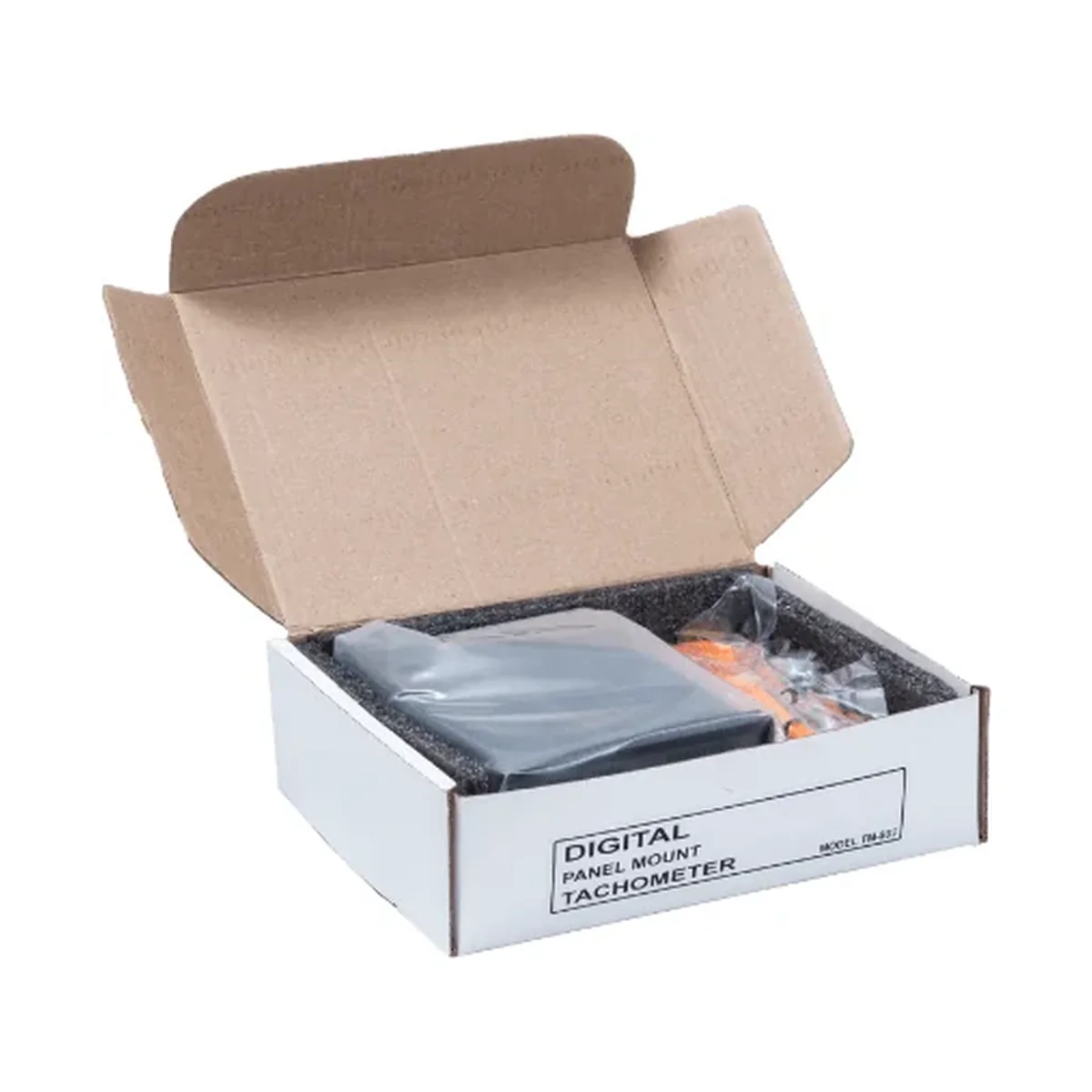

- Standard accessories
- Proximity switch sensor with 3.0 m shielded cable and connectors, instruction manual
