Digital Panel Mount Tachometer with Magnetic Pick-up
Model TM-802
96 mm square panel RPM indicator, 60 to 50,000 RPM, supplied with a magnetic pick-up sensor.
₹4,970₹8,05038% off
Inclusive of 18% GST
- Range
- 60 RPM to 50,000 RPM
- Display
- 5 digits, 12.5 mm (0.5 in) red LED
- Accuracy
- +/- 0.05% + 1 least count
- Sampling rate
- 1 sample per second
Not sure this is the right one?
Tell us the job. We will tell you the instrument. Business and bulk orders welcome.
- GST tax invoice with every order
- Secure payment by UPI, card or netbanking
- Genuine Systems Tech product
About.

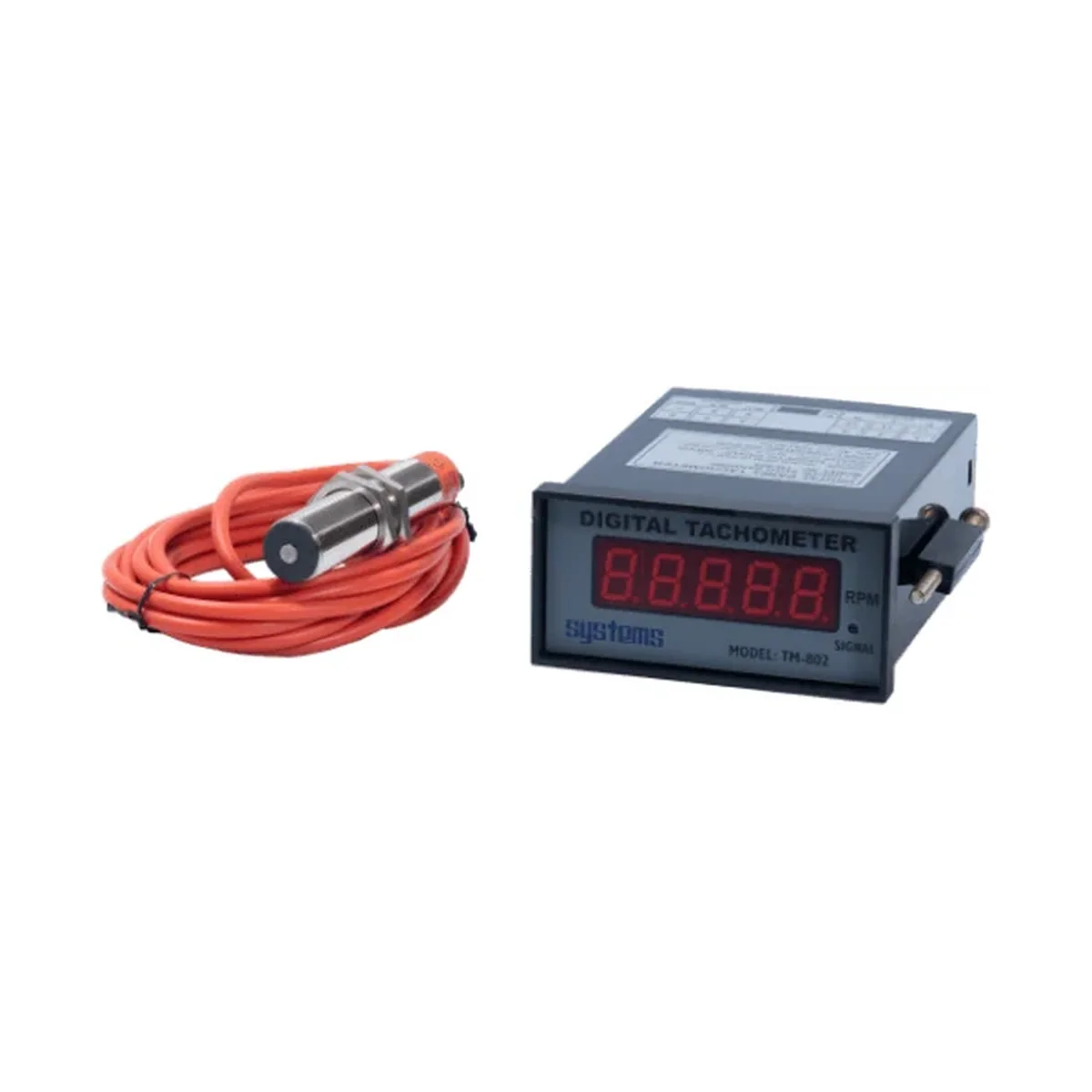

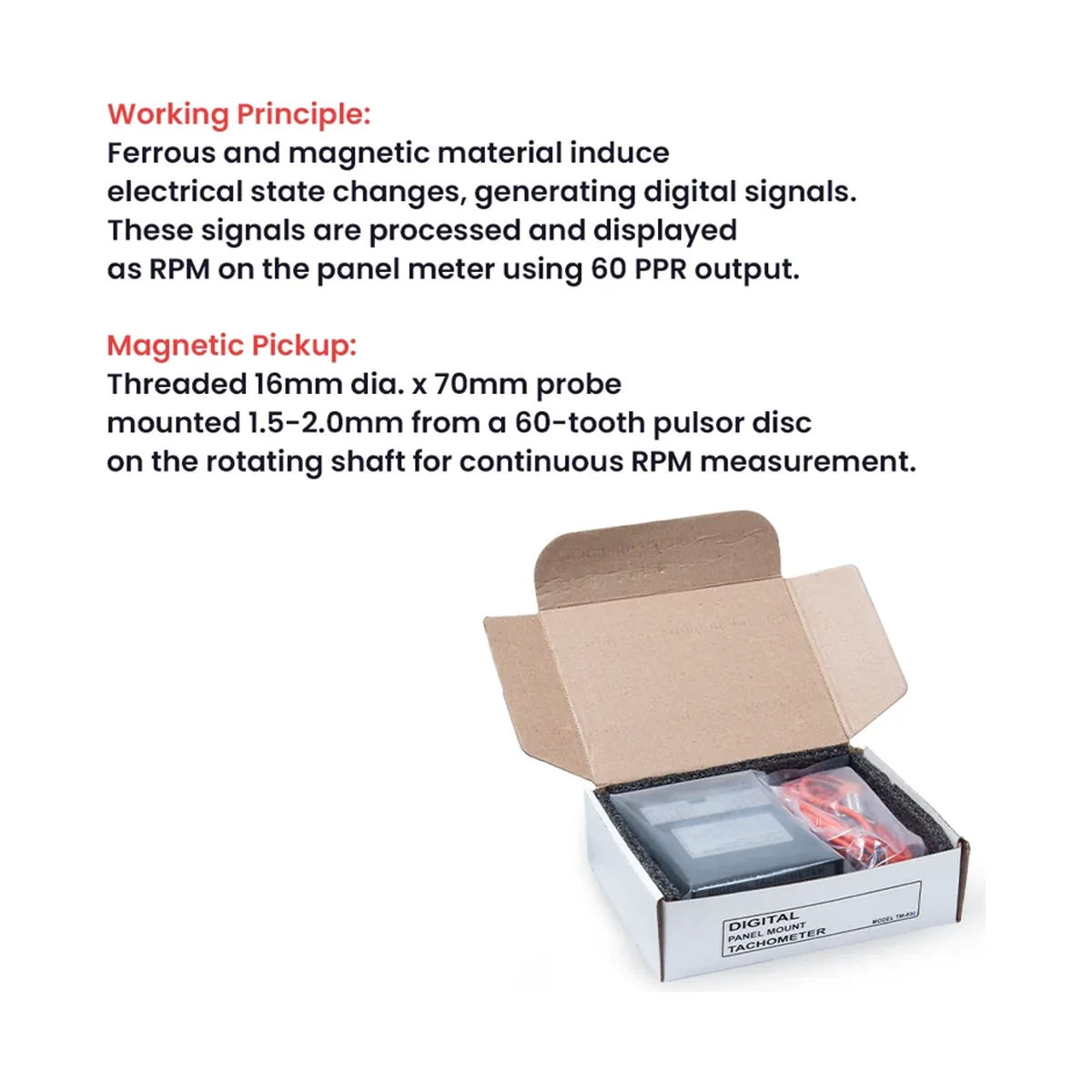

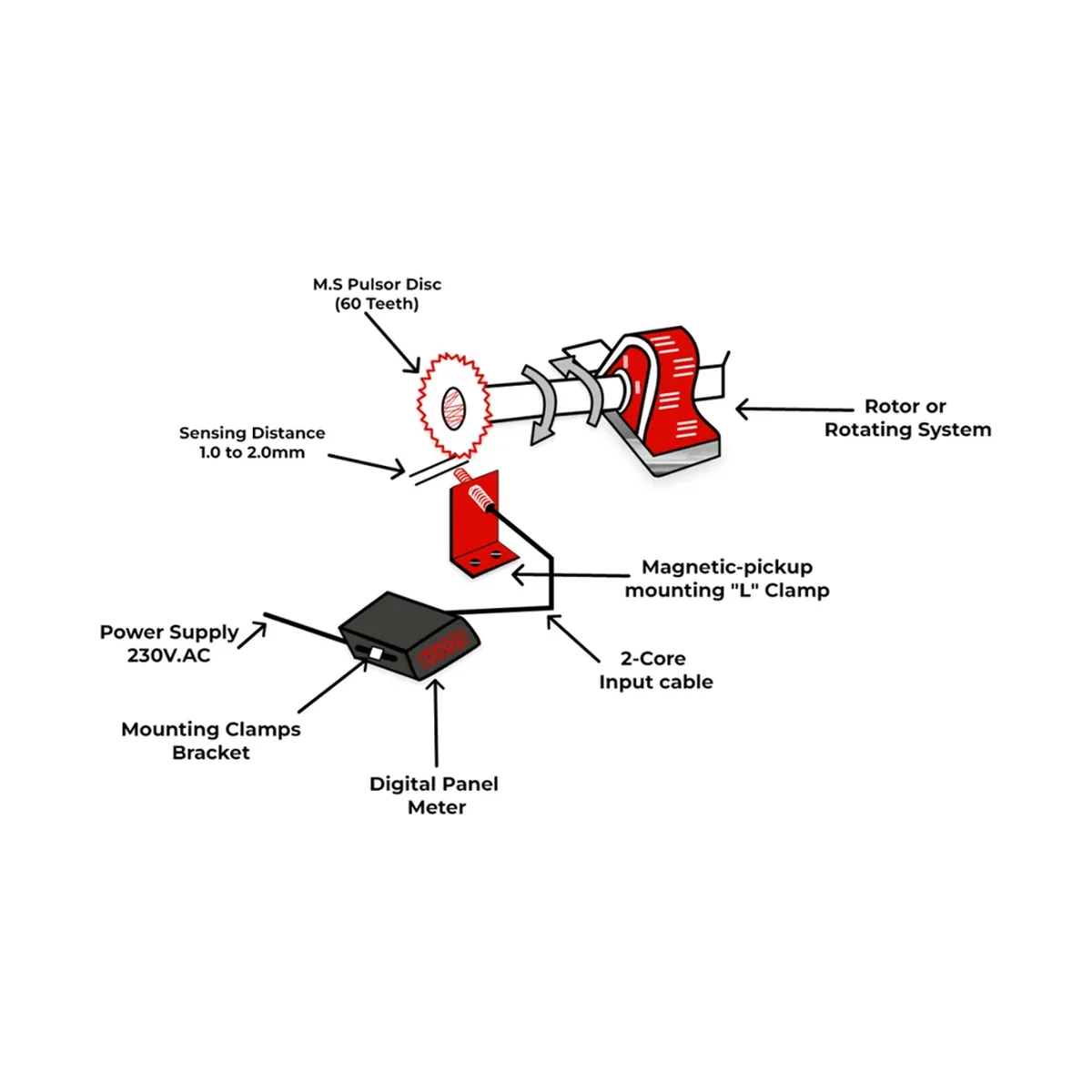

The Systems Tech TM-802 is a digital panel mount tachometer supplied with a magnetic pick-up. The probe is mounted 1.5 to 2.0 mm from a 60-tooth pulsor disc or wheel on the rotating shaft and generates 60 pulses per revolution as ferrous teeth pass it. The meter shows speed from 60 to 50,000 RPM on a 5-digit LED display. It is supplied with the pick-up, a 3 metre shielded cable with connectors and an instruction manual.
- Full digital, micro-controller design with auto-ranging
- Quartz crystal time base

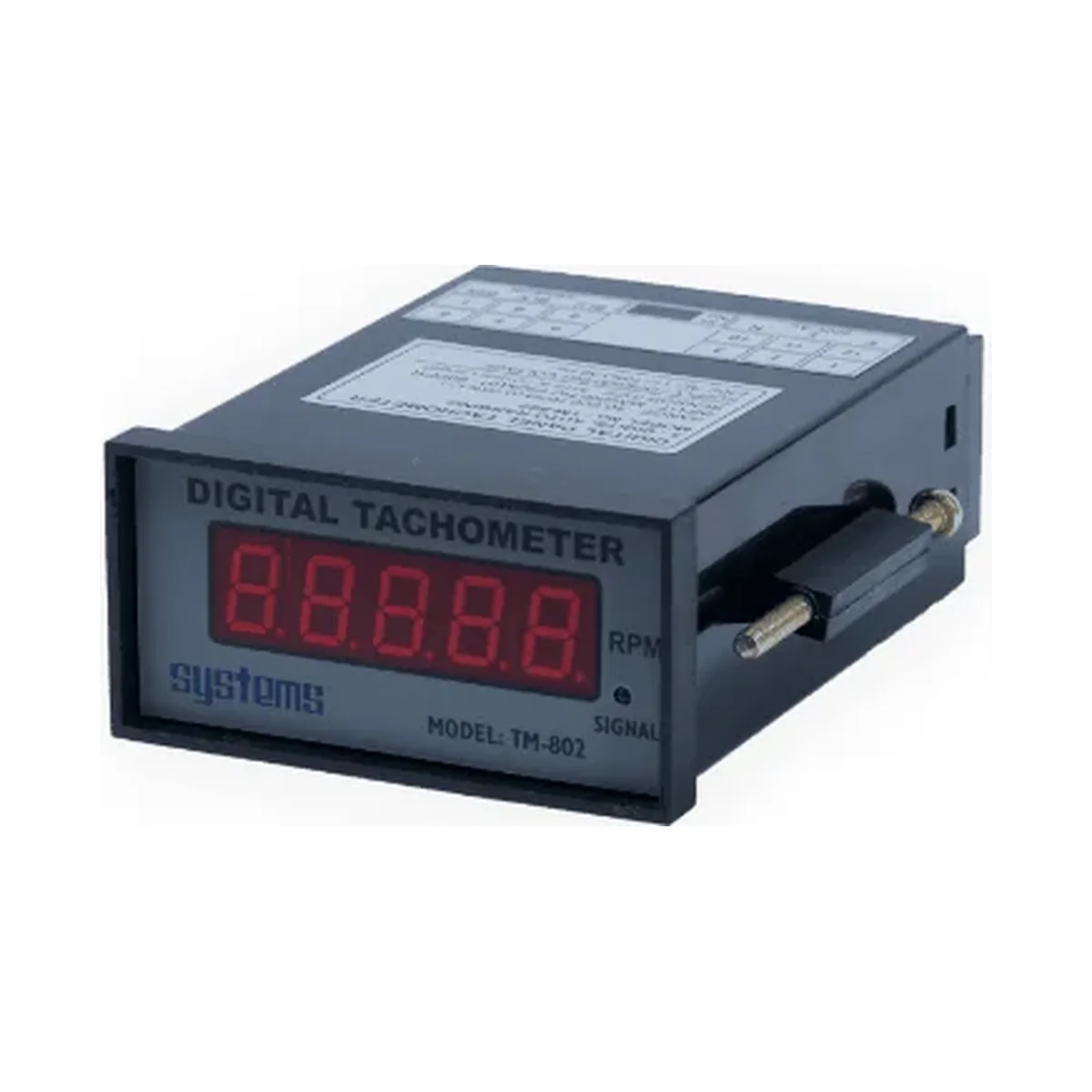

- 5-digit 12.5 mm red LED display

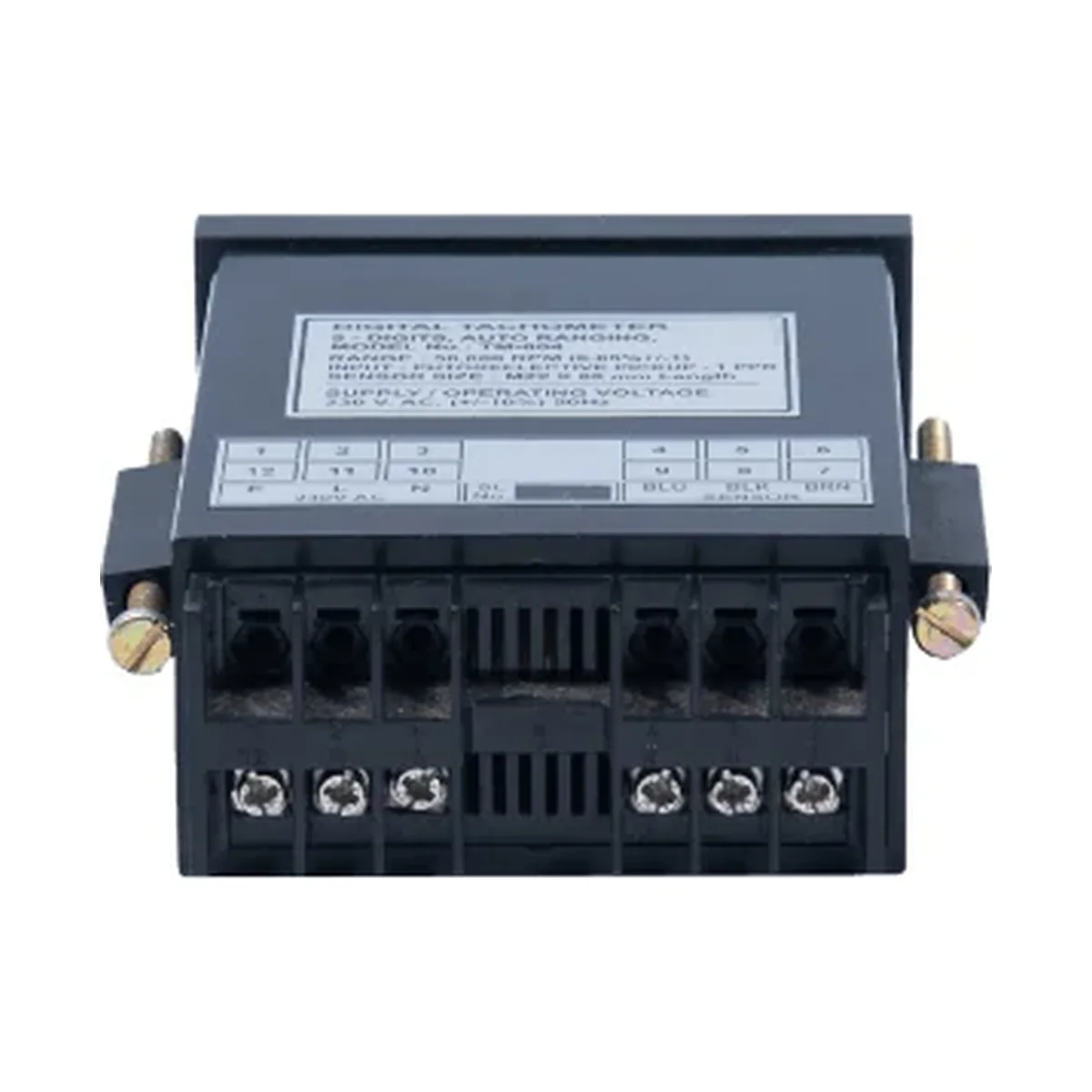

- 96 mm square panel mount case
- Sensor and 3 metre shielded cable supplied
- Magnetic pick-up, 16 mm threaded probe with locknuts, 60 teeth pulsor wheel

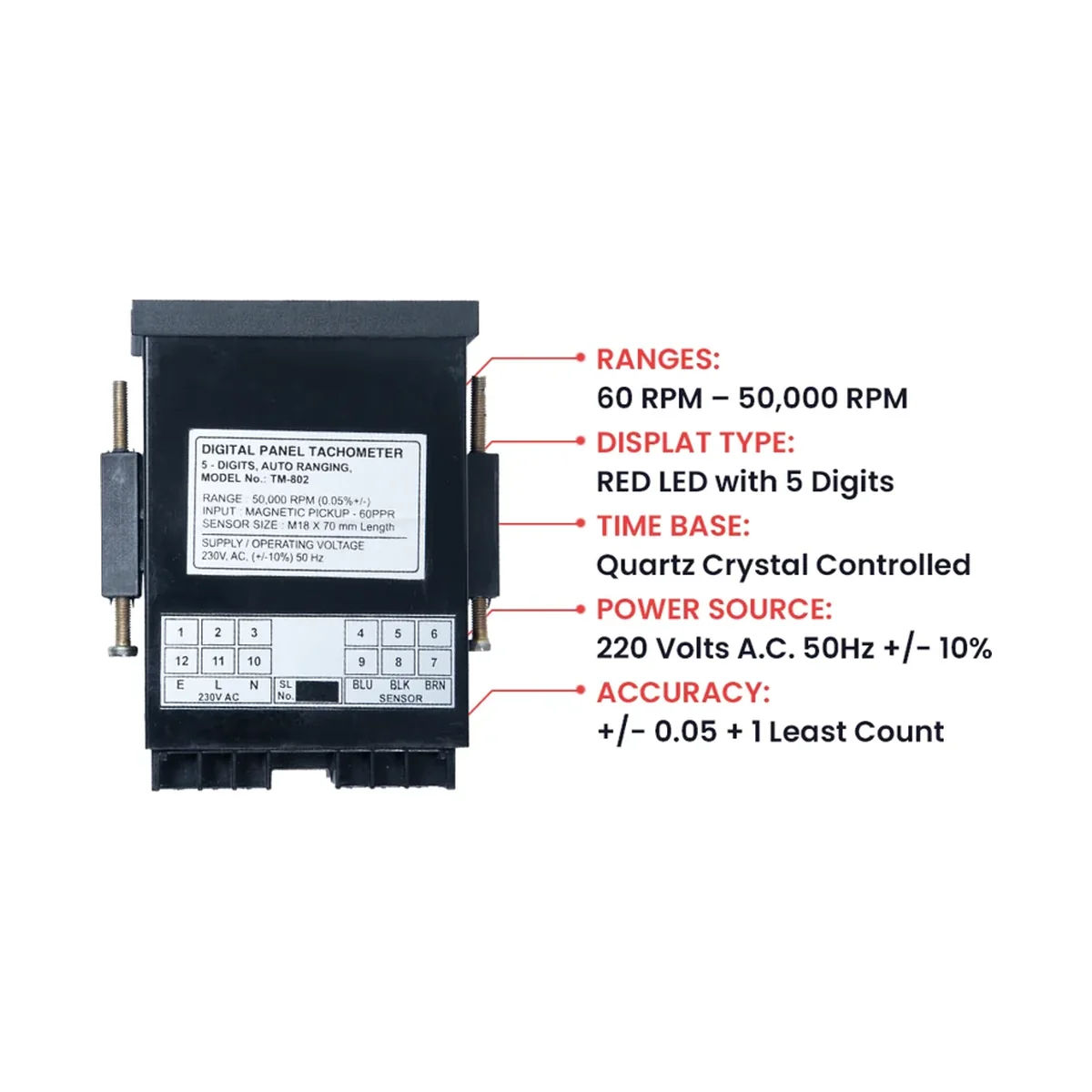

Specifications.
- Range
- 60 RPM to 50,000 RPM
- Resolution
- 0.1 RPM from 60 to 1000 RPM; 1 RPM from 1000 to 50,000 RPM
- Display
- 5 digits, 12.5 mm (0.5 in) red LED
- Accuracy
- +/- 0.05% + 1 least count
- Sampling rate
- 1 sample per second
- Time base
- Quartz crystal controlled
- Power source
- 220 V AC, 50 Hz +/- 10%
- Panel size
- 96 x 48 x 130 mm (96 mm square)
- Sensor
- Magnetic pick-up, 60 PPR, 16 mm dia x 70 mm brass or stainless steel probe
- Mounting distance
- 1.5 to 2.0 mm from the pulsor wheel

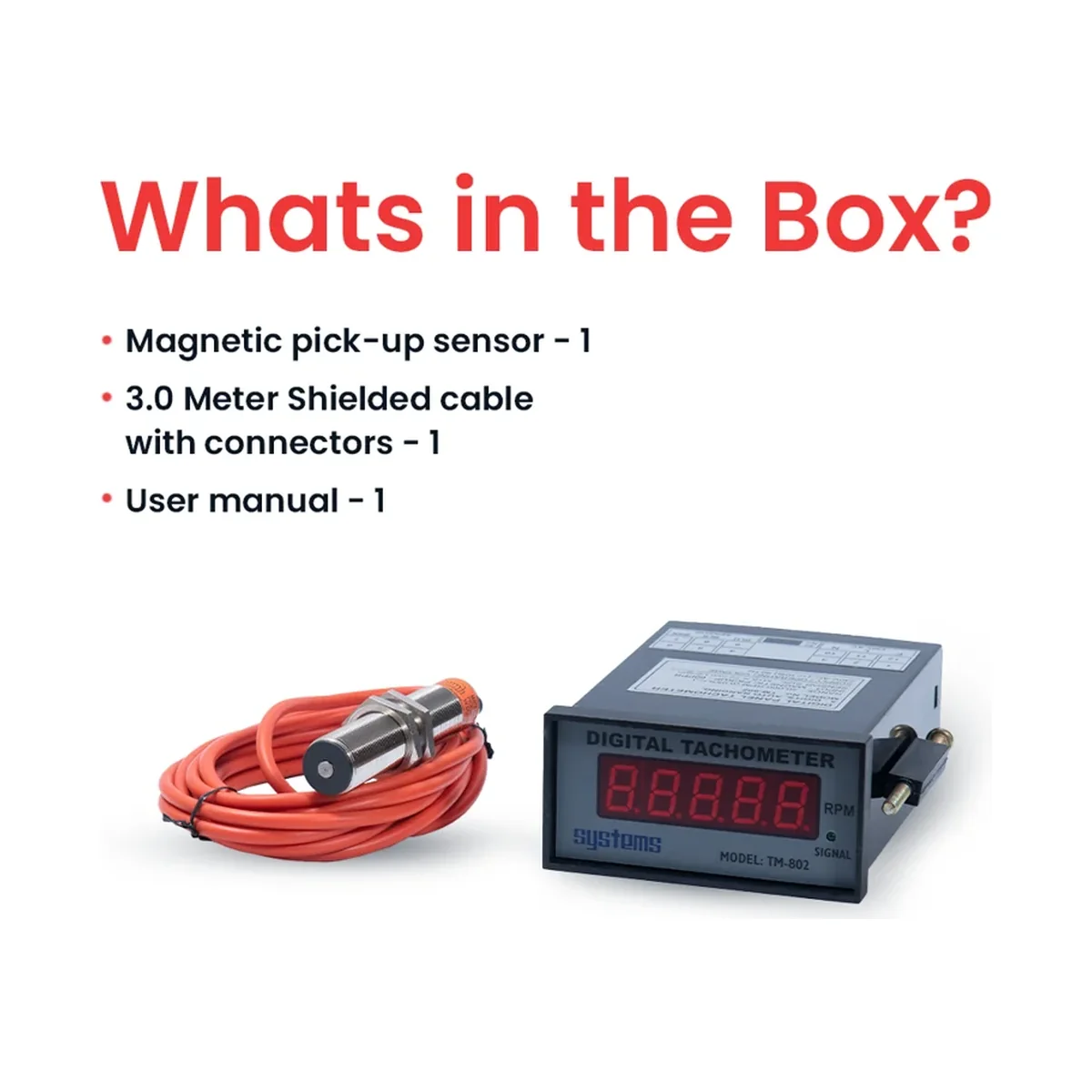

- Standard accessories
- Magnetic pick-up sensor with 3.0 m shielded cable and connectors, instruction manual
