Photo Contact Digital Tachometer

About.

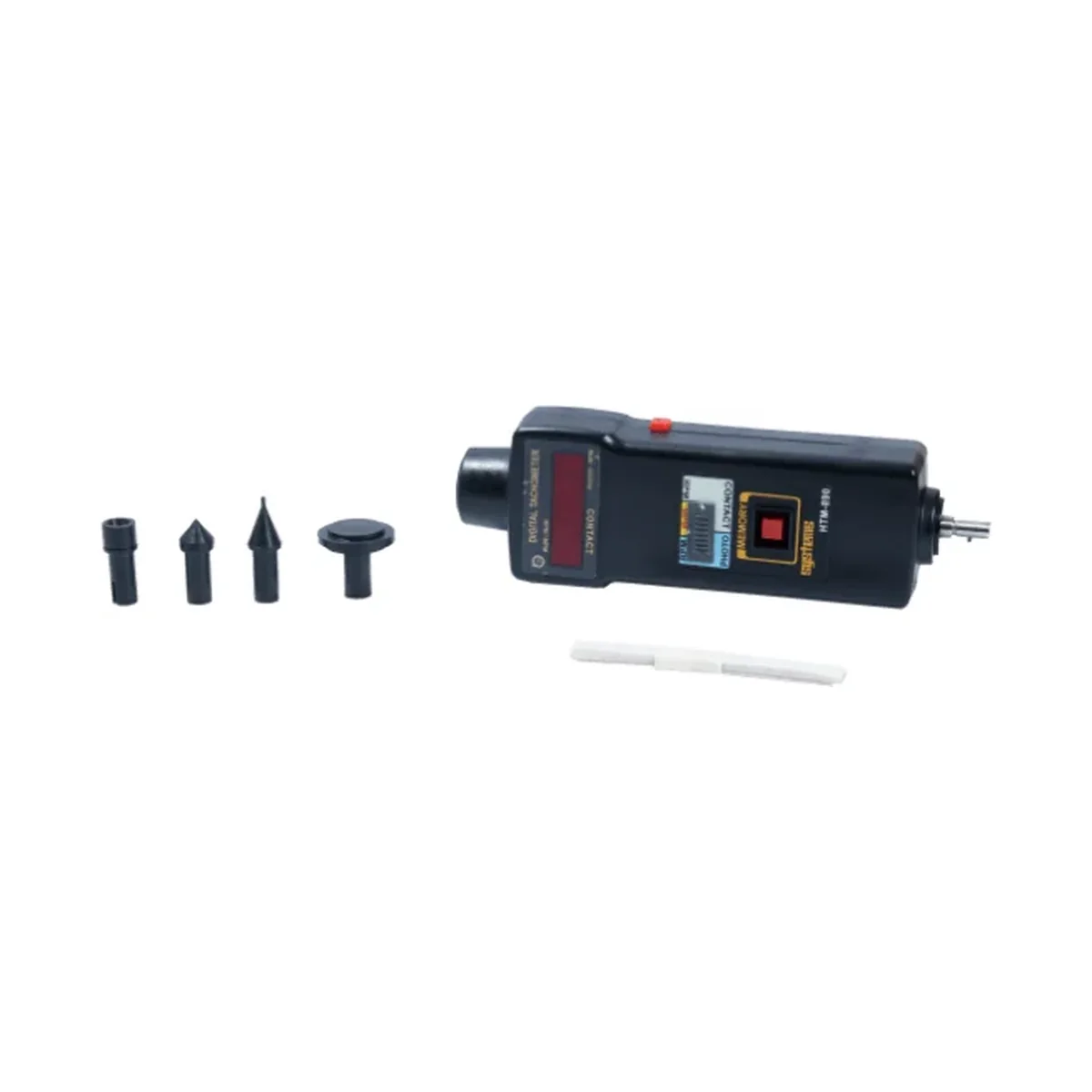

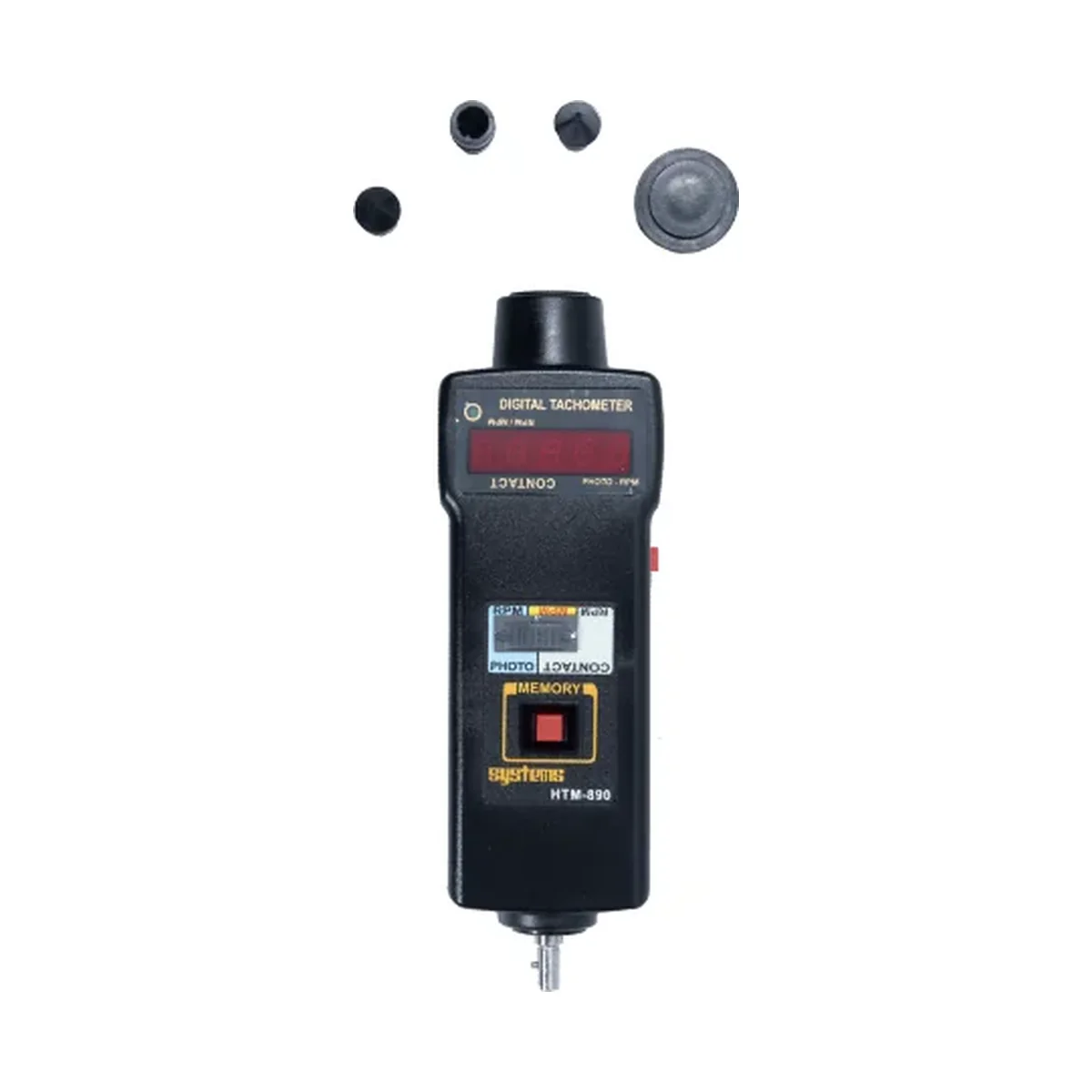

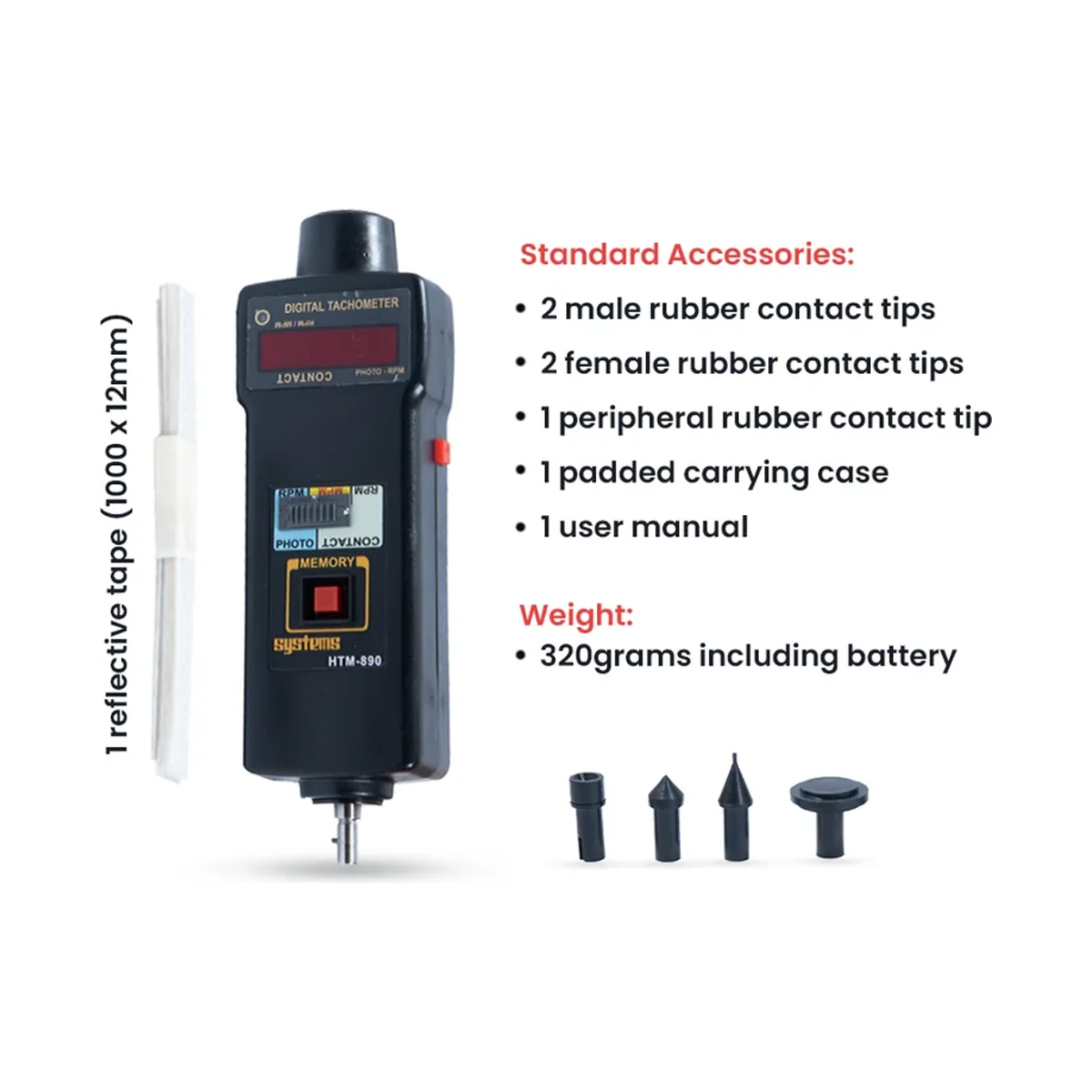

The Systems Tech HTM 890 combines a contact tachometer and a photo (non-contact) tachometer in one handheld body. The contact side reads 60 to 50,000 RPM and surface speed from 6 to 5000 m/min using rubber contact tips; the photo side reads 60 to 1,00,000 RPM from 75 mm to 300 mm using reflective tape. It has a 5-digit red LED display, quartz crystal time base, automatic last, maximum and minimum memory, and is supplied with contact tips, reflective tape, a padded carrying case and a user manual - a single tool for motor and machine performance checks.

• Full digital, micro-controller based design
• Quartz crystal time base, 0.05% + 1 digit accuracy
• Last, Max and Min readings stored and recalled automatically

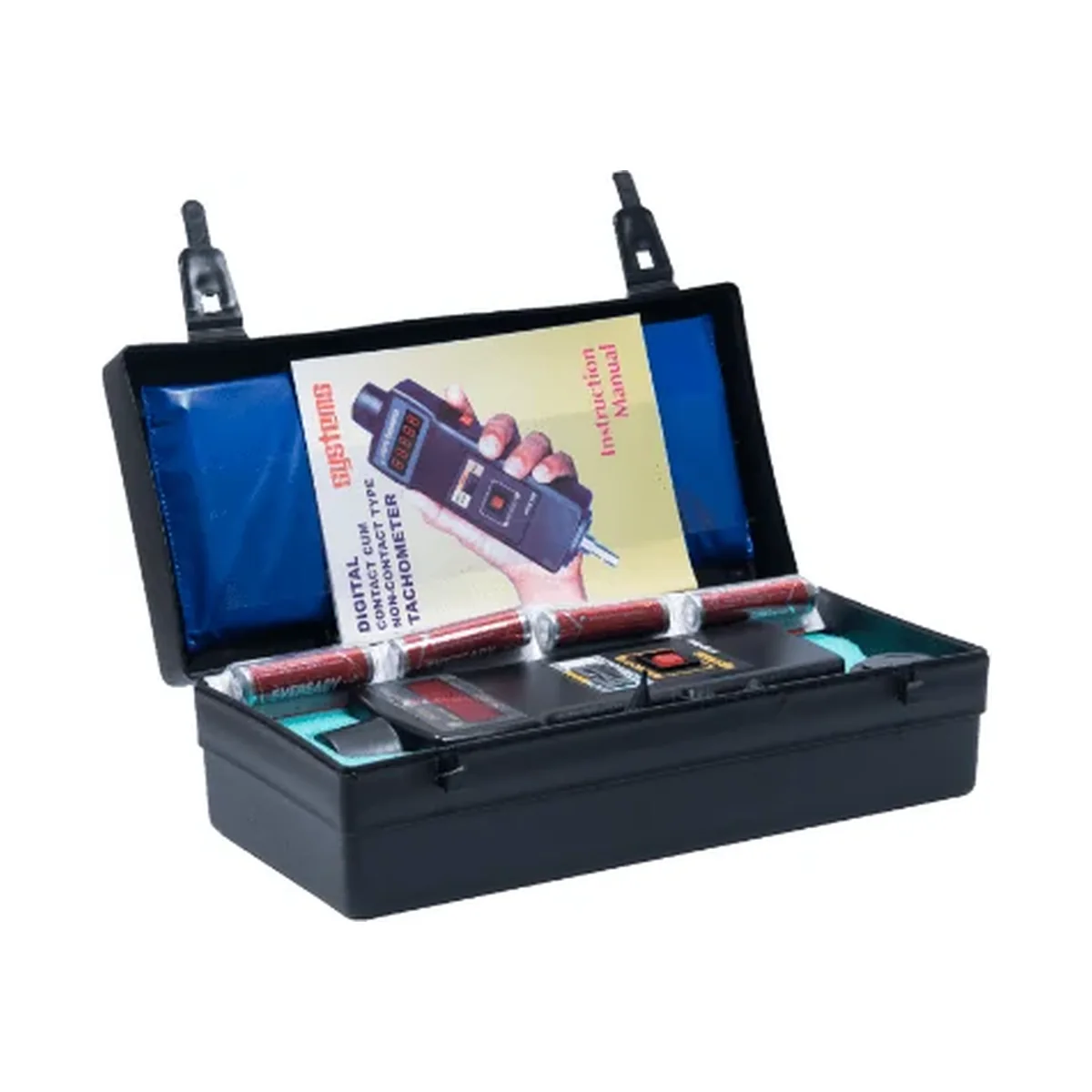

• Compact handheld body with padded carrying case
• Contact side and photo side in one instrument
• Surface speed (m/min) on the contact side

Specifications.

Range

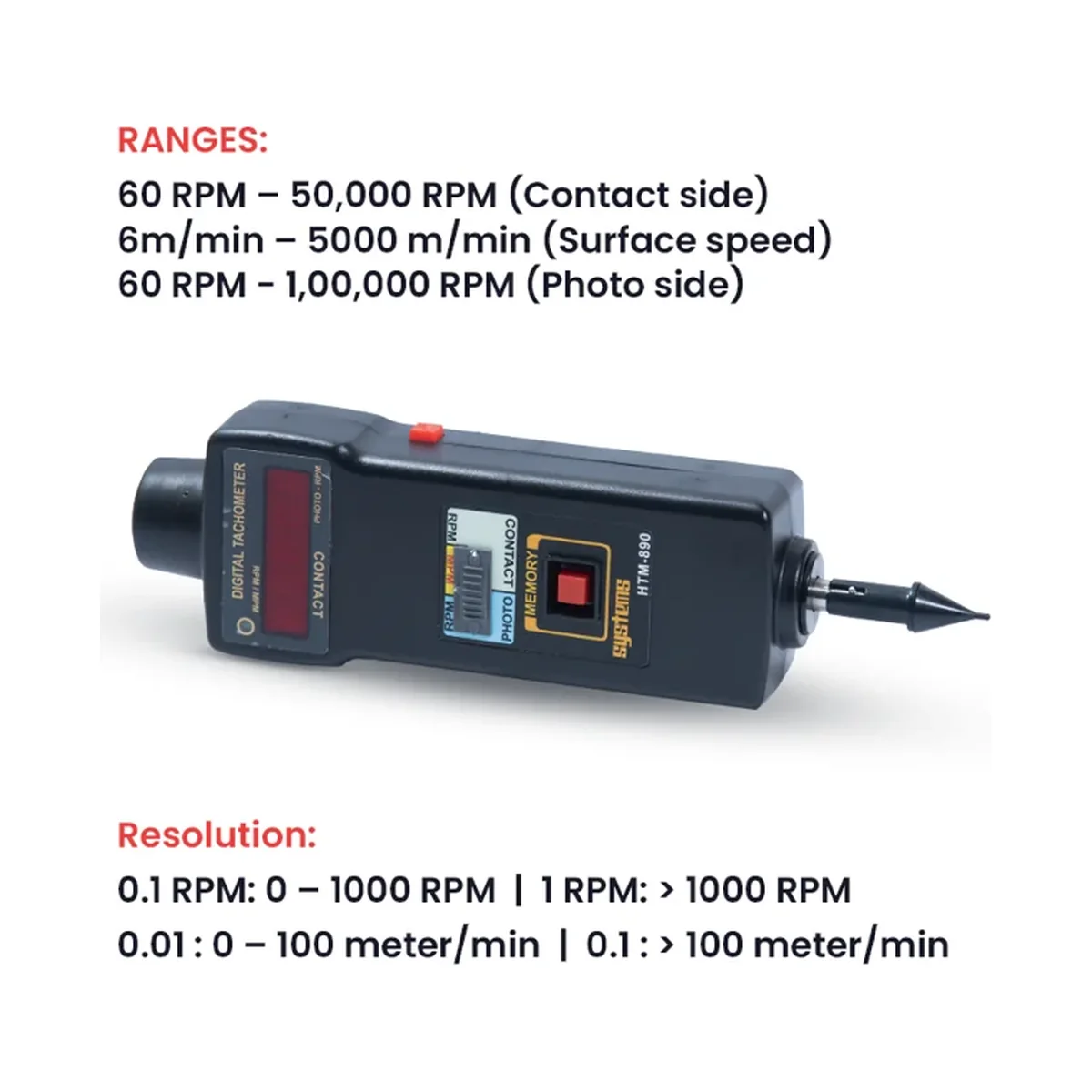

60 RPM to 50,000 RPM (contact side); 6 m/min to 5000 m/min (surface speed); 60 RPM to 1,00,000 RPM (photo side)

Resolution

0.1 RPM up to 1000 RPM, 1 RPM above; 0.01 m/min up to 100 m/min, 0.1 m/min above

Measuring distance

75 mm (3 in) to 300 mm (12 in), photo side

Display

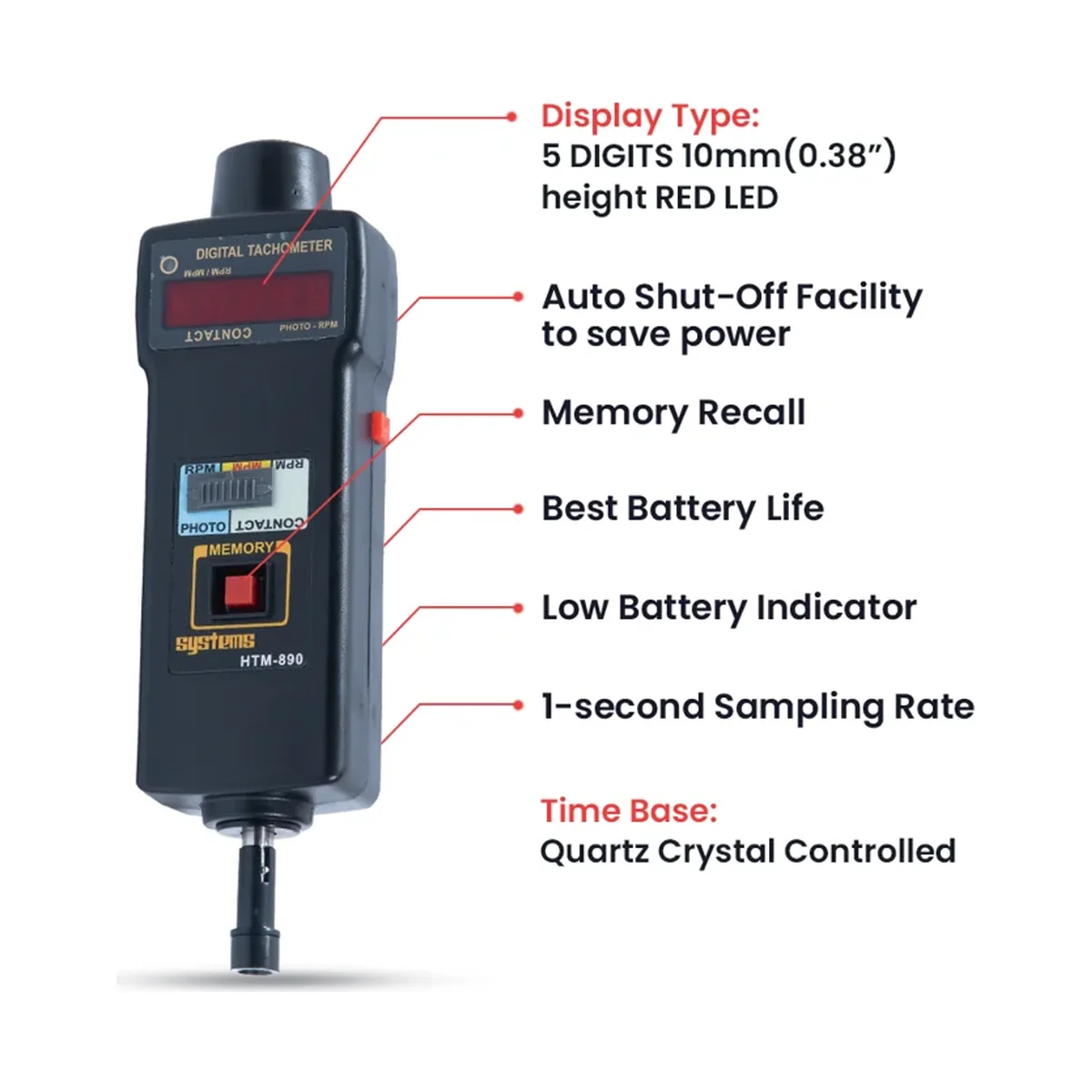

5 digits, 10 mm (0.38 in) red LED

Accuracy

+/- 0.05% + 1 digit

Sampling rate

1 second

Time base

Quartz crystal controlled

Low battery

Indicated by "Lobat" on the display

Memory recall

Last, Max and Min values stored automatically, recall up to 120 s

Power source

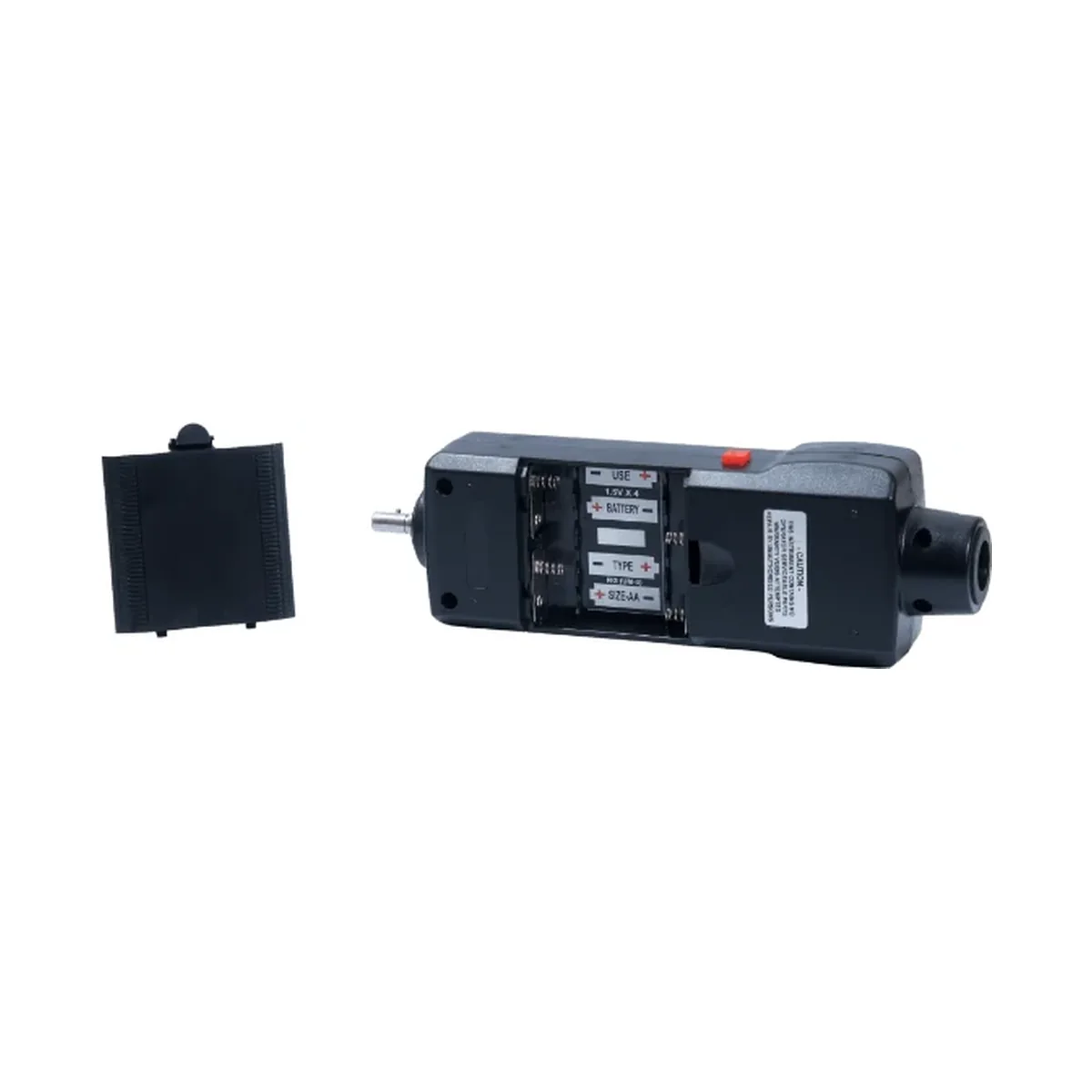

4 x 1.5 V AA batteries, auto shut-off

Operating temperature

0 °C to 60 °C (32 °F to 140 °F)

Size

70 x 200 x 40 mm (2.8 x 7.8 x 1.6 in)

Battery life

Contact side: 90 hrs alkaline, 30 hrs carbon-zinc. Photo side: 24 hrs alkaline, 12 hrs carbon-zinc

Weight

320 g including batteries
