Non-Contact Type Digital Tachometer

About.

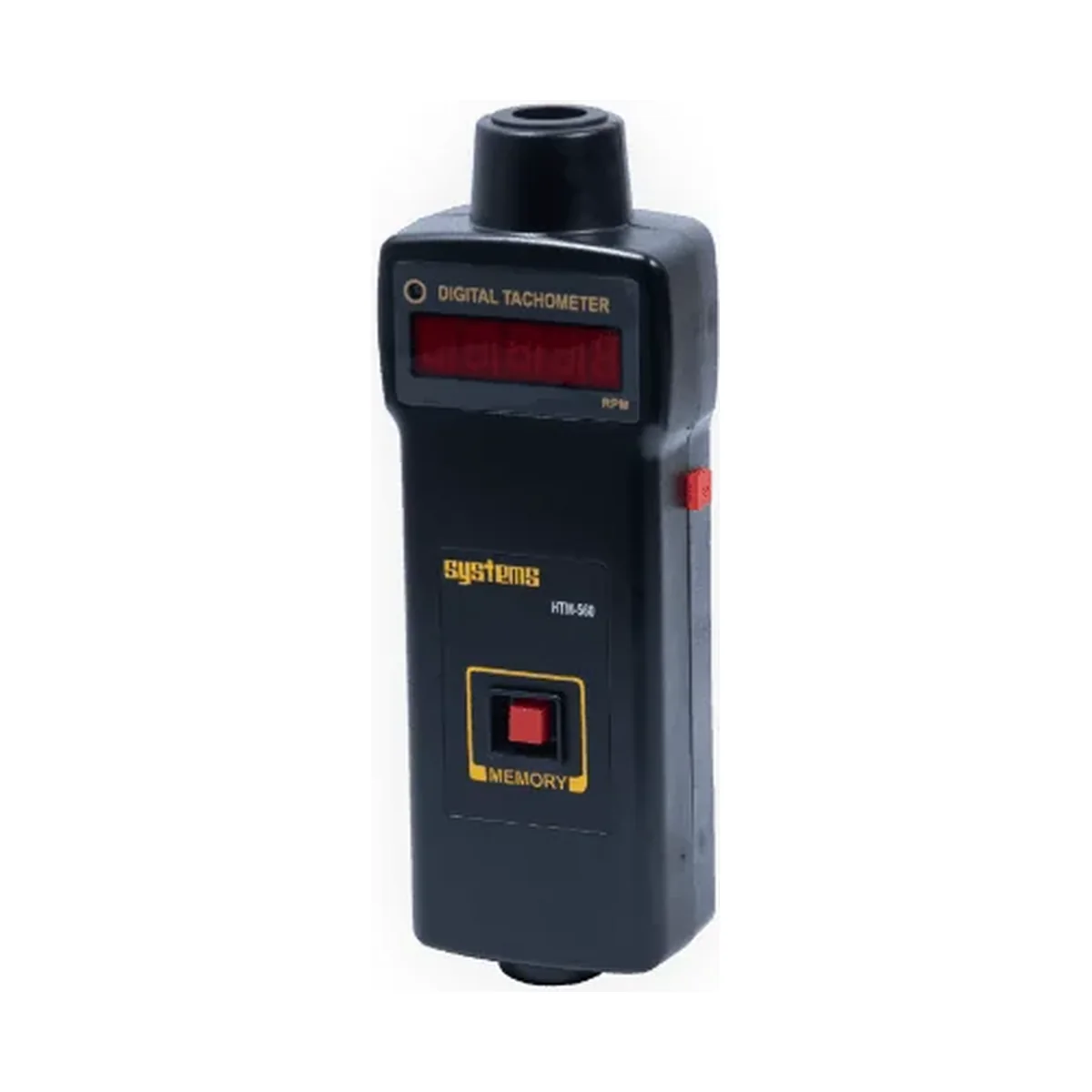

The Systems Tech HTM 560 is a handheld non-contact digital tachometer that reads speed with a light beam, so there is nothing to touch on the rotating part. A strip of reflective tape is fixed on the shaft, the unit is held 75 mm to 300 mm away, and it reads from 60 up to 1,00,000 RPM with 0.1 RPM resolution up to 1000 RPM. It has a 5-digit red LED display, quartz crystal time base, automatic last, maximum and minimum memory, and comes with reflective tape and a padded carrying case.

• Full digital, micro-controller based design
• Quartz crystal time base, 0.05% + 1 digit accuracy
• Last, Max and Min readings stored and recalled automatically

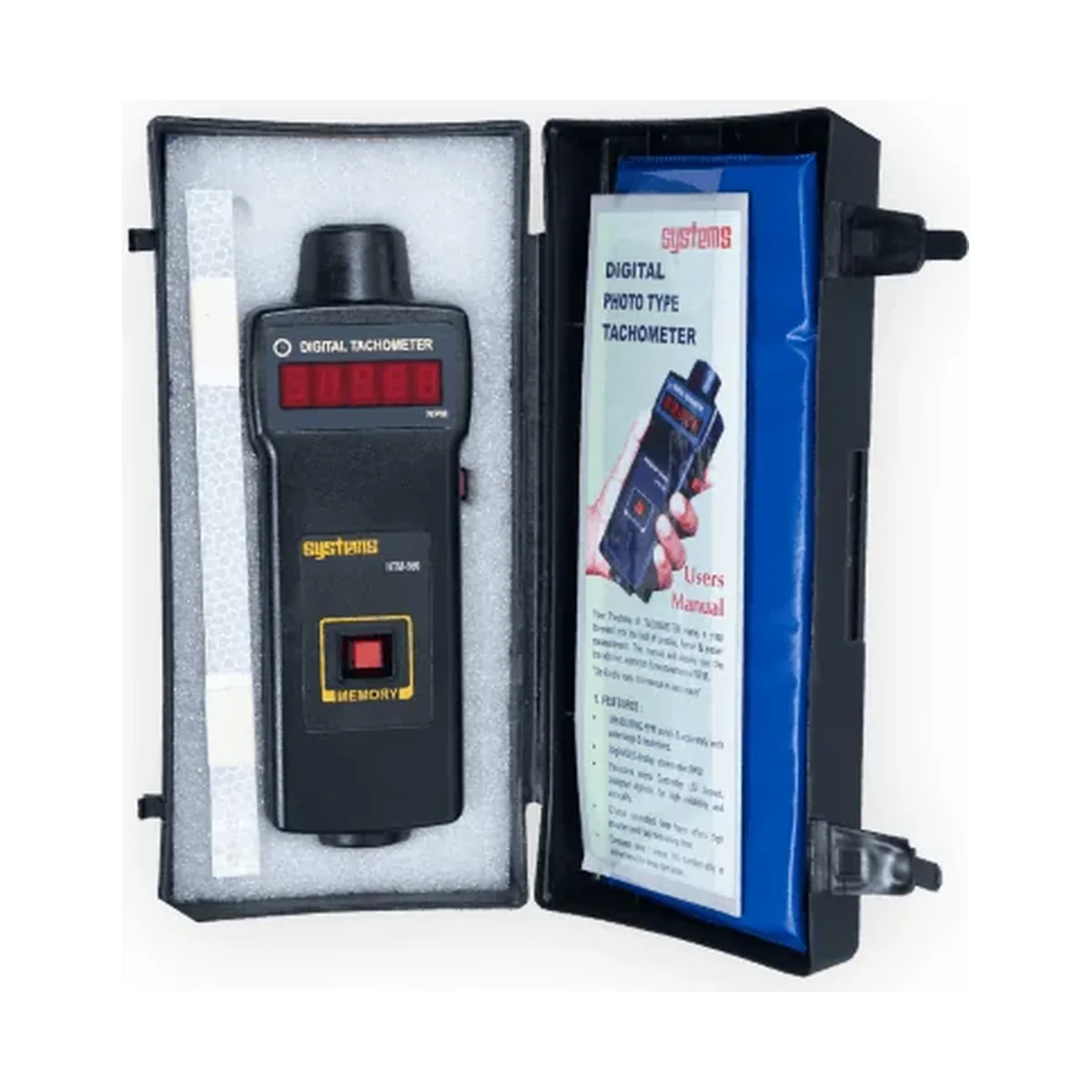

• Compact handheld body with padded carrying case

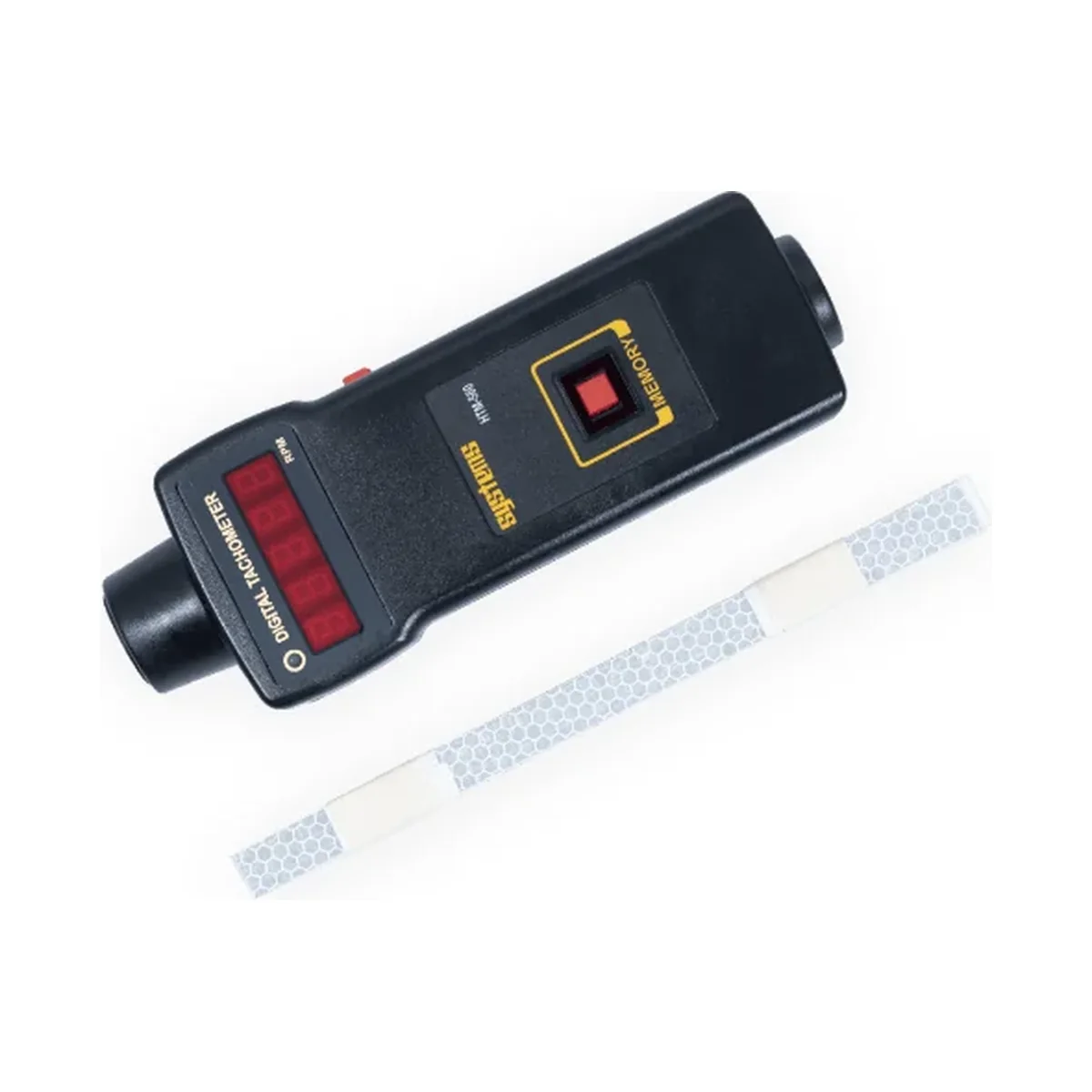

• Non-contact measurement from 75 mm to 300 mm using reflective tape

Specifications.

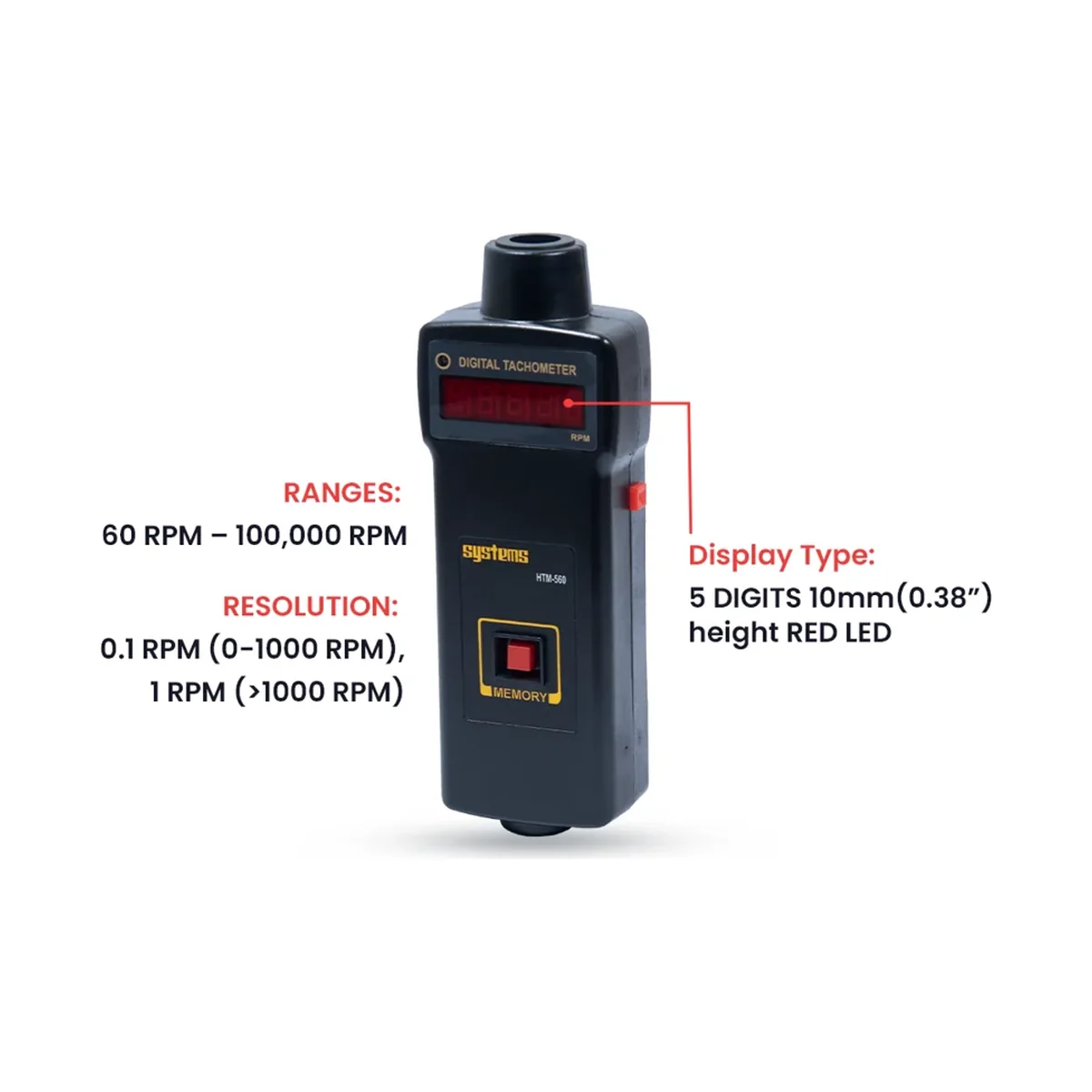

Range

60 RPM to 1,00,000 RPM

Resolution

0.1 RPM up to 1000 RPM; 1 RPM above 1000 RPM

Measuring distance

75 mm (3 in) to 300 mm (12 in)

Display

5 digits, 10 mm (0.38 in) red LED

Accuracy

+/- 0.05% + 1 digit

Sampling rate

1 second

Time base

Quartz crystal controlled

Low battery

Indicated by "Lobat" on the display

Memory recall

Last, Max and Min values stored automatically, recall up to 120 s

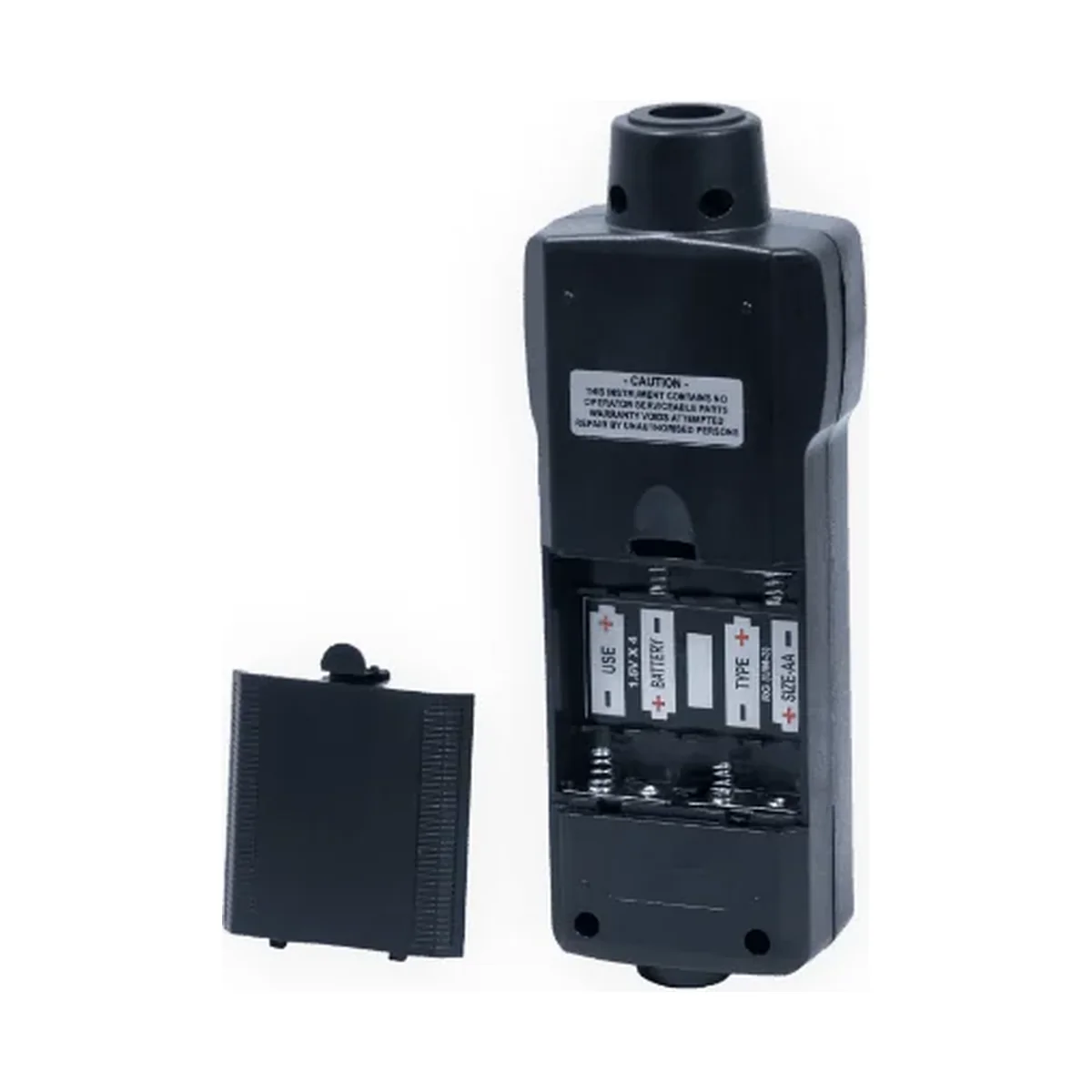

Power source

4 x 1.5 V AA batteries, auto shut-off

Operating temperature

0 °C to 60 °C (32 °F to 140 °F)

Size

70 x 200 x 40 mm (2.8 x 7.8 x 1.6 in)

Battery life

90 hrs alkaline | 30 hrs carbon-zinc

Weight

270 g including batteries
