Magnetic Pick-up Sensor
Model TM-802 MPU
Threaded M16 magnetic pick-up, 60 pulses per revolution, 6 V DC, brass or stainless steel body.
₹2,800₹4,25034% off
Inclusive of 18% GST
- Supply voltage
- 6 V DC (regulated)
- Supply current
- 50 to 70 mA
- Output type
- Digital pulse output
- Output pulse rate
- 60 PPR
Not sure this is the right one?
Tell us the job. We will tell you the instrument. Business and bulk orders welcome.
- GST tax invoice with every order
- Secure payment by UPI, card or netbanking
- Genuine Systems Tech product
About.

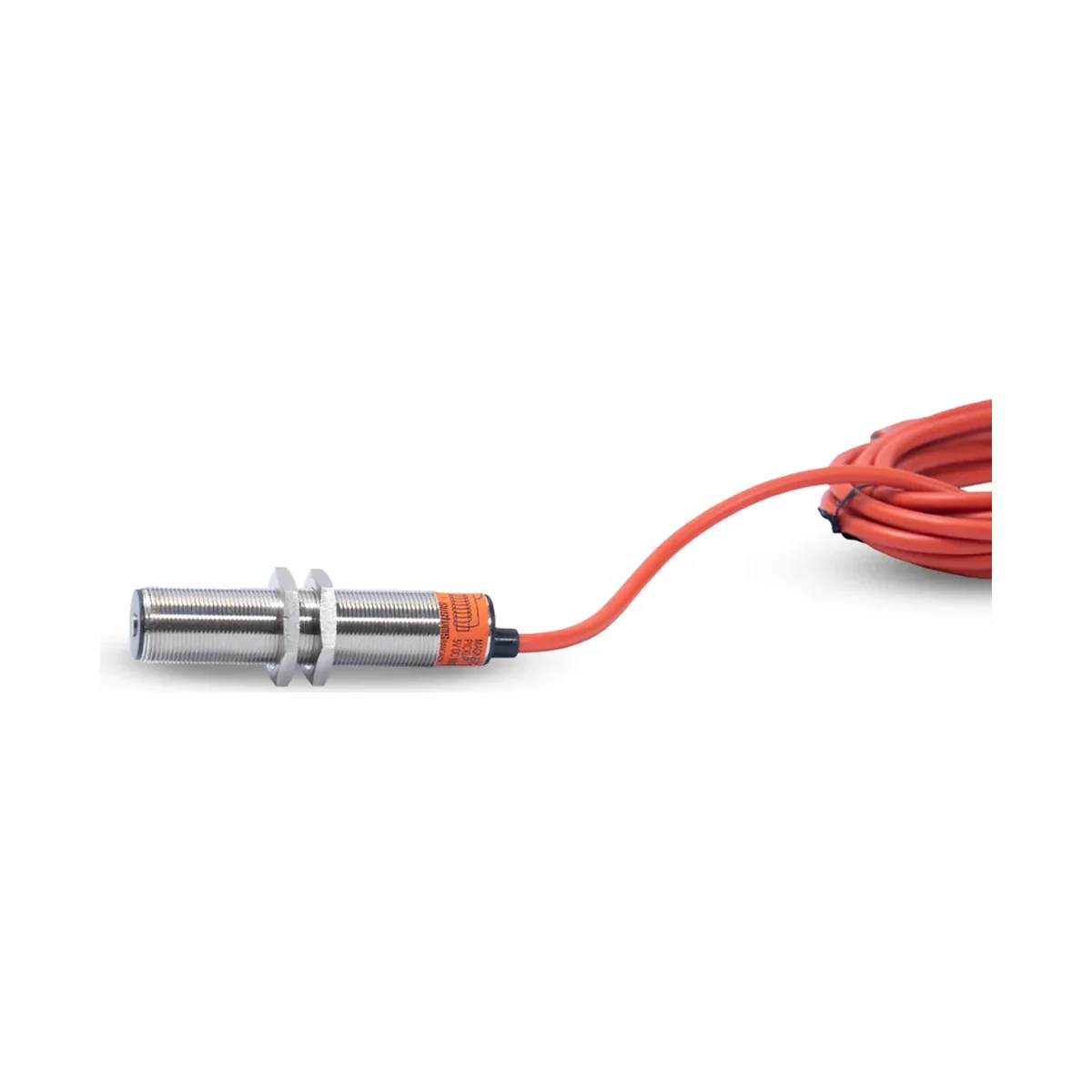

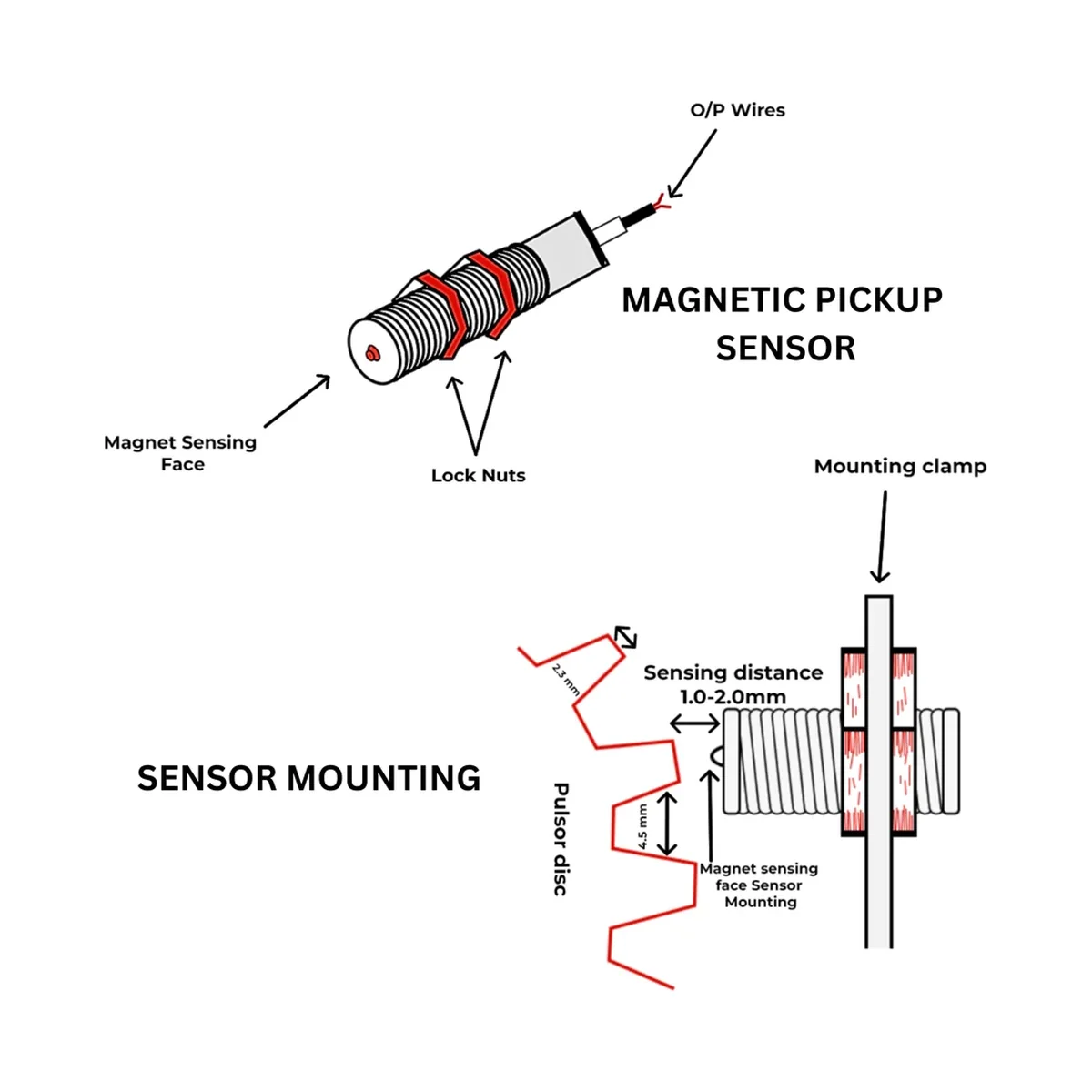

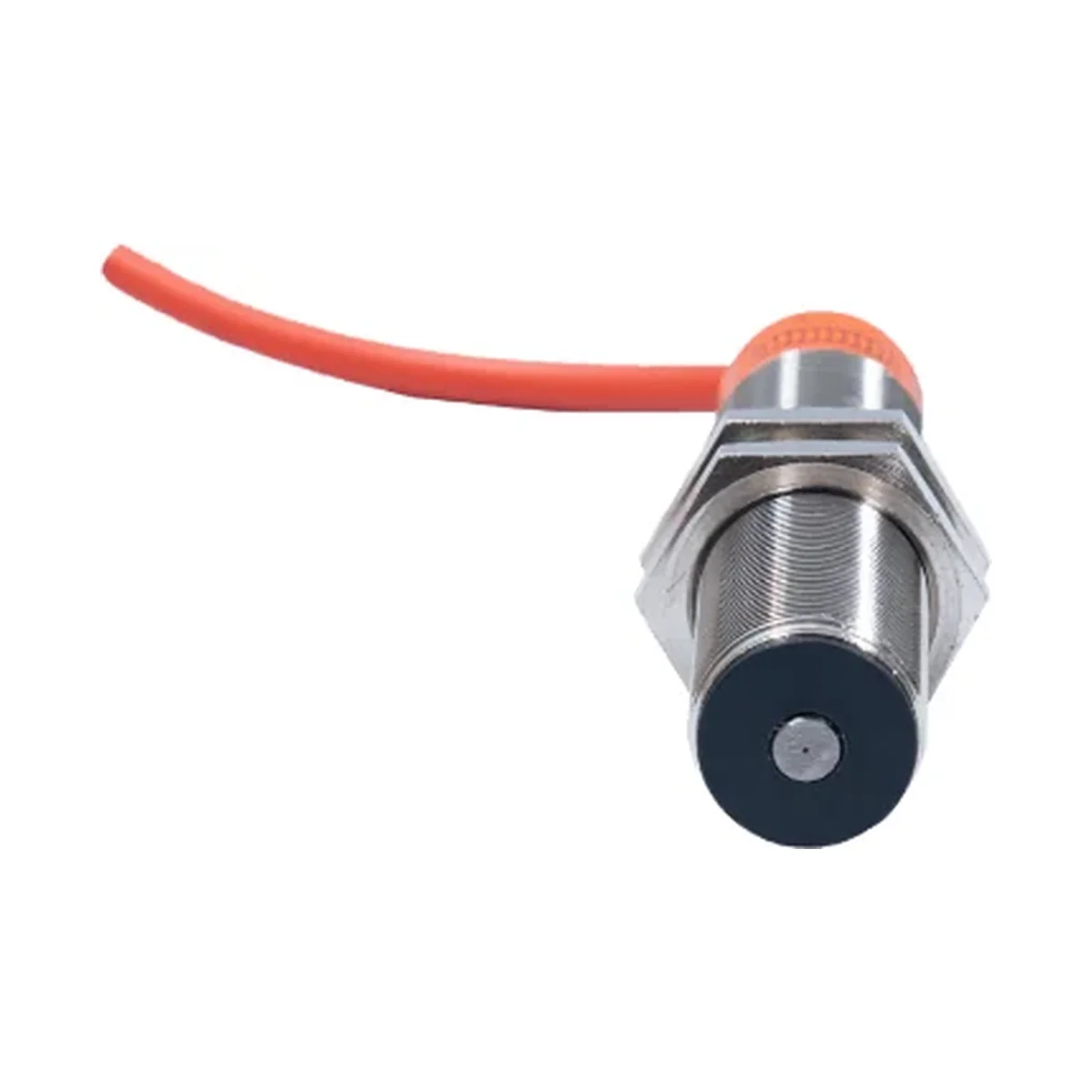

The Systems Tech magnetic pick-up generates a digital pulse output of 60 pulses per revolution (LS-TTL compatible) as ferrous or magnetic teeth pass the sensing face, and sends it over a 3-core cable to a panel tachometer such as the TM-802. Magnetic pick-ups of this type are widely used in tachometers, speedometers and engine control systems. The body is a machined brass or stainless steel threaded housing fixed with two M16 locknuts.
- 60 pulses per revolution, LS-TTL compatible
- Machined brass or stainless steel threaded body with two locknuts
- M16 face mounting, 18 mm body dia x 80 mm
- 10 kHz output at 10,000 RPM
Specifications.
- Supply voltage
- 6 V DC (regulated)
- Supply current
- 50 to 70 mA
- Output type
- Digital pulse output
- Output pulse rate
- 60 PPR
- Output pulse amplitude
- Same as supply voltage
- Output frequency
- 10 kHz at 10,000 RPM
- Outlet cable
- 2 to 3 m, three cores
- Body
- Machined brass or stainless steel threaded housing with two locknuts
- Mounting
- Face, two M16 locknuts
- Overall size
- Body dia 18 mm, length 80 mm
- Weight (approx.)
- 100 g
