Photo-Reflective Sensor
Model TM-804 PR
Photo-reflective speed probe, 1 pulse per revolution, 5 V DC, works at 4 to 12 inches with reflective tape.
₹2,420₹4,48046% off
Inclusive of 18% GST

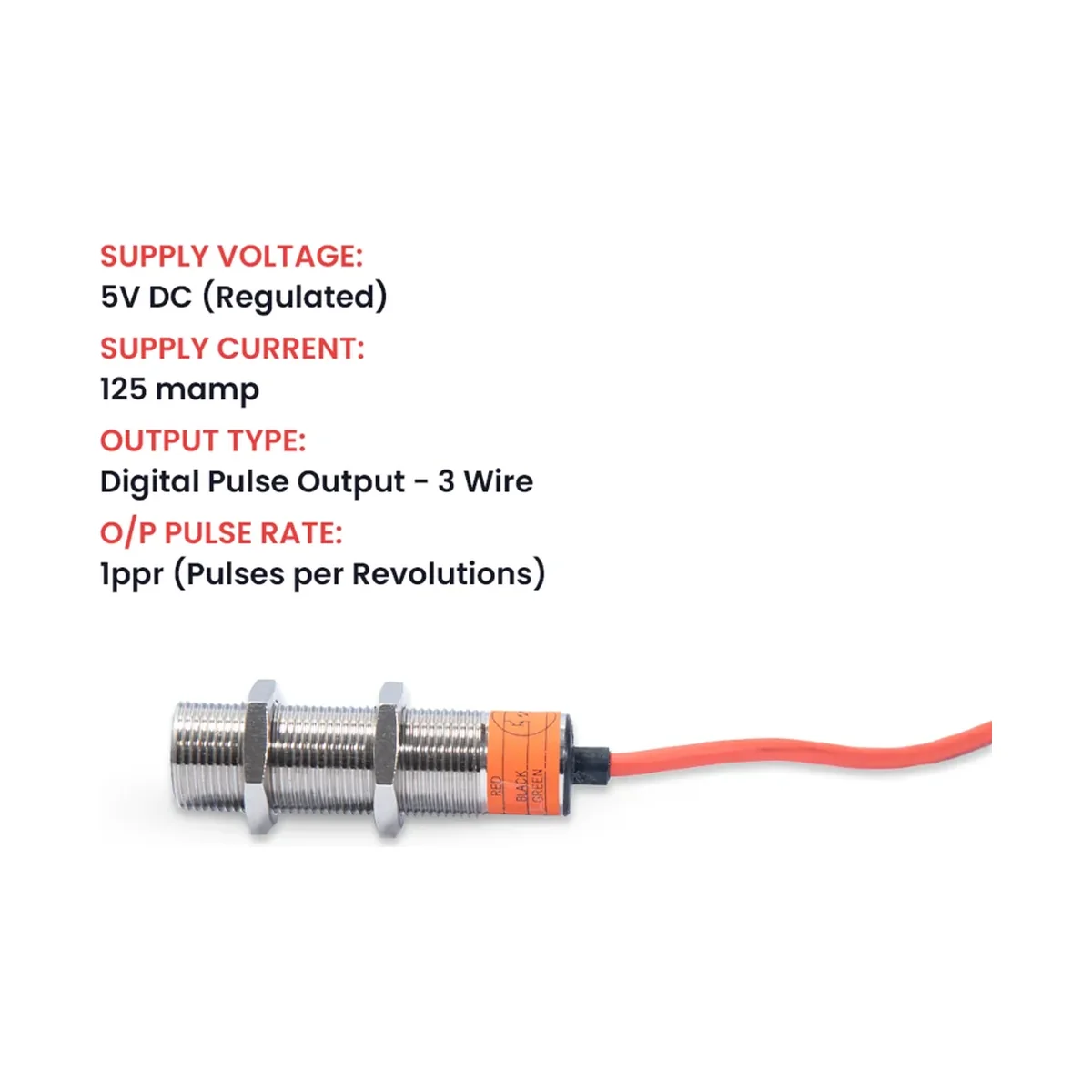

- Supply voltage
- 5 V DC (regulated)
- Supply current
- 125 mA
- Output type
- Digital pulse output, 3-wire
- Output pulse rate
- 1 PPR
Not sure this is the right one?
Tell us the job. We will tell you the instrument. Business and bulk orders welcome.
- GST tax invoice with every order
- Secure payment by UPI, card or netbanking
- Genuine Systems Tech product
About.

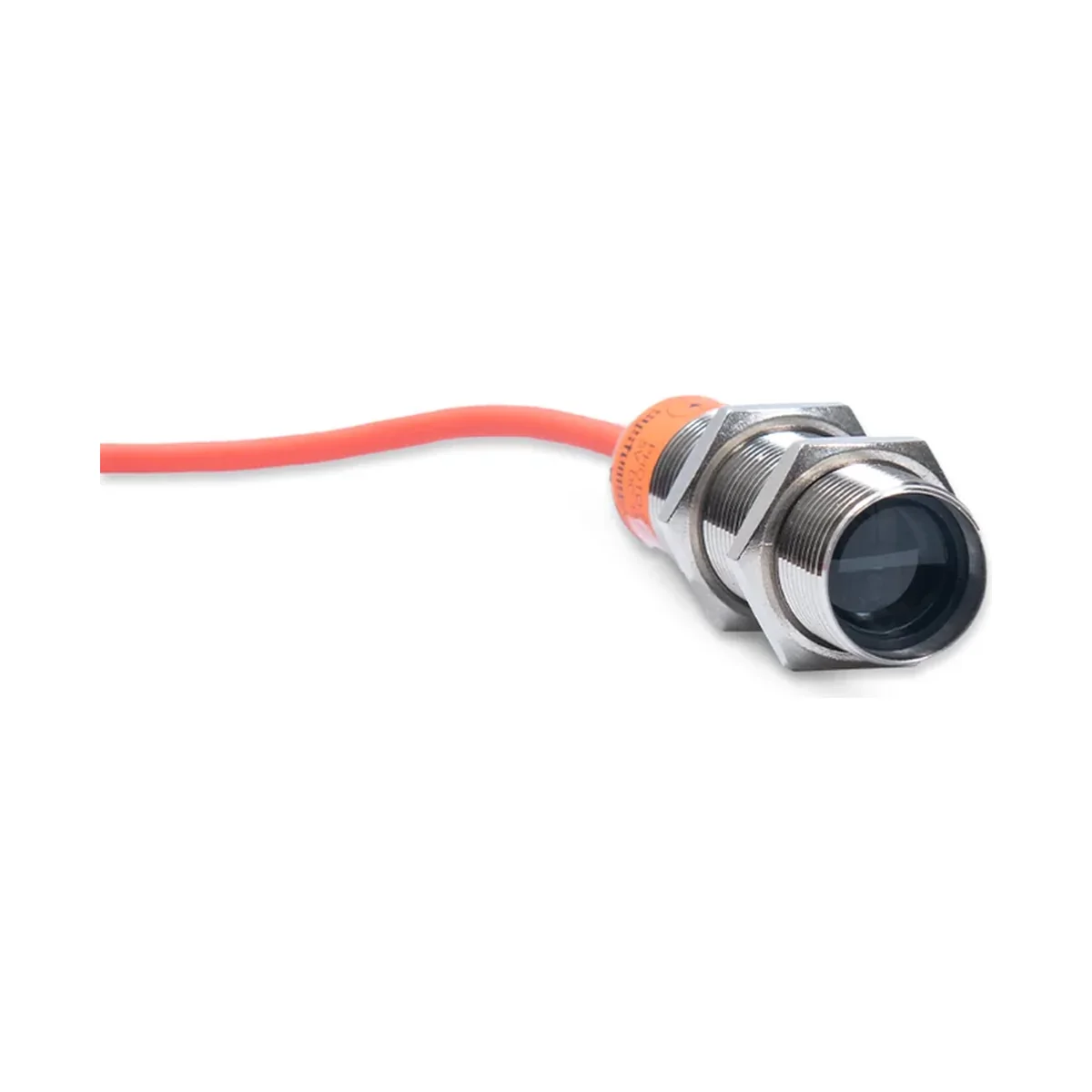

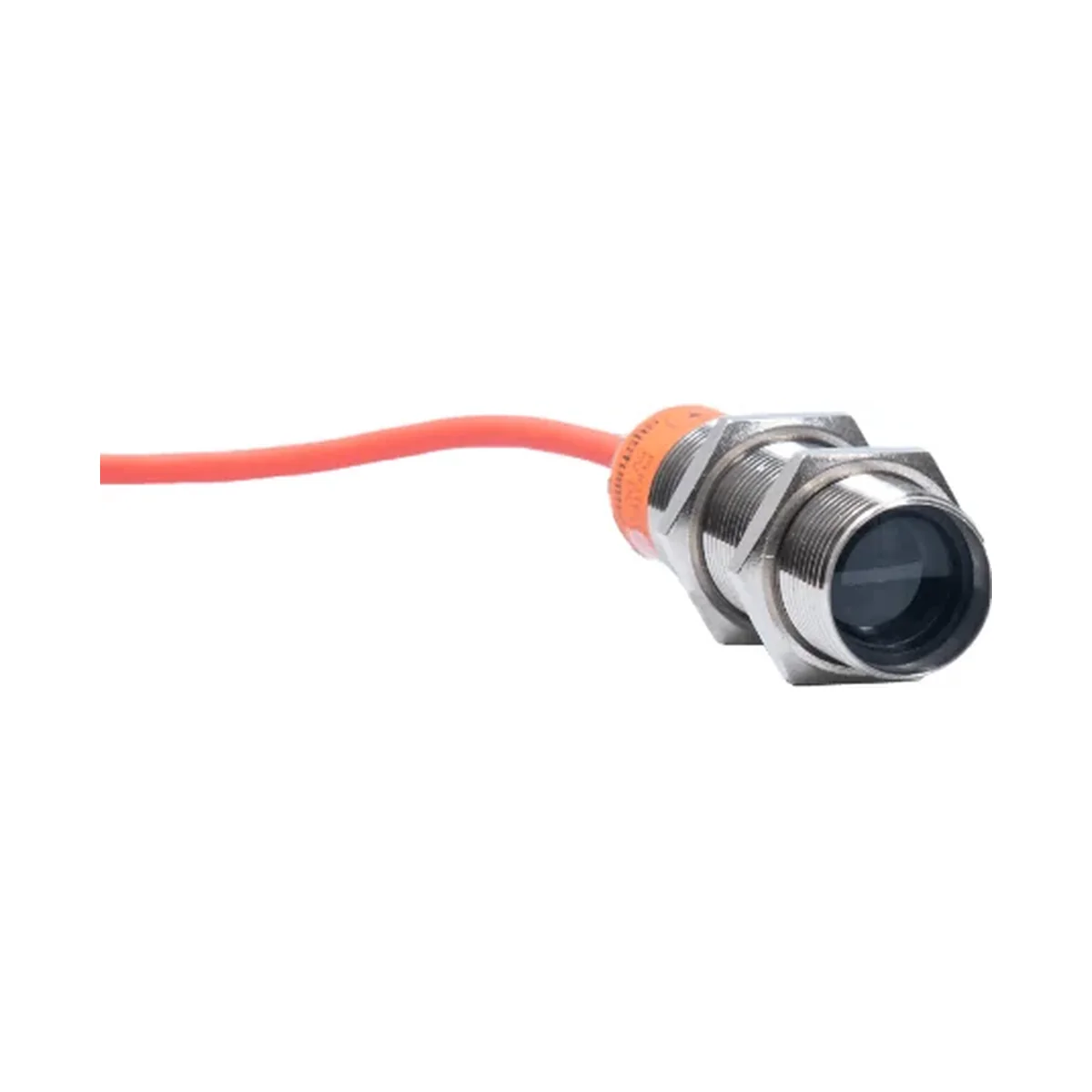

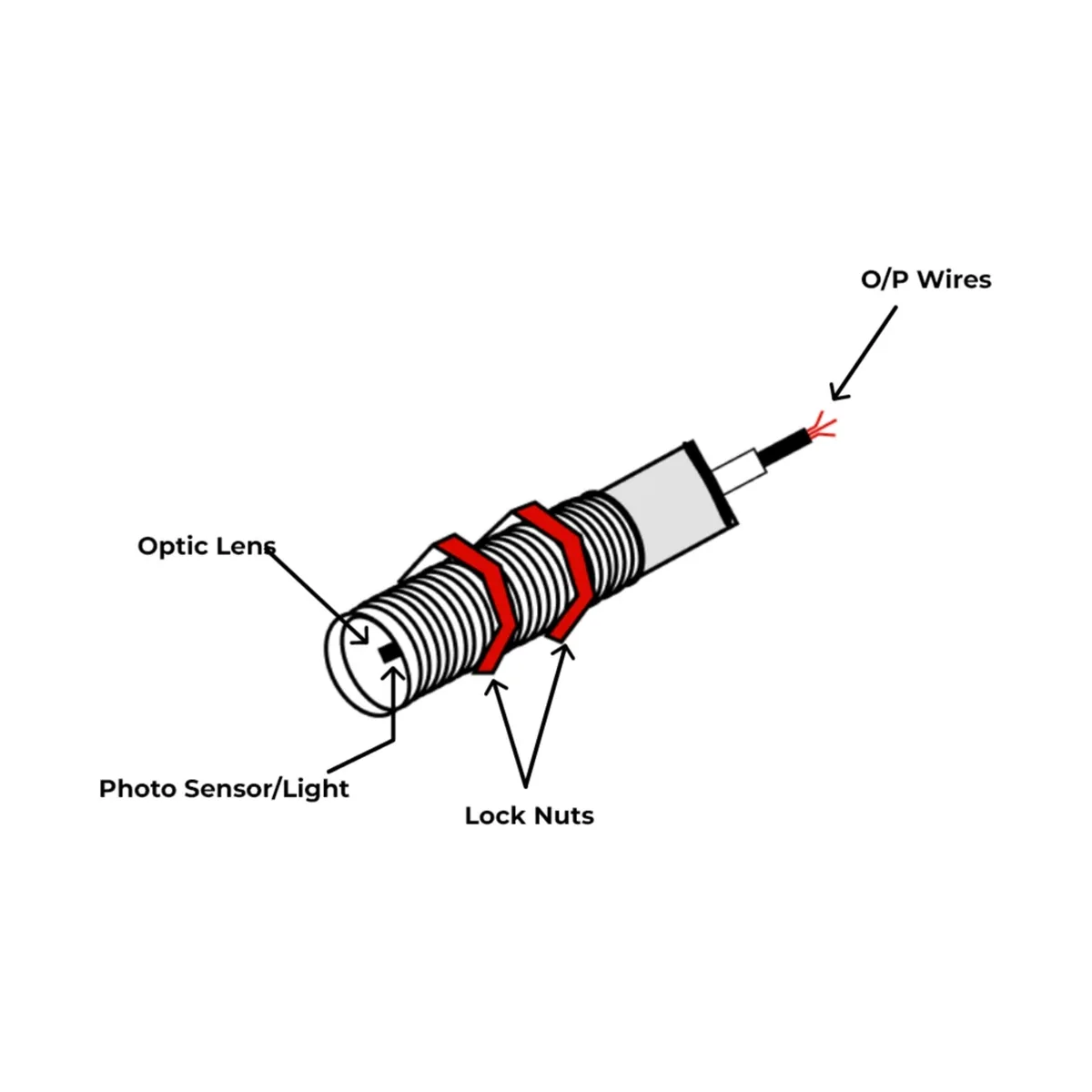

The Systems Tech photo-reflective sensor uses a bright light source, a lens and a photo receiver in a threaded chrome plated brass probe. The beam is aligned with a reflector applied to the rotating shaft or disc at a distance of 4 to 12 inches, and each pass of the reflector gives one pulse per revolution over a 3-wire cable. It is used with panel tachometers such as the TM-804 or any speed measuring system that accepts a digital pulse.
- Photo-reflective, 4 in to 12 in working distance
- 1 pulse per revolution

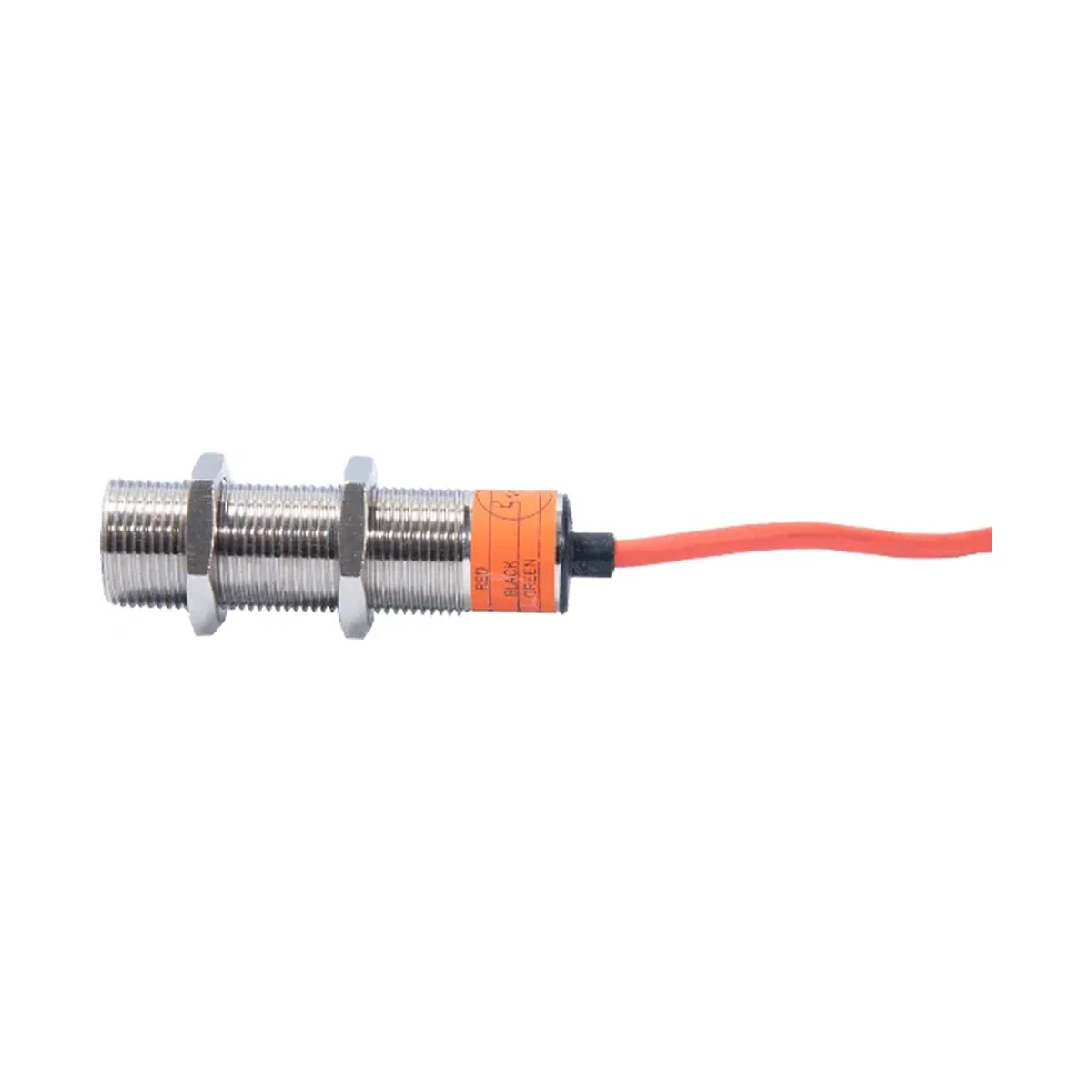

- Threaded M22 chrome plated brass probe
- Optical lens focuses the beam on the reflector
Specifications.
- Supply voltage
- 5 V DC (regulated)
- Supply current
- 125 mA
- Output type
- Digital pulse output, 3-wire
- Output pulse rate
- 1 PPR
- Output pulse amplitude
- +50 mV to 5 V
- Output frequency
- 20 kHz at 10,000 RPM
- Outlet cable
- 2 to 3 m, three cores with connector
- Sensing distance
- 4 in to 12 in from the reflector
- Mounting
- Face, two M22 locknuts
- Overall size
- Body dia 22 mm, length 75 mm
- Weight (approx.)
- 150 g
